Component Locations

COMPONENT LOCATIONS

Component Location
Power Window Relay Behind Dash, Above Left Kick Panel
Circuit Breaker Behind Left Side Of Dash

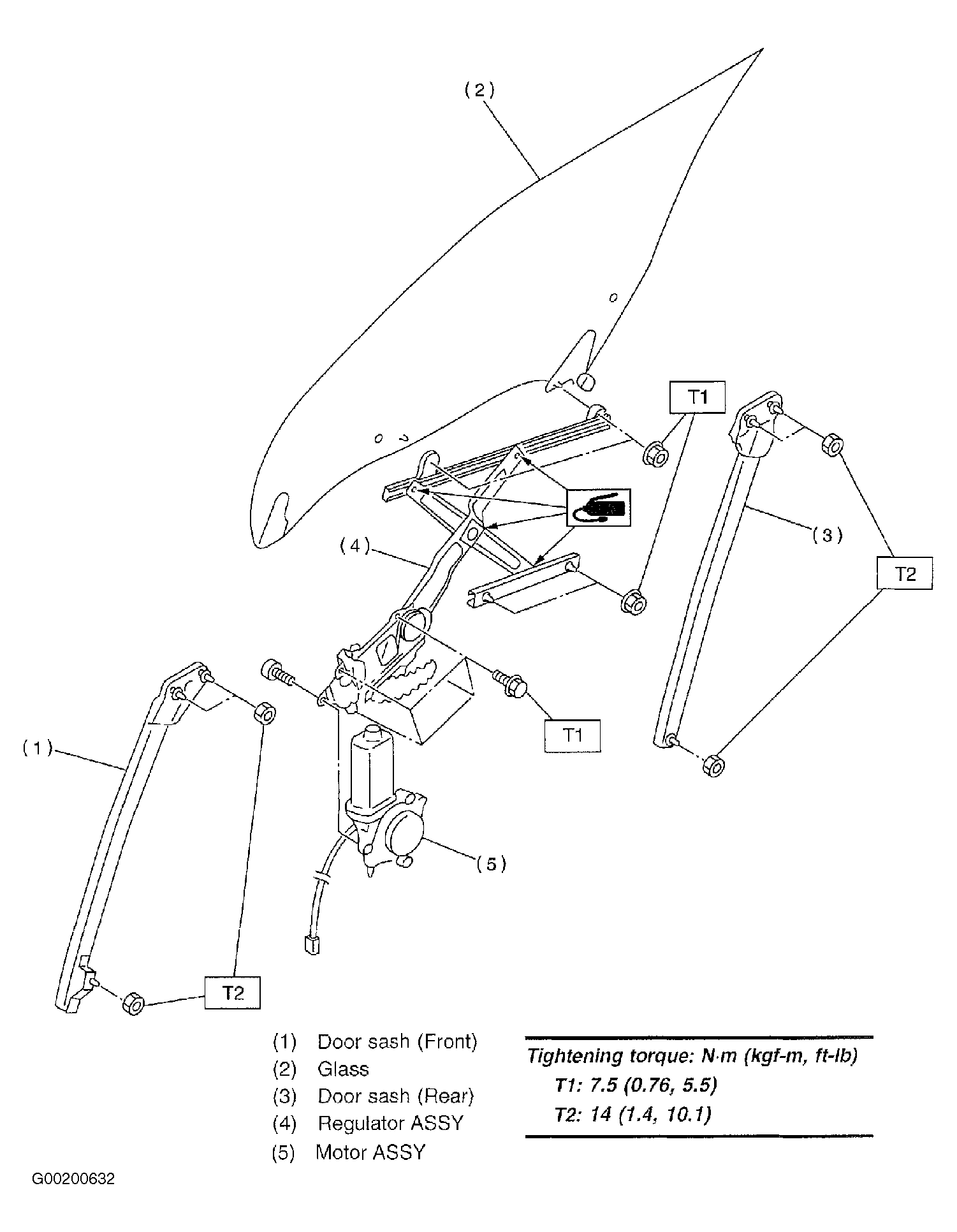

Fig 1: Exploded View Of Front Door Glass
G00200632Courtesy of SUBARU OF AMERICA, INC.

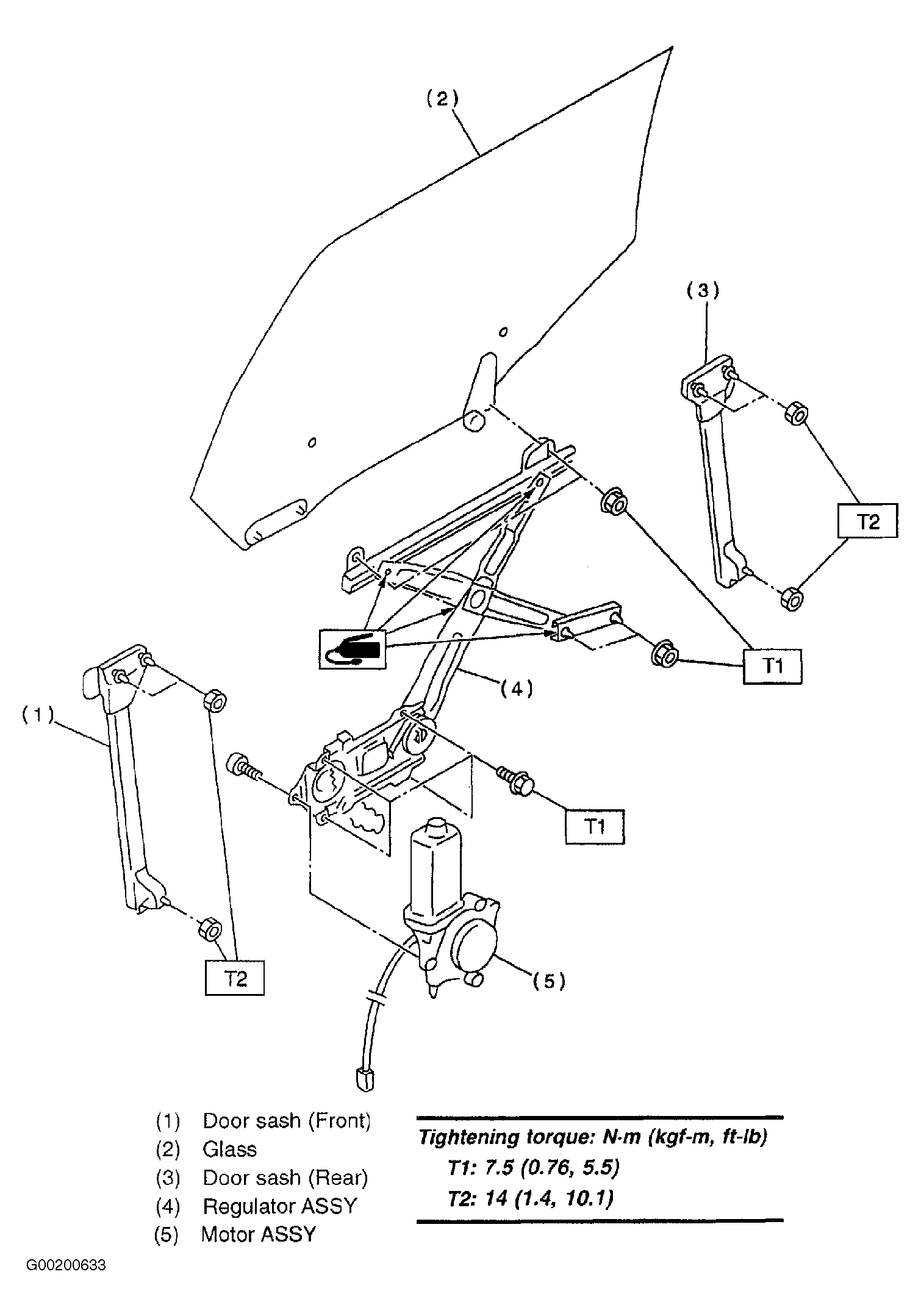

Fig 2: Exploded View Of Rear Door Glass
G00200633Courtesy of SUBARU OF AMERICA, INC.

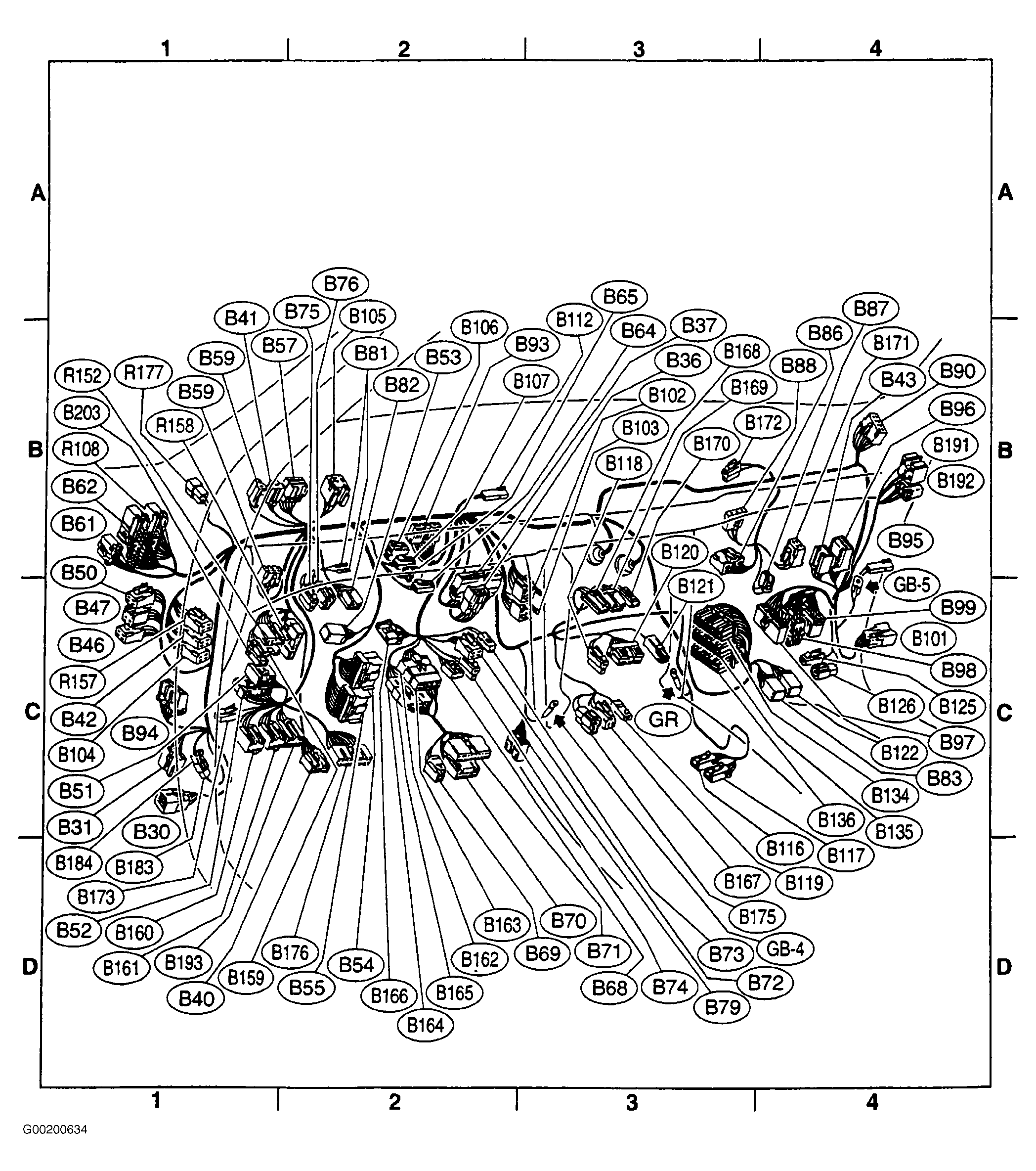

Fig 3: Locating Power Window Relay and Circuit Breaker (1 Of 2)
G00200634Courtesy of SUBARU OF AMERICA, INC.

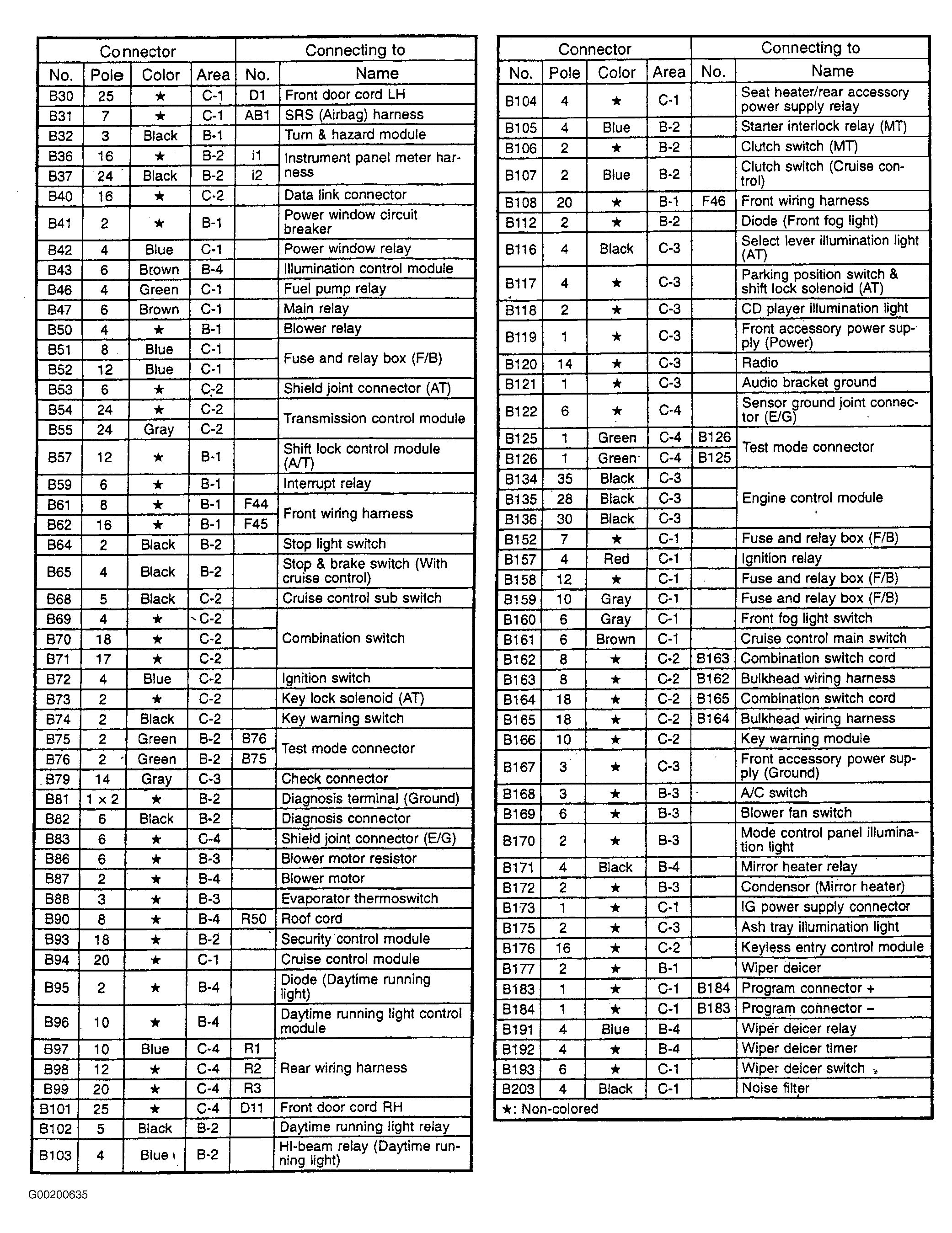

Fig 4: Locating Power Window Relay and Circuit Breaker (2 Of 2)
G00200635Courtesy of SUBARU OF AMERICA, INC.
