Power Window Control Switch: Sub-Switch

  1. Remove rear door trim. See DOOR TRIM  under REMOVAL & INSTALLATION.
  2. Remove screws and sub-switch. See Fig 1 .
  3. Install in reverse order of removal procedure.

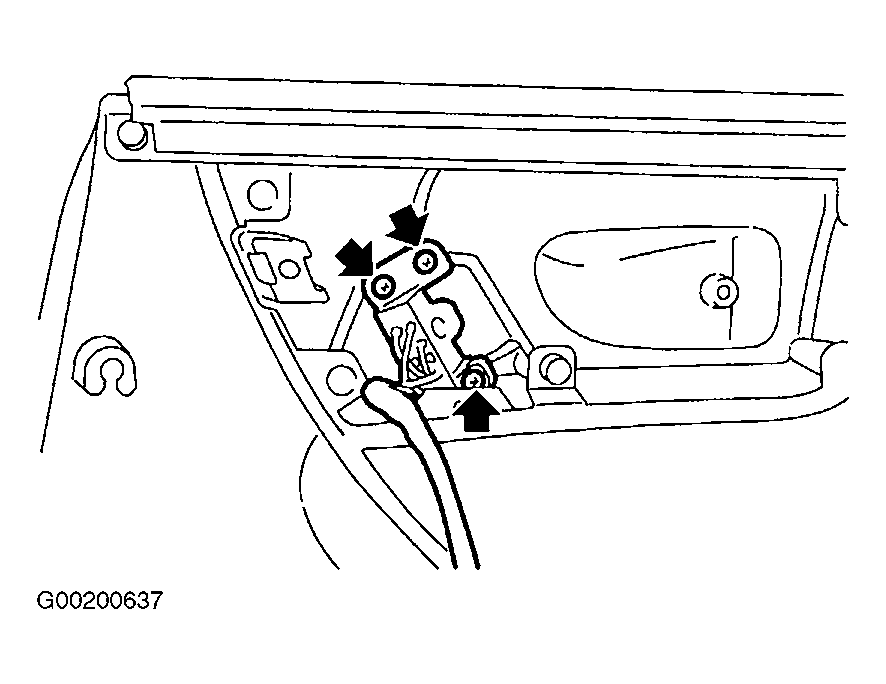

Fig 1: Removing Power Window Control Sub-Switch
G00200637Courtesy of SUBARU OF AMERICA, INC.
