Torque Specifications

TORQUE SPECIFICATIONS

Application (1) Specification: INCH Lbs. (Nm, kgf-m)
Regulator ASSY Nuts & Bolts (T1) 66.38 (7.5, 0.7.6)
Door Sash (Rear) Nuts (T2) 123.91 (14, 1.4)

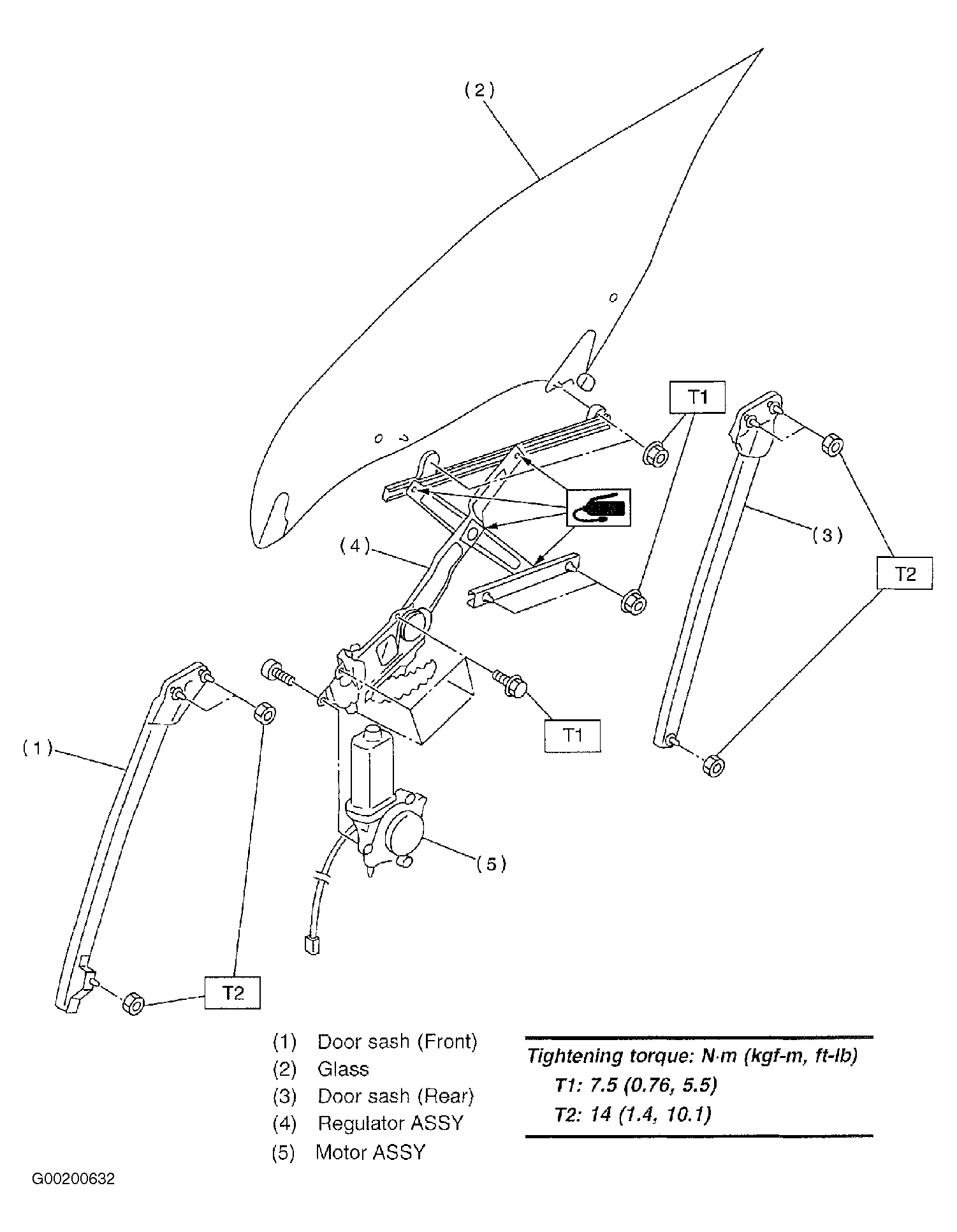

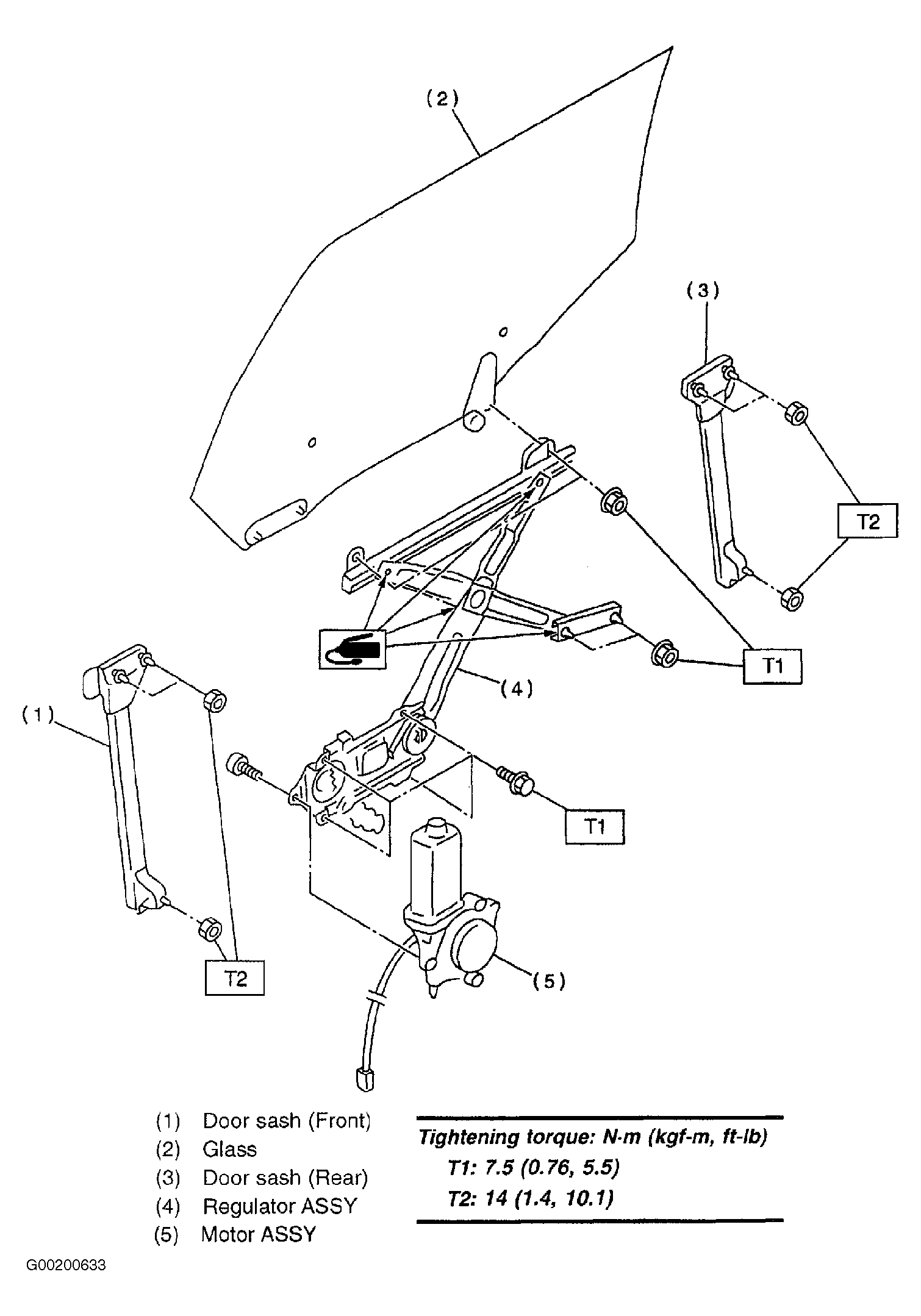

(1) For component locations, see Figure & Figure .
