With SUBARU Select Monitor

CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM&H/U) connector during removal and installation.
NOTE:
  • To check harness for broken wires or short circuits, shake it while holding it or the connector.
  • Check list for interview. Refer to CHECK LIST FOR INTERVIEW  .

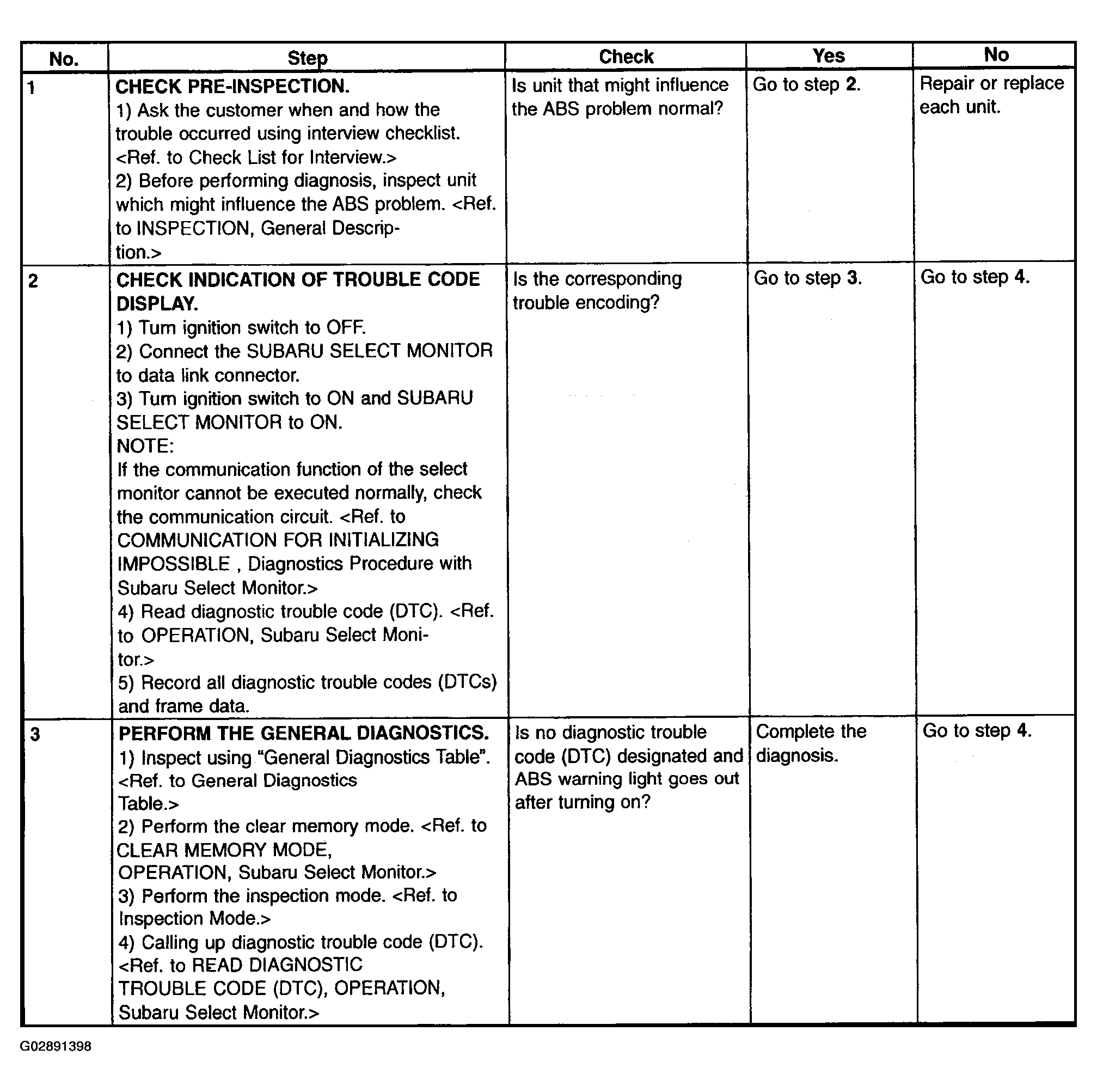

Fig 1: Identifying Diagnostic Procedure (1 Of 2)
G02891398Courtesy of SUBARU OF AMERICA, INC.

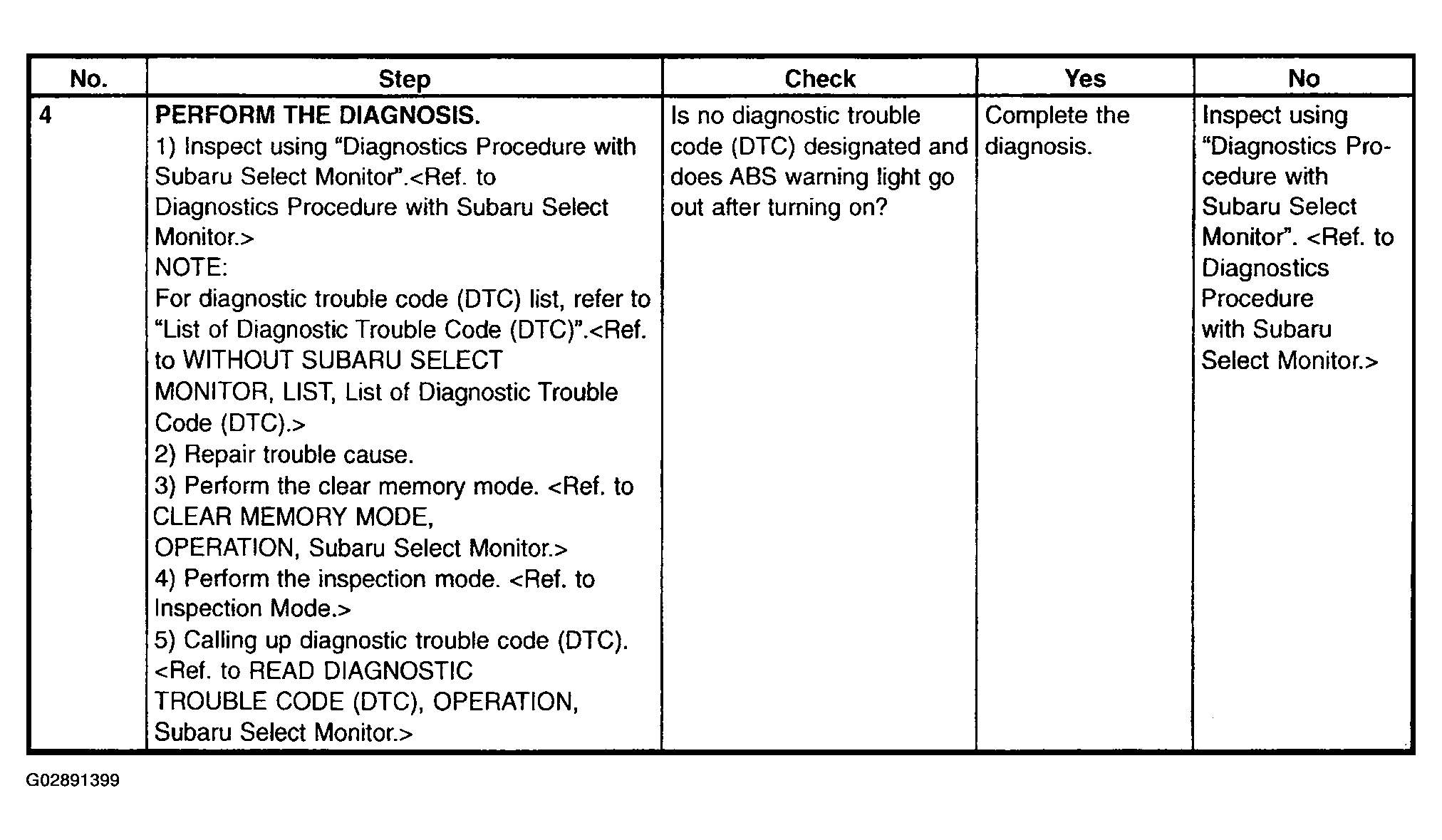

Fig 2: Identifying Diagnostic Procedure (2 Of 2)
G02891399Courtesy of SUBARU OF AMERICA, INC.
