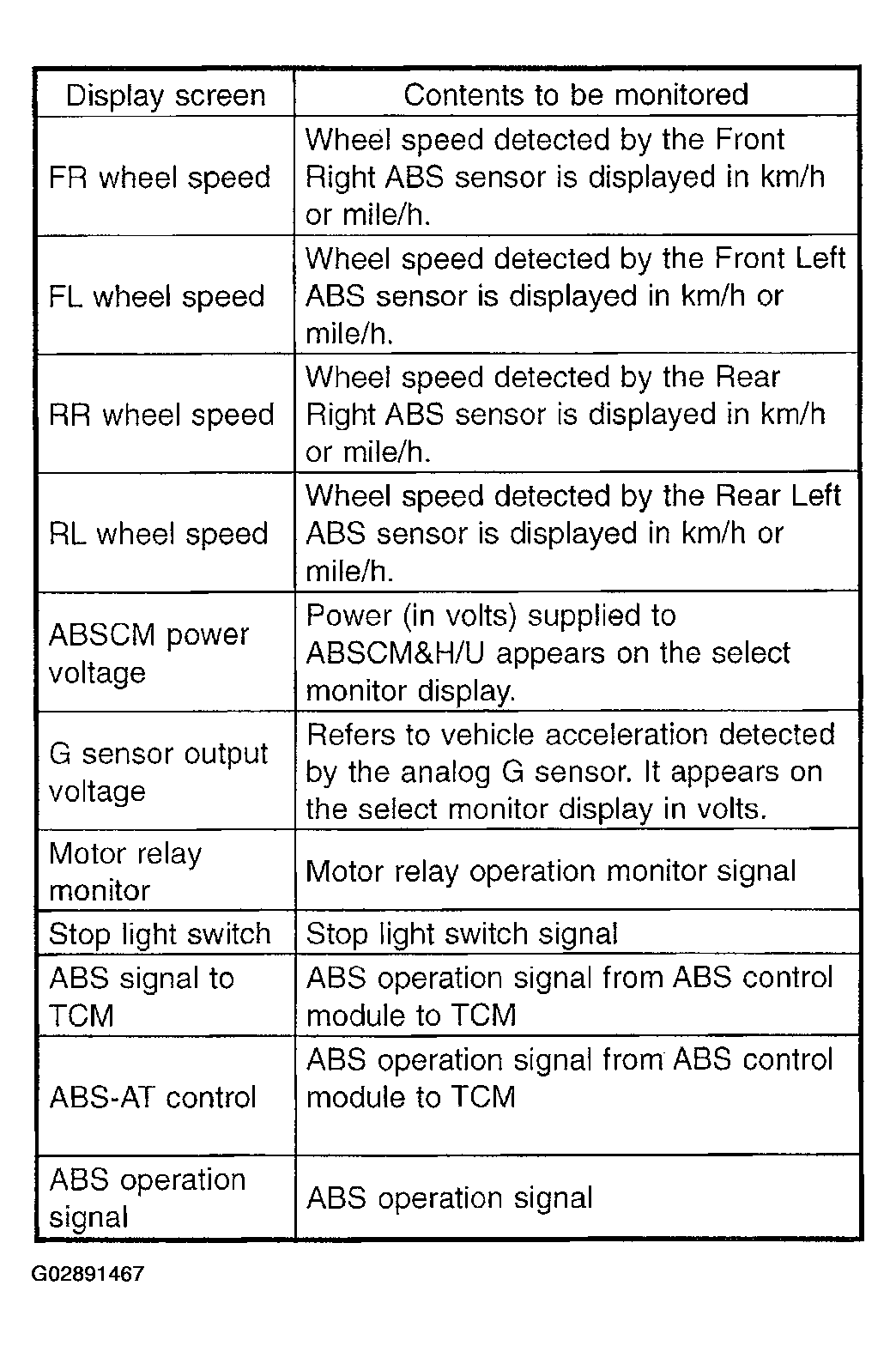

Freeze Frame Data
NOTE:
- Data stored at the time of trouble occurrence is shown on display.
- Each time trouble occurs, the latest information is stored in the freeze frame data in memory.>
- If freeze frame data is not properly stored in memory (due to a drop in ABSCM power supply, etc.), a diagnostic trouble code (DTC), preceded by a question mark "?", appears on the select monitor display. This shows it may be an unreliable reading.
