ABS Control Module and Hydraulic Control Unit (ABSCM & H/U): Inspection: Notes

  1. Check connected and fixed condition of connector.
  2. Check specifications of the mark with ABSCM & H/U.
    MARK SPECIFICATIONS

    Mark Model
    C7 AT
    C8 MT

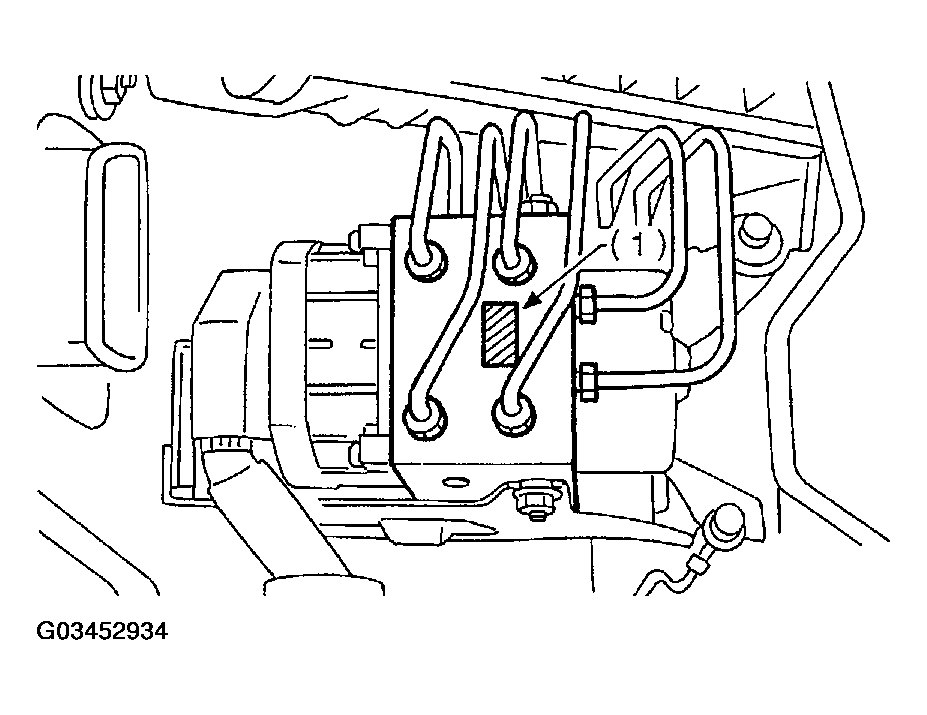

    Fig 1: Identifying Mark
    G03452934Courtesy of SUBARU OF AMERICA, INC.
