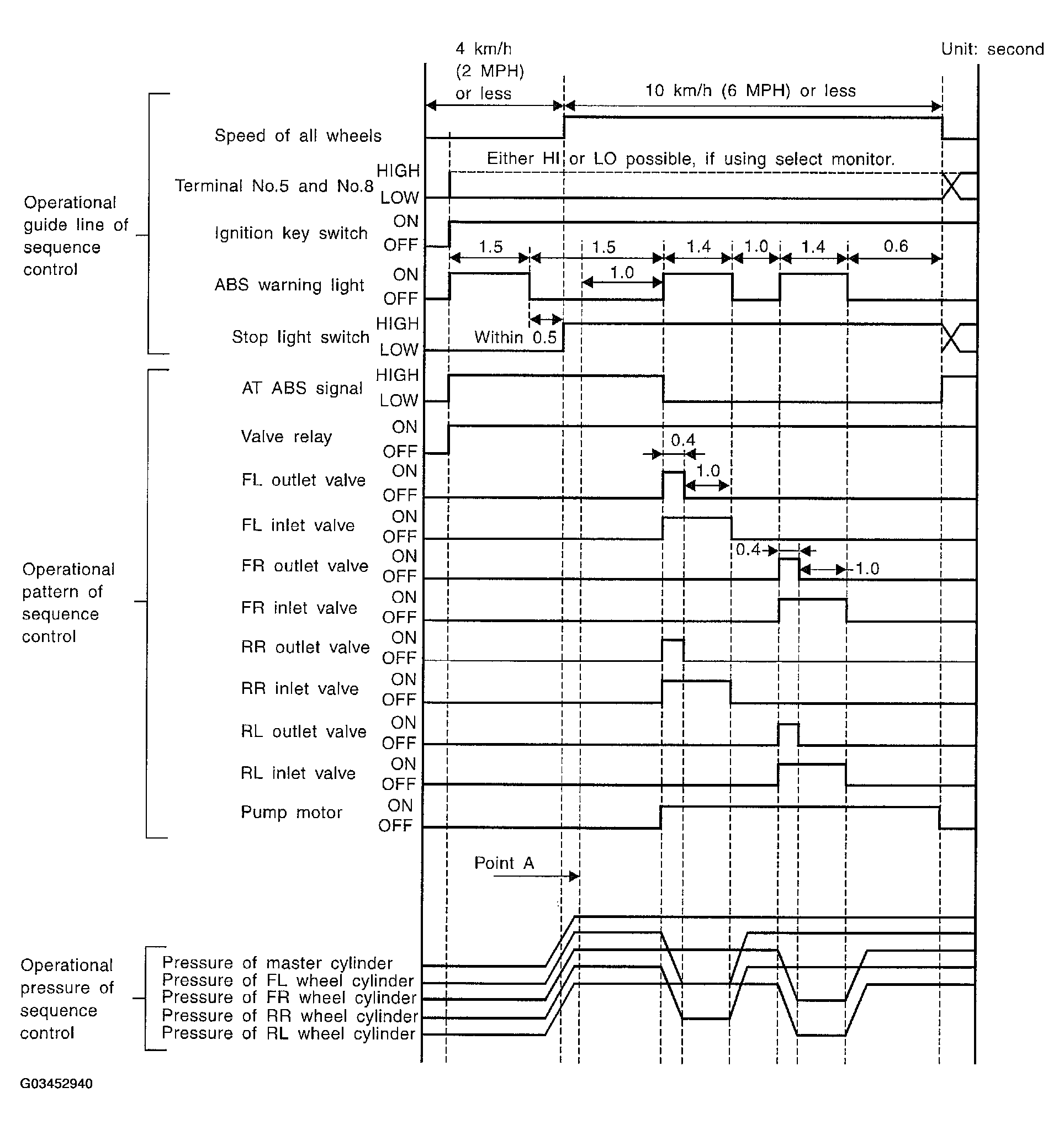

Conditions For Abs Sequence Control
Courtesy of SUBARU OF AMERICA, INC.
NOTE:
- When select monitor is used, control operation starts at point A. The patterns from IGN key ON to the point A show that operation is started by diagnosis connector.
- HIGH means high voltage.
- LOW means low voltage.
