Abs Sensor

Check pole piece of ABS sensor for foreign particles or damage. If necessary, clean pole piece or replace ABS sensor.
Measure ABS sensor resistance.

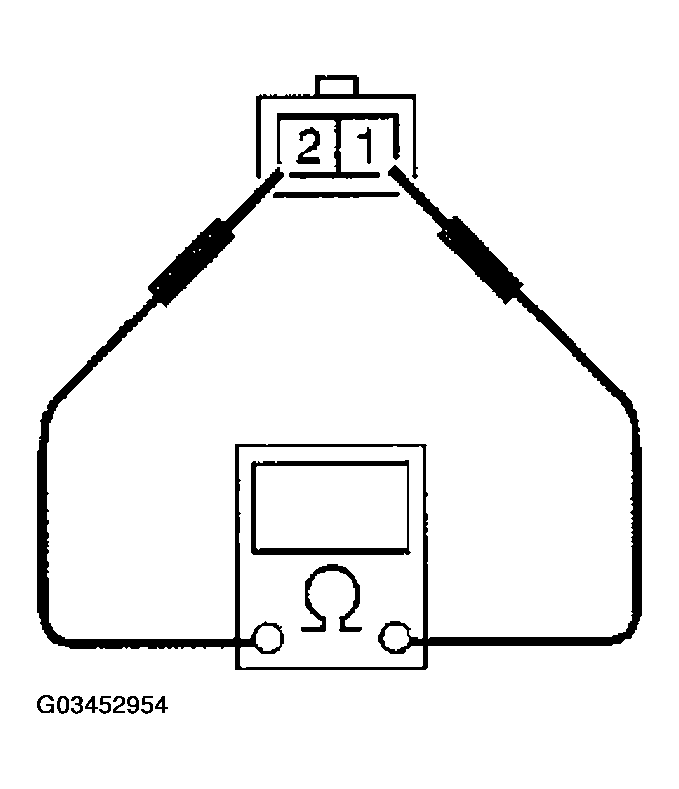

Fig 1: Measuring ABS Sensor Resistance
Courtesy of SUBARU OF AMERICA, INC.

TERMINAL SPECIFICATIONS

Terminal No.	Standard
1 and 2	1.0+/-0.2 kohm

CAUTION: If resistance is outside the standard value, replace ABS sensor with new one.

NOTE: Check ABS sensor cable for discontinuity. If necessary, replace with a new one.
