Sensor Gap

Clearances (sensor gaps) should be measured one by one to ensure tone wheel and speed sensor are installed correctly.

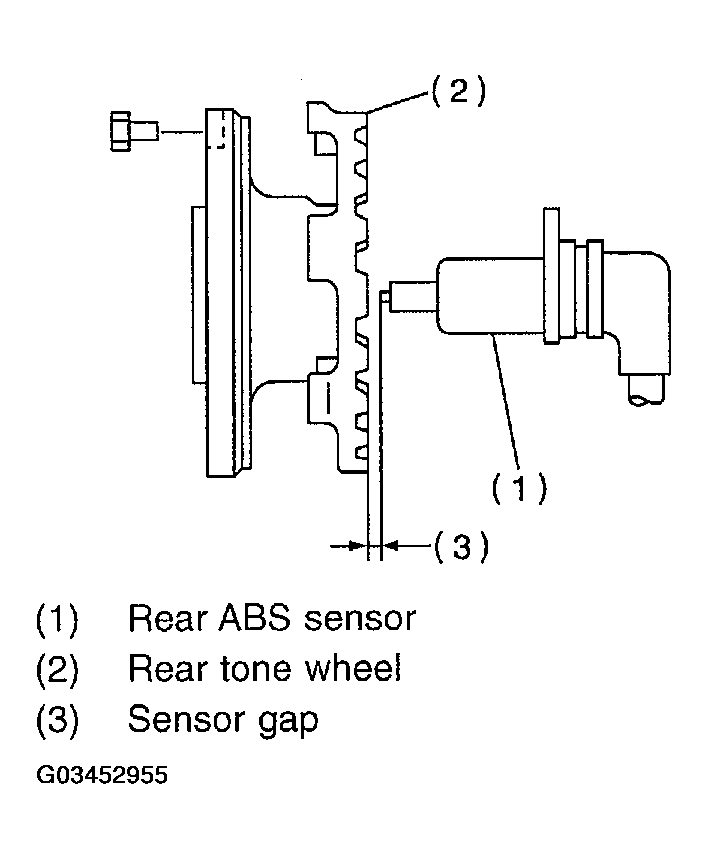

Fig 1: Identifying Sensor Gap Dimensions

Courtesy of SUBARU OF AMERICA, INC.

ABS sensor clearance:

NOTE:

If clearance is narrow, adjust by using a spacer (Part No. 26755AA000).
If clearance is wide, check the outputted voltage then replace ABS sensor or tone wheel if the out-putted voltage is outside the specification.
