Bench Testing: Stator

Ensure continuity is not present between stator coil leads and stator core. If continuity exists, replace stator. Continuity should be present between leads of stator coil. If continuity does not exist, replace stator.

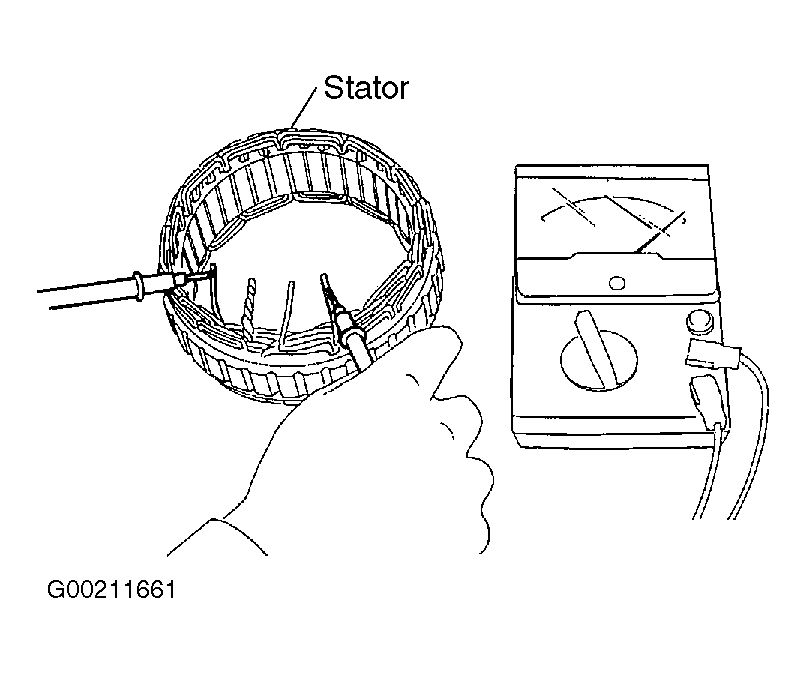

Fig 1: Inspecting Stator Coil For Continuity Between Each End Of Lead Wires

Courtesy of SUBARU OF AMERICA, INC.

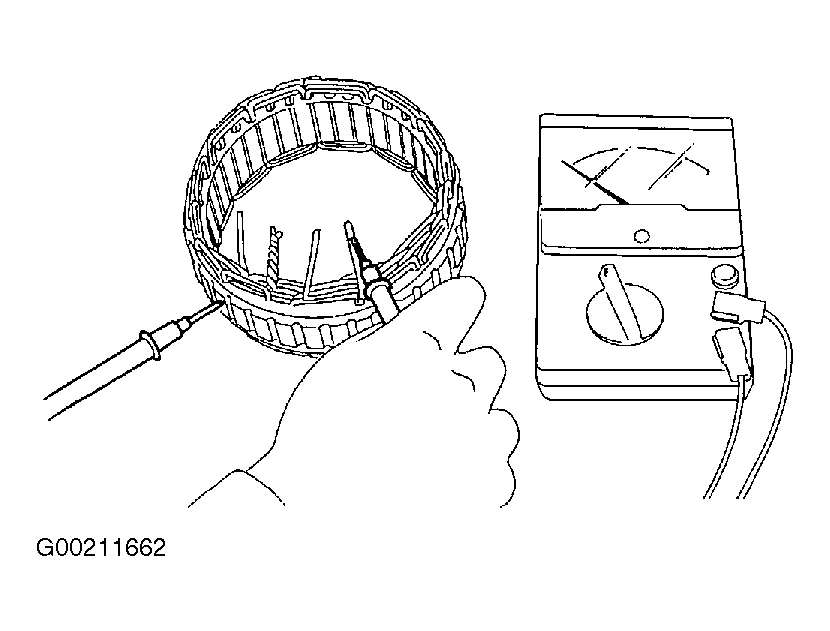

Fig 2: Inspecting Stator Coil For Continuity Between Stator Core & Each Lead Wires

Courtesy of SUBARU OF AMERICA, INC.
