Repair and Diagnosis: Electrical: Starters: Overhaul: Starter: Disassembly

For starter diassembly, see Fig 1 and Fig 2 .

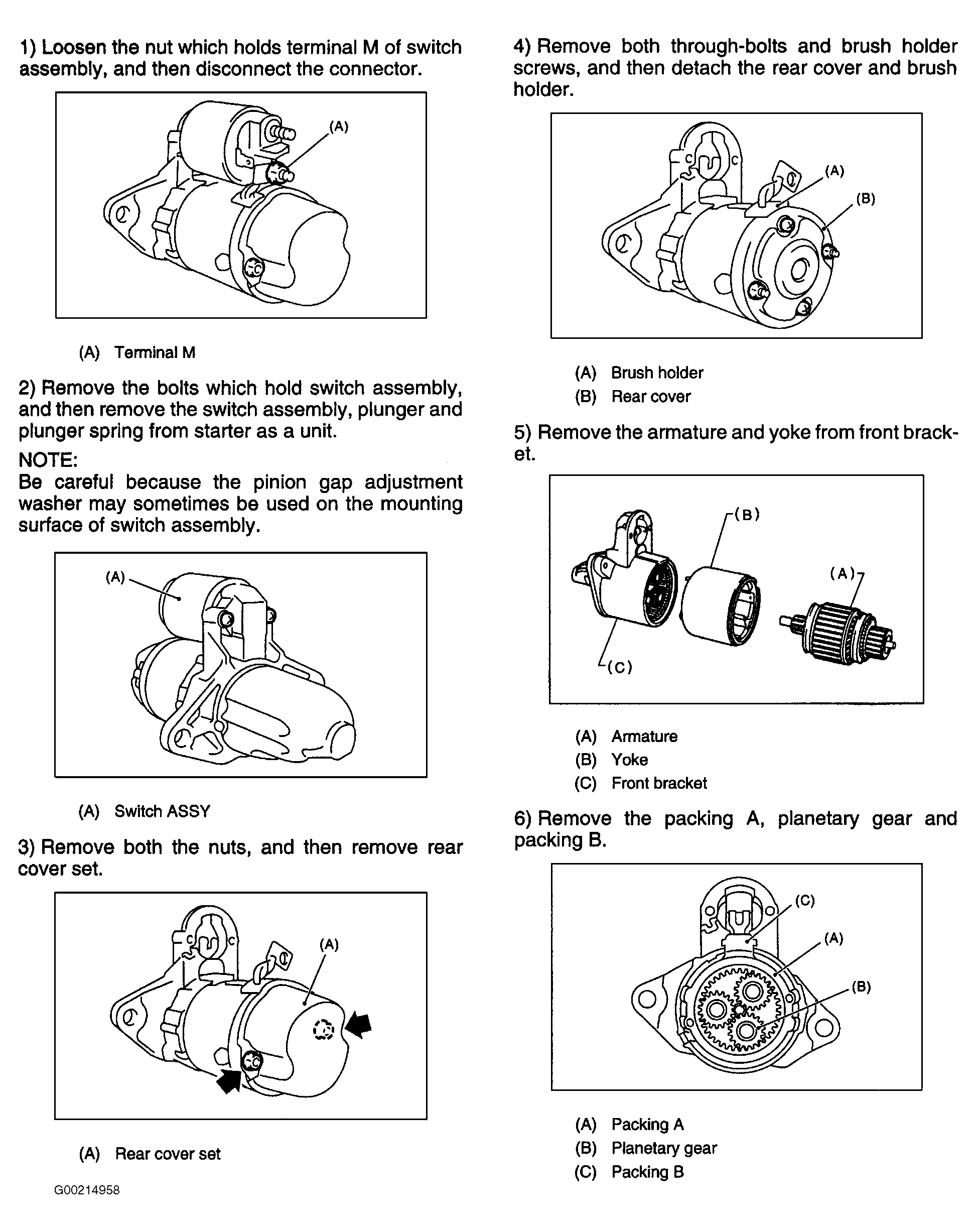

Fig 1: Disassembling Starter Motor (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

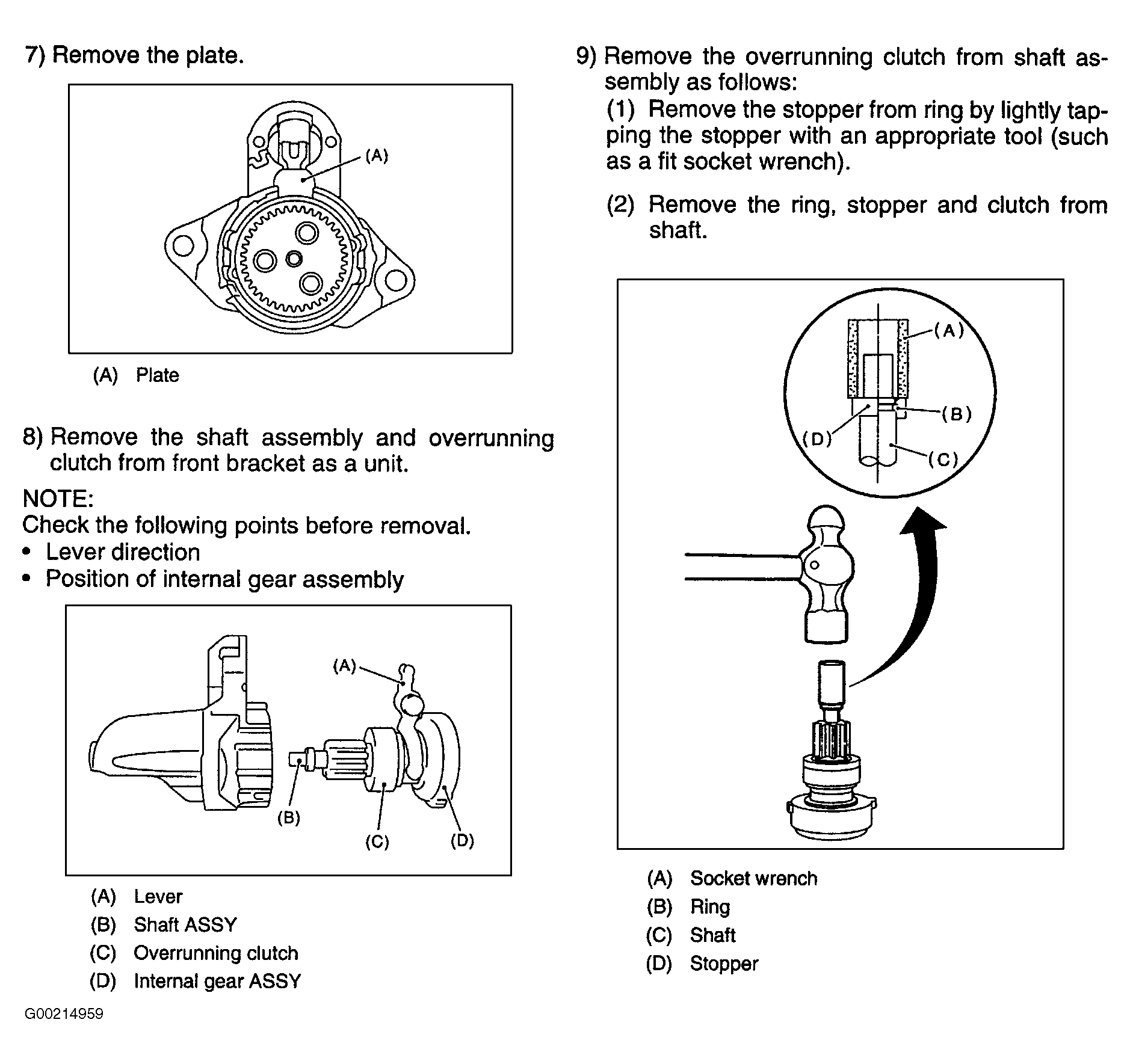

Fig 2: Disassembling Starter Motor (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
