Removal & Installation: Starter: Removal

Disconnect ground cable from battery.
Remove air cleaner case. See AIR CLEANER CASE .
Remove air cleaner case stay. See Fig 1 .
Disconnect connector and terminal from starter. See Fig 2 .
Remove starter from transmission. See Fig 3 .

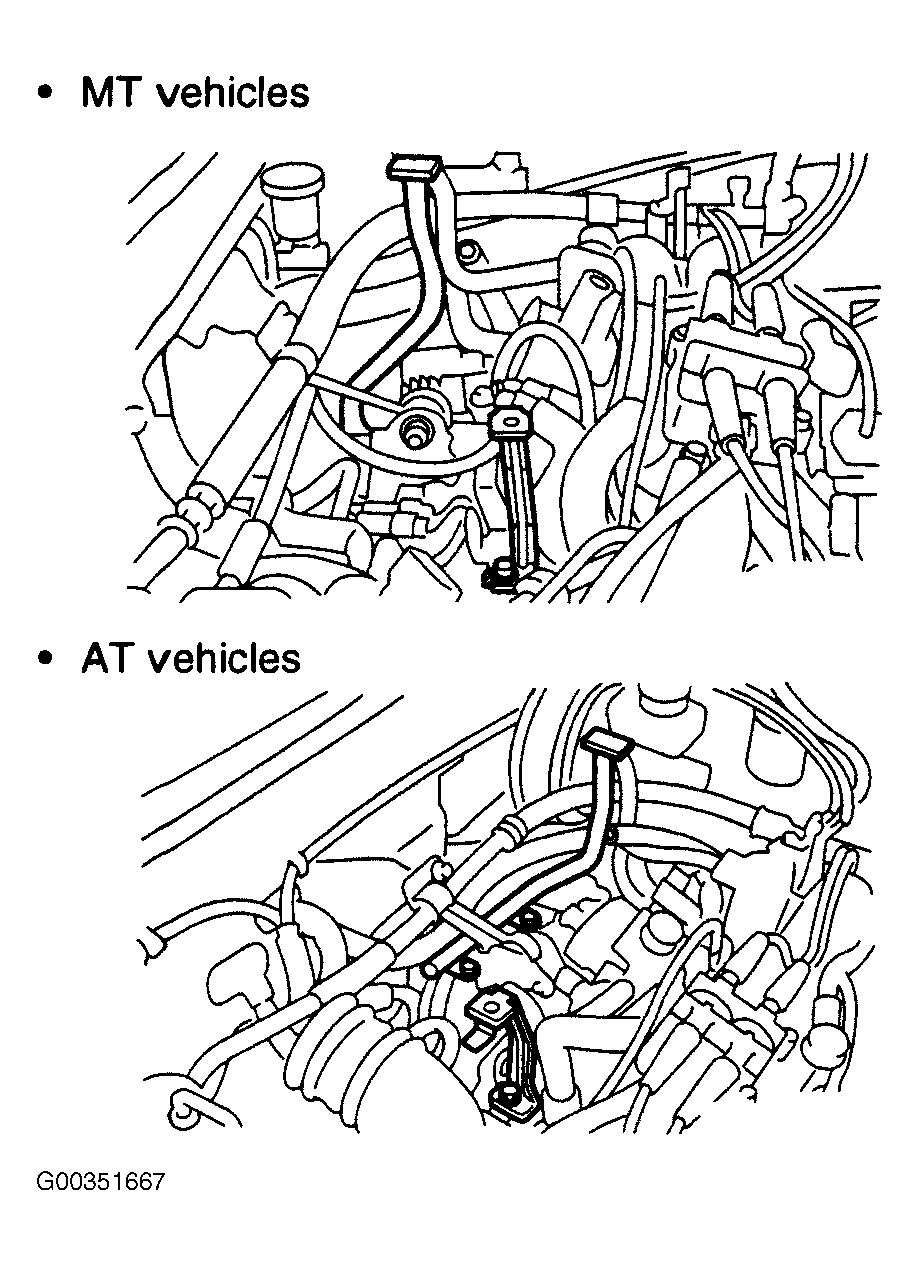

Fig 1: Removing Air Cleaner Case Stay

G00351667

Courtesy of SUBARU OF AMERICA, INC.

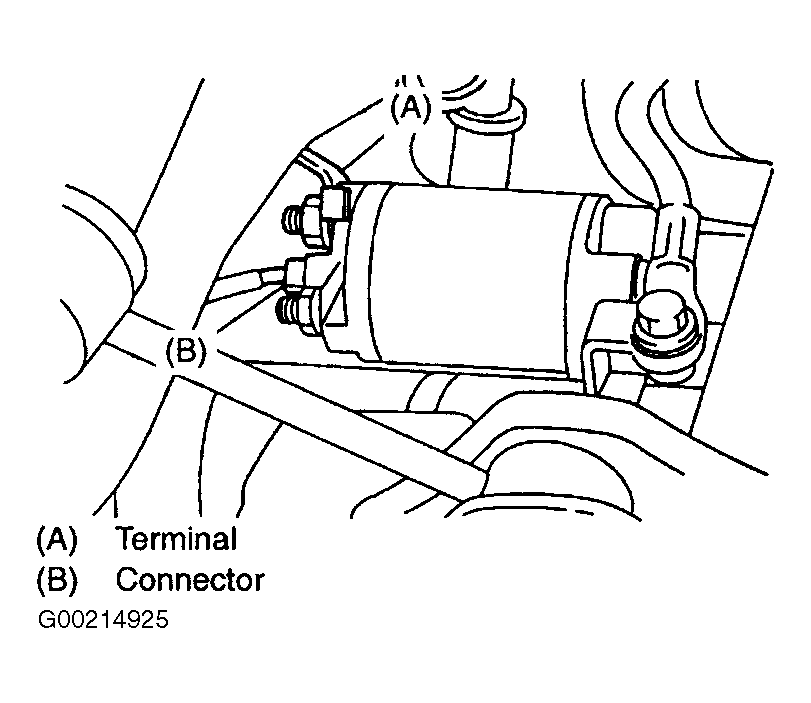

Fig 2: Disconnecting Connector & Terminal

G00214925

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Removing Starter From Transmission

G00214926

Courtesy of SUBARU OF AMERICA, INC.
