Starter Specifications
NOTE:

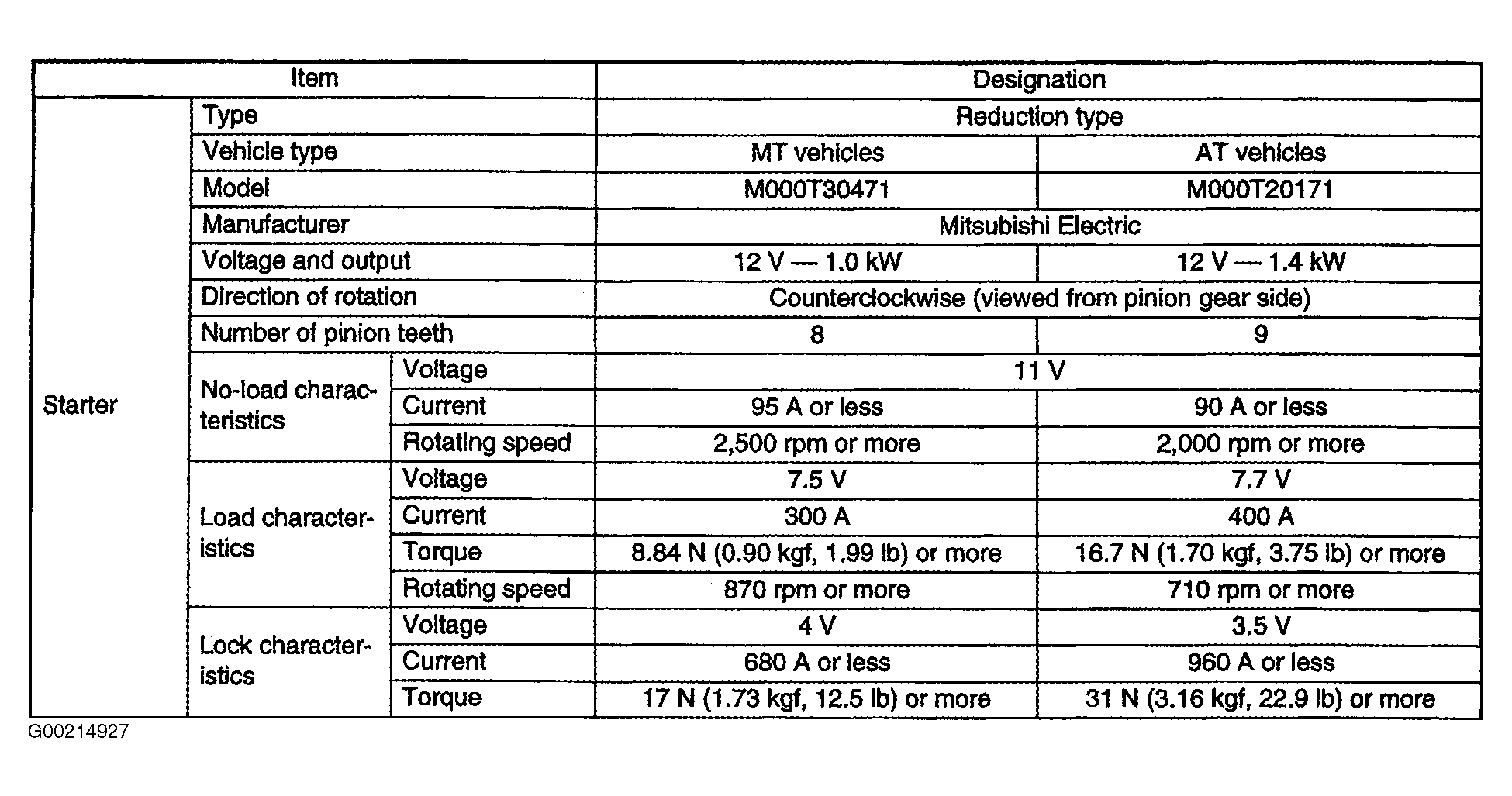

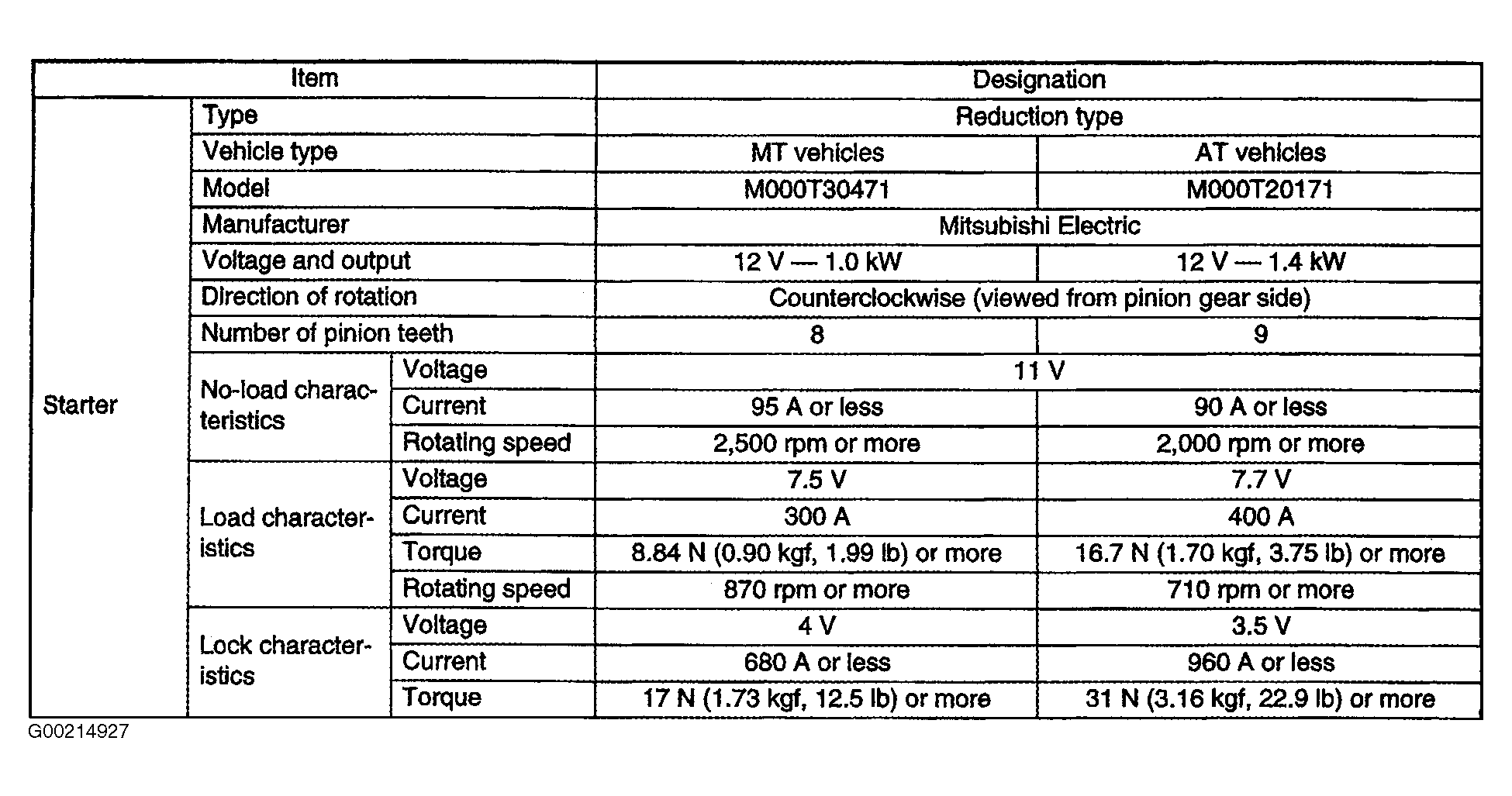

For additional starter specifications, see Fig 1
.
STARTER SPECIFICATIONS
| Application | Specifications | |
|---|---|---|
| Brush Length | ||
| Standard | .484" (12.3 mm) | |
| Limit | .276" (7 mm) | |
| Brush Spring Force | ||
| Standard (New) | 3.57-4.38 Lbs (15.9-19.5 N) | |
| Limit | .56 Lbs (2.5 N) | |
| Commutator Run-Out | ||
| Standard | .002" (.05 mm) | |
| Service Limit | Less than .0039" .10 mm) | |
| Depth Of Segment Mold | .02" (.5 mm) | |
