Front Exhaust Pipe: Installation

Install front exhaust pipe to center exhaust pipe.
NOTE: Replace gaskets with new ones.

Tightening torque: 30 Nm (3.1 kgf-m, 22.4 ft-lb)

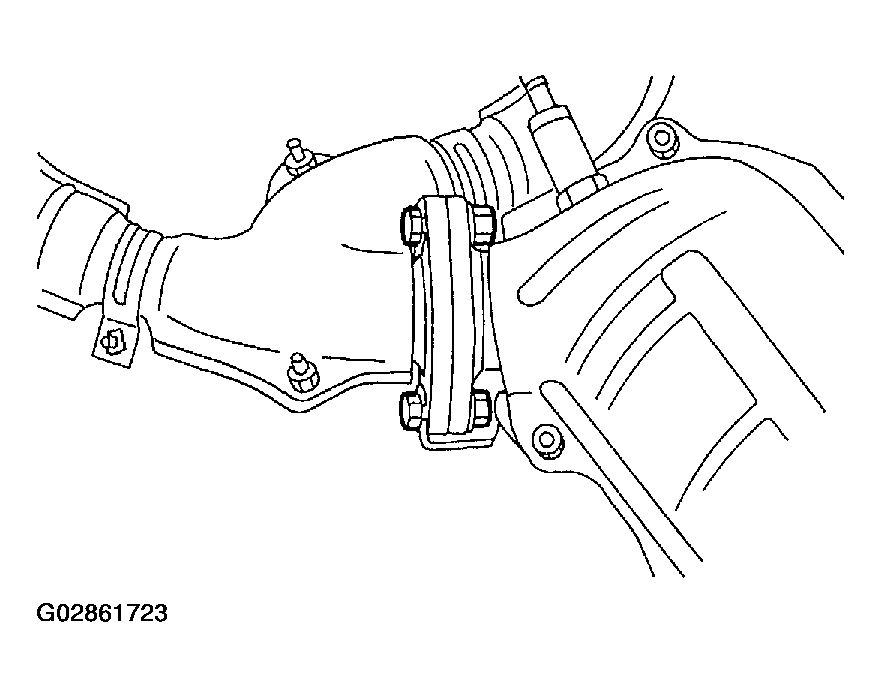

Fig 1: Installing Front Exhaust Pipe To Center Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install front and center exhaust pipe assembly to the vehicle.
Temporarily tighten bolt which installs front and center exhaust pipe assembly to hanger bracket.

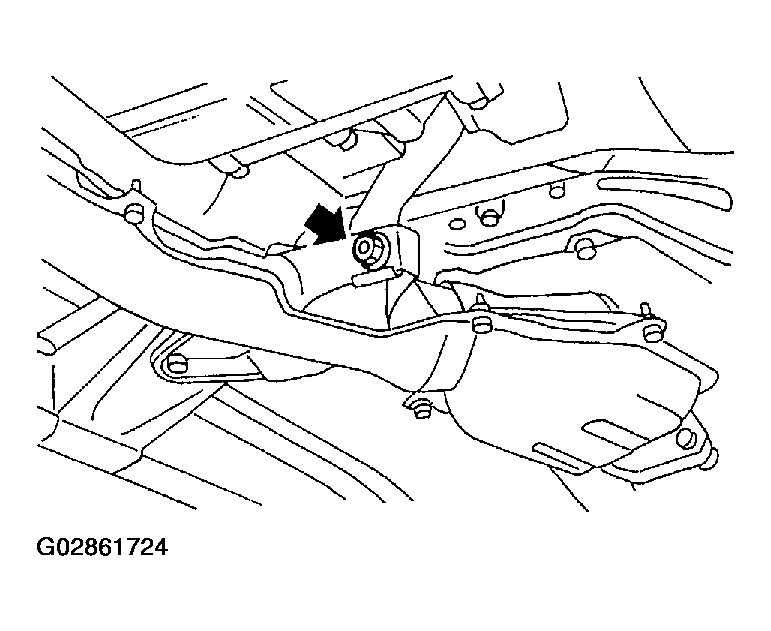

Fig 2: Tightening Bolt Which Installs Front And Center Exhaust Pipe Assembly To Hanger Bracket
Courtesy of SUBARU OF AMERICA, INC.
Tighten bolts which hold front exhaust pipe onto cylinder heads.
Tightening torque: 30 N.m (3.1 kgf-m, 22.4 ft-lb)

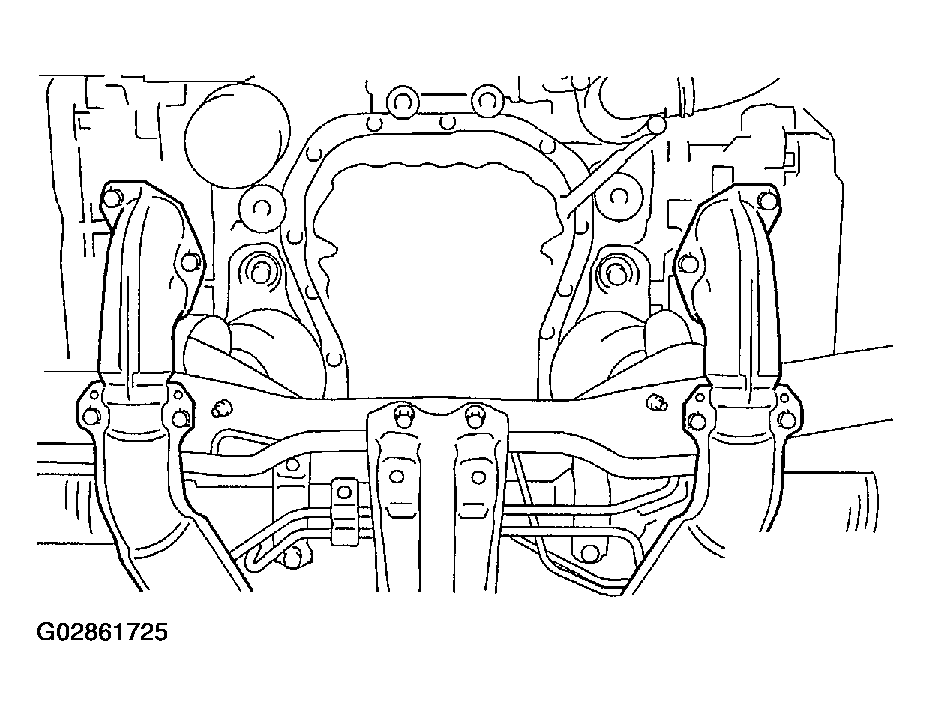

Fig 3: Tightening Bolts Which Hold Front Exhaust Pipe Onto Cylinder Heads
Courtesy of SUBARU OF AMERICA, INC.
Tighten bolts which install front and center exhaust pipe assembly to rear exhaust pipe.
Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

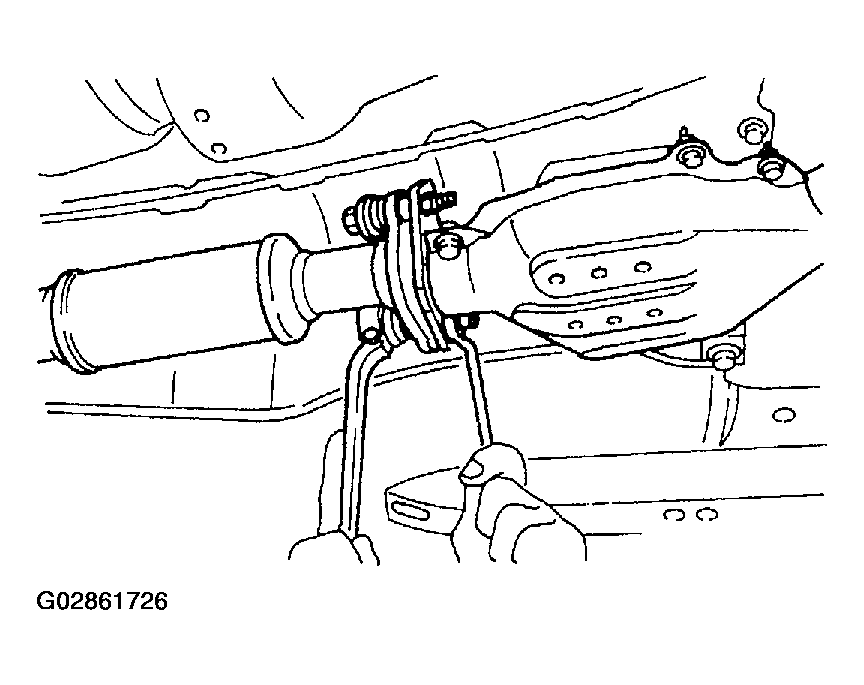

Fig 4: Tightening Bolts Which Install Front And Center Exhaust Pipe Assembly To Rear Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Tighten bolt which holds front and center exhaust pipe assembly to hanger bracket.
Tightening torque: 35 N.m (3.6 kgf-m, 26.0 ft-lb)

Fig 5: Tightening Bolt Which Holds Front And Center Exhaust Pipe Assembly To Hanger Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install under cover. Refer to FRONT UNDER COVER .
Connect rear oxygen sensor connector.

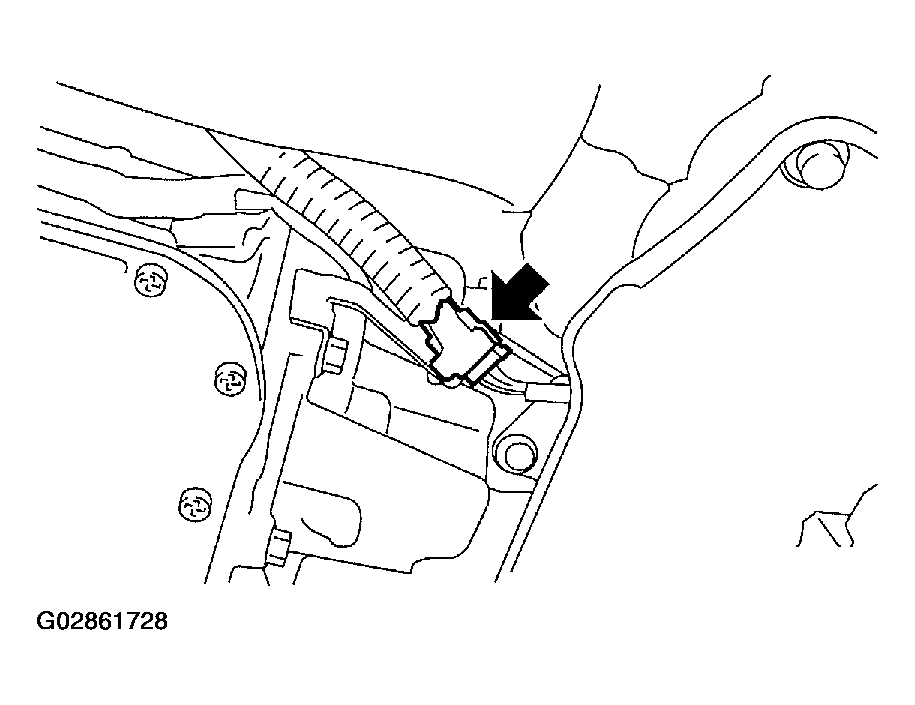

Fig 6: Connecting Rear Oxygen Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Connect front oxygen (A/F) sensor connector.

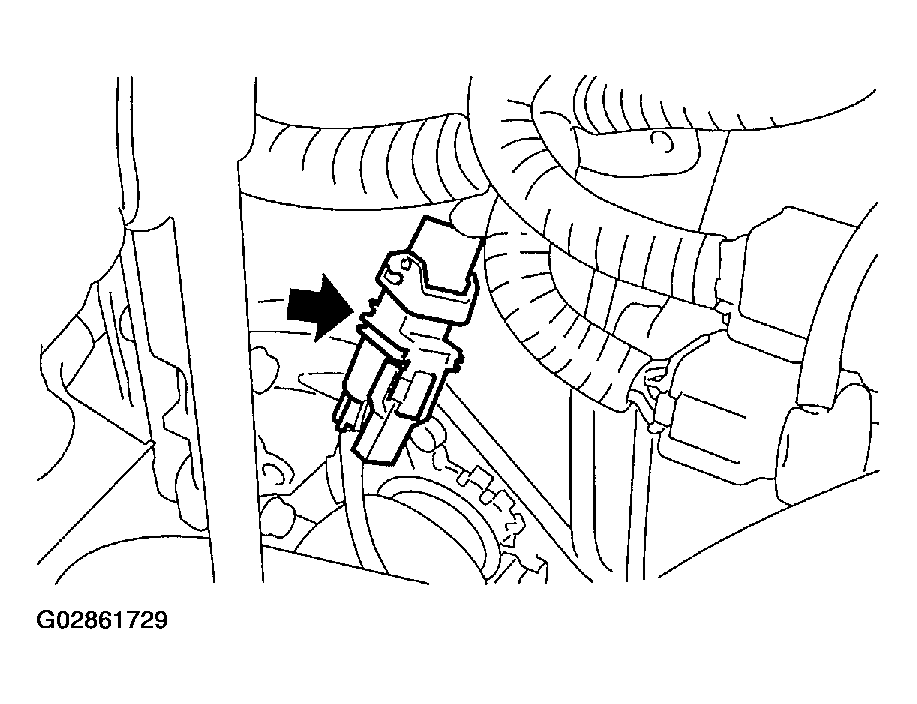

Fig 7: Connecting Front Oxygen (A/F) Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Connect battery ground cable.

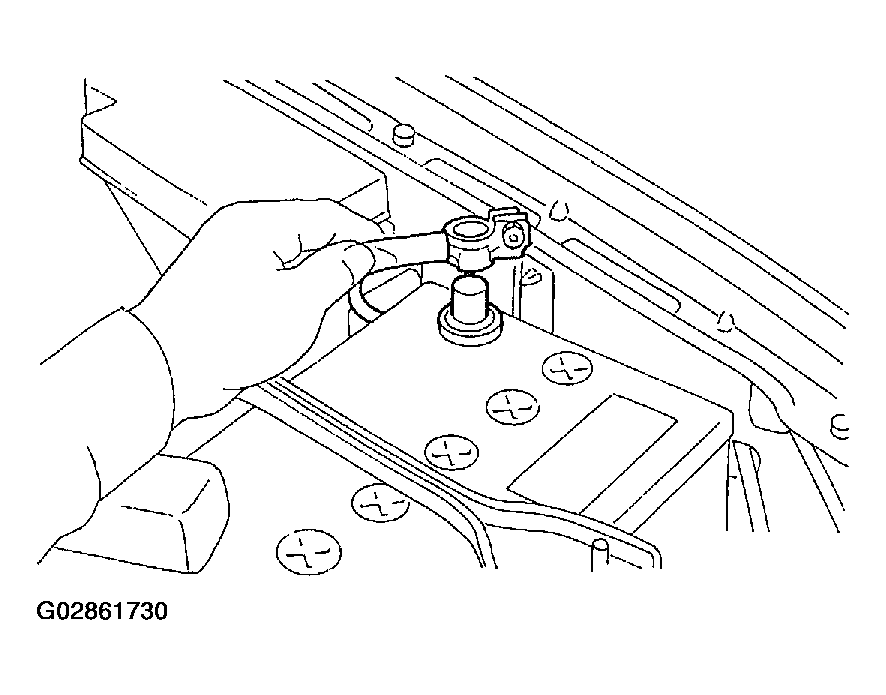

Fig 8: Connecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
