Engine Mechanical: Exhaust: General Description: Components

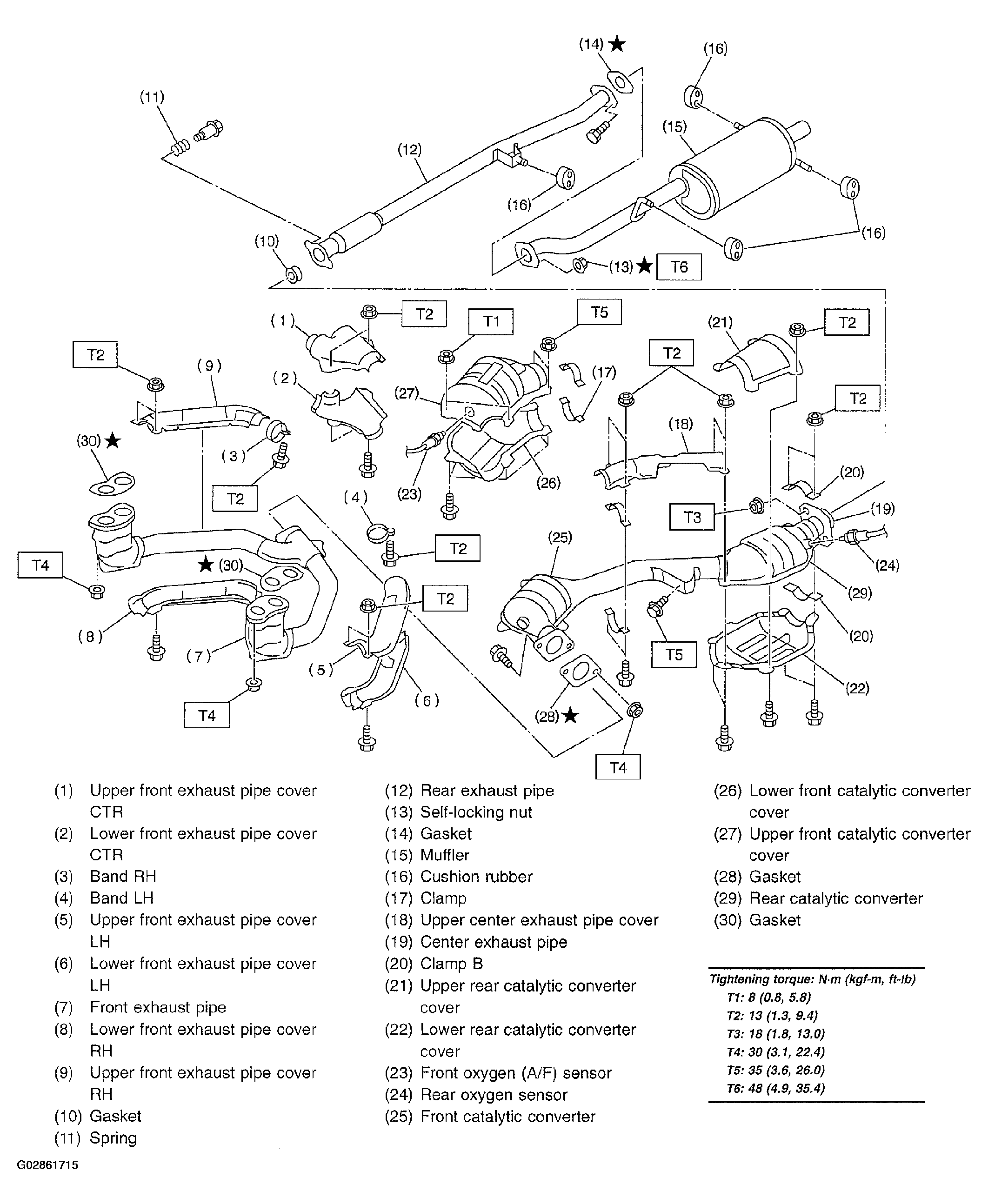

Fig 1: Identifying Exhaust System Components
G02861715Courtesy of SUBARU OF AMERICA, INC.
