Engine Oil Cooler: Installation

Install in the reverse order of removal.

Tightening torque: T: 55 N.m (5.6 kgf-m, 40.5 ft-lb)

NOTE: Always use a new O-ring.

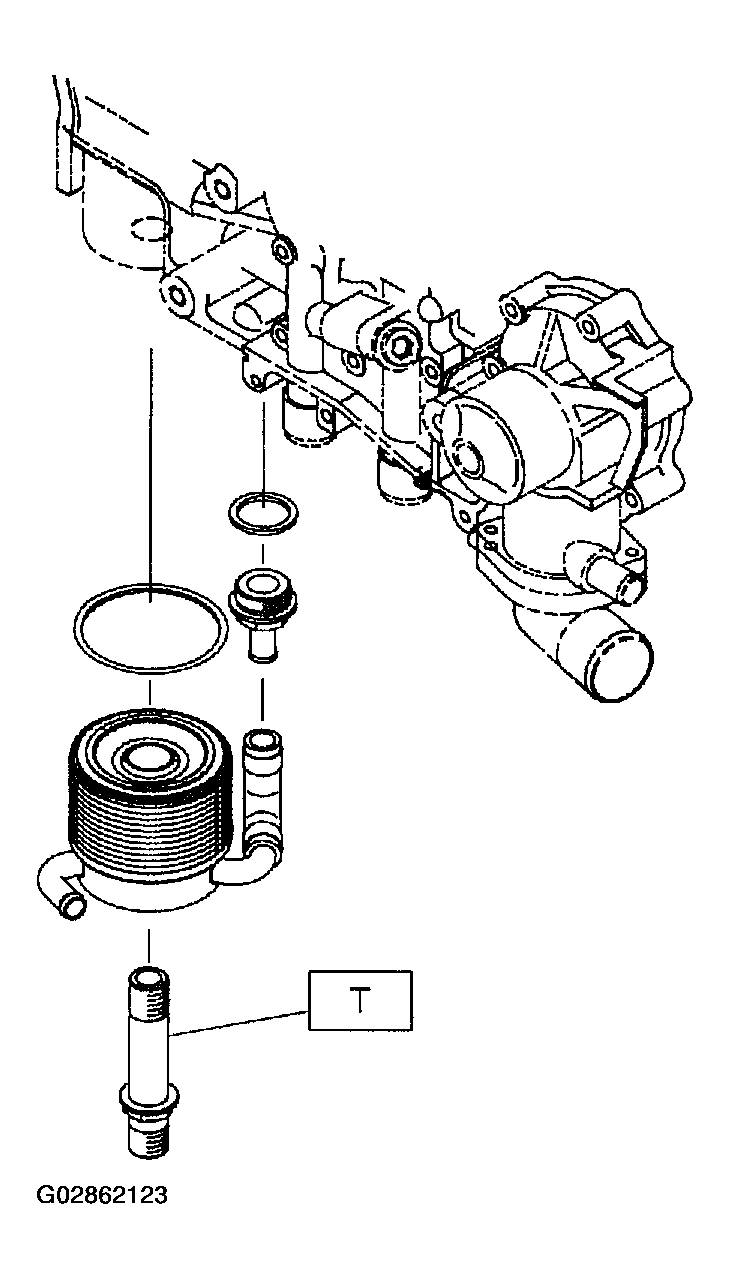

Fig 1: Installing Connector And Oil Cooler

G02862123

Courtesy of SUBARU OF AMERICA, INC.
