Lubrication System: Lubrication: General Description: Component

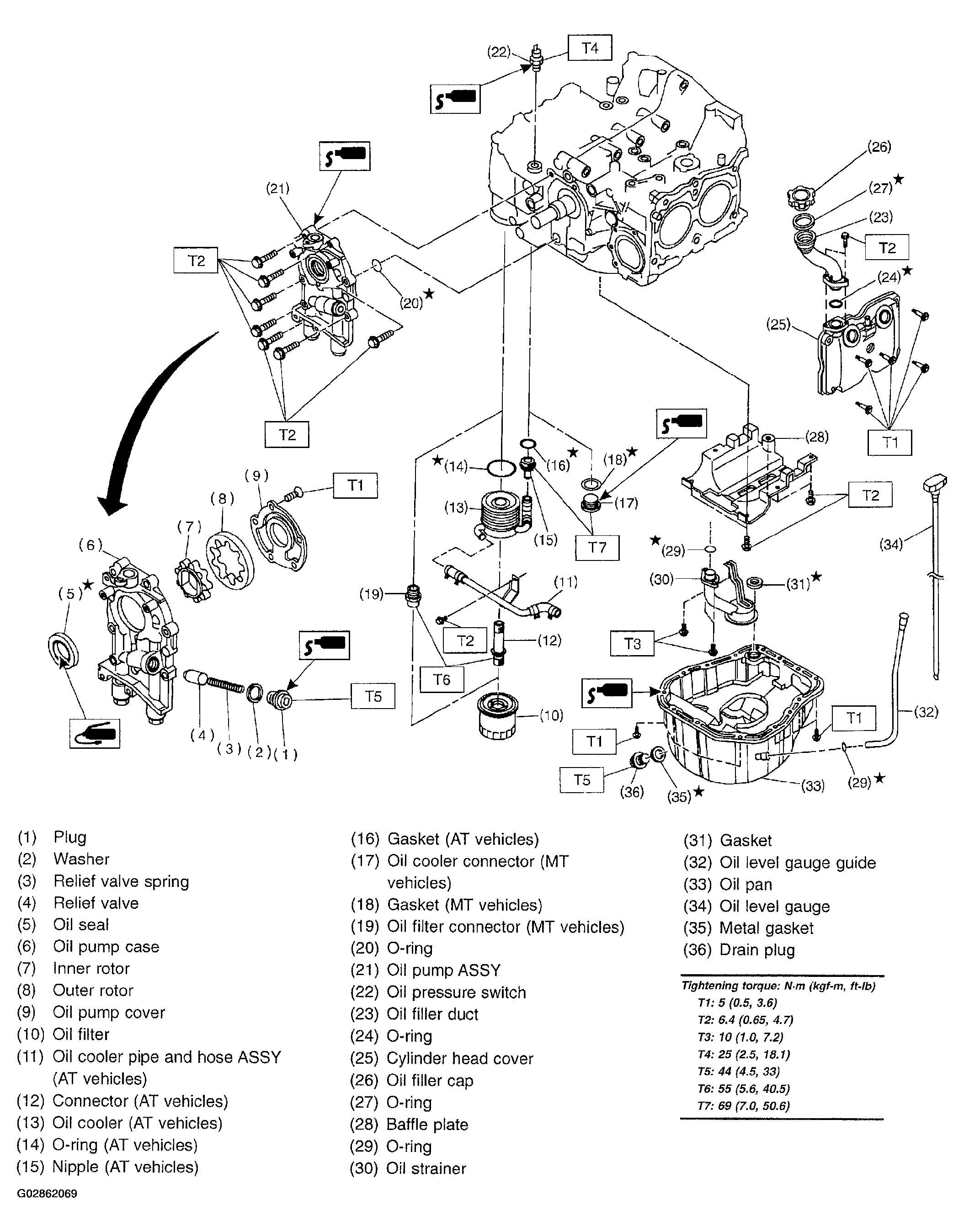

Fig 1: Identifying Lubrication System Components
G02862069Courtesy of SUBARU OF AMERICA, INC.
