Oil Pump: Disassembly

Remove screws which secure oil pump cover and disassemble oil pump. Inscribe alignment marks on inner and outer rotors so that they can be replaced in their original positions during reassembly.

CAUTION: Before removing relief valve, loosen plug when removing oil pump from cylinder block.

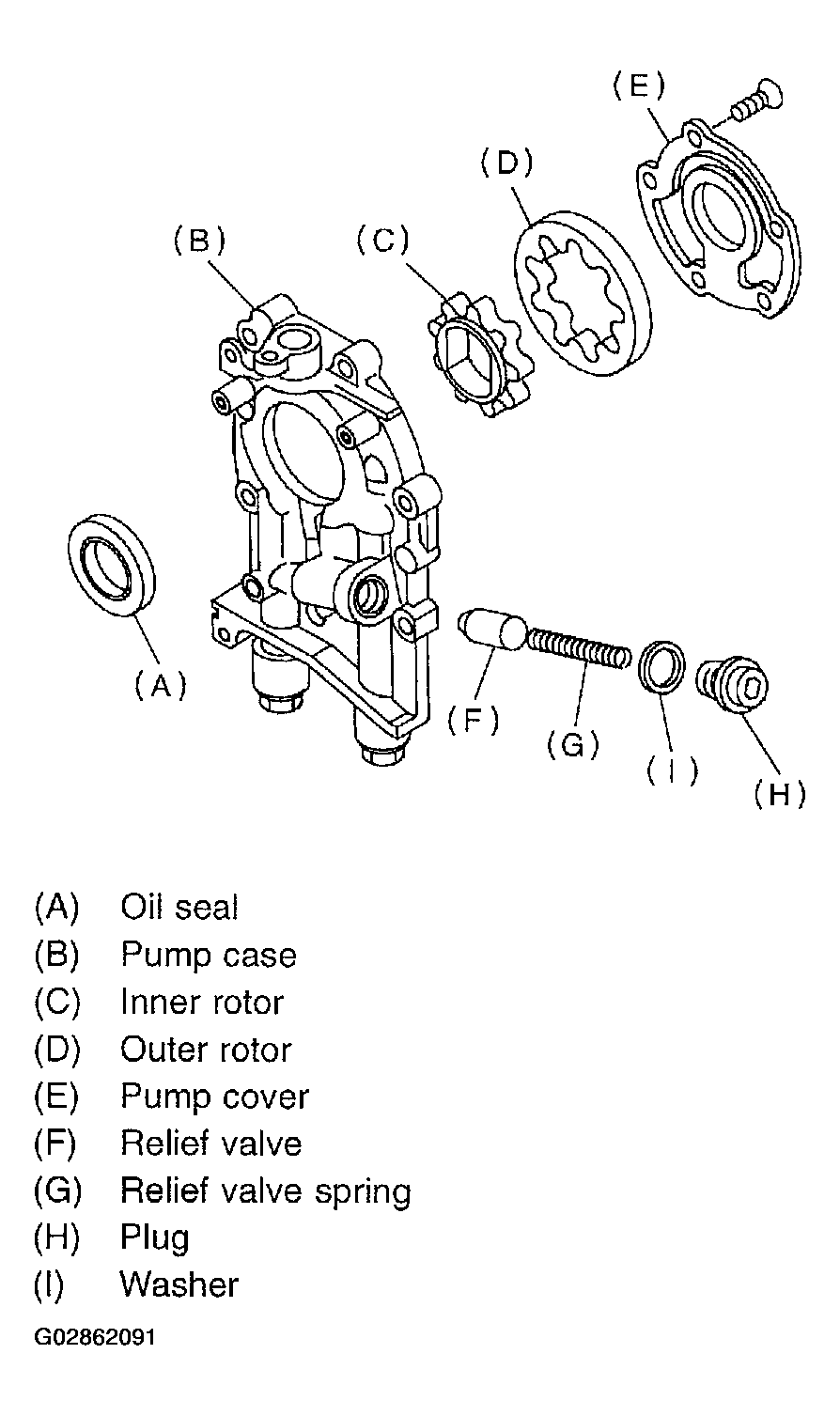

Fig 1: Disassembling Oil Pump
G02862091Courtesy of SUBARU OF AMERICA, INC.
