Switch Assembly

Be sure there is continuity between the terminals S and M, and between terminal S and ground. See Fig 1 . Use circuit tester (set in "ohm"). Also check to be sure there is no continuity between terminal M and B.

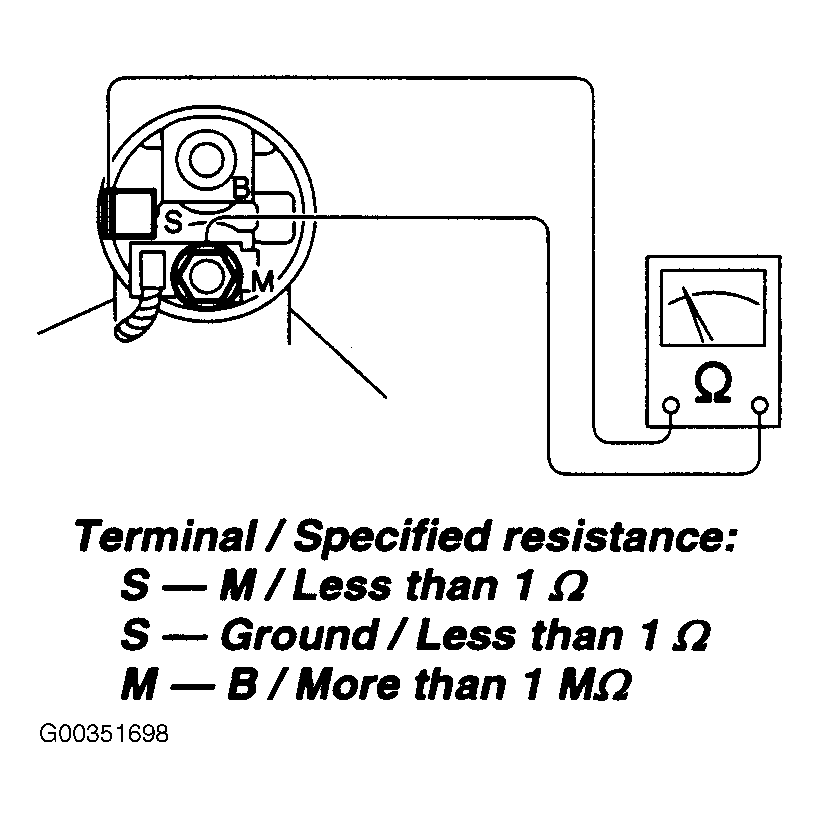

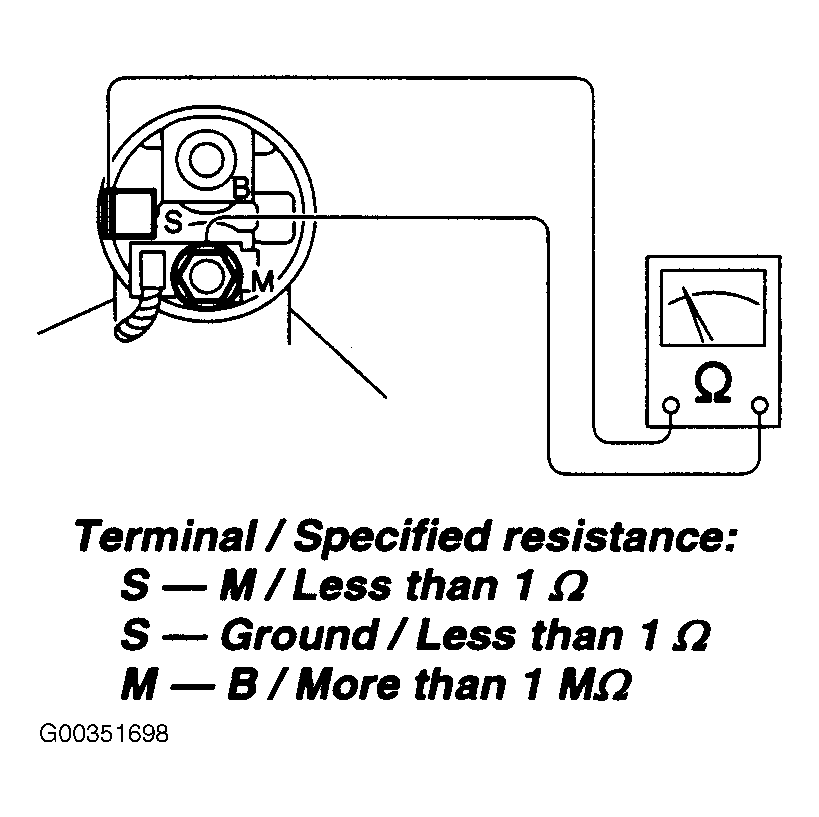

Fig 1: Checking Continuity Between Terminals "S" & "M"

Courtesy of SUBARU OF AMERICA, INC.
