Component Location

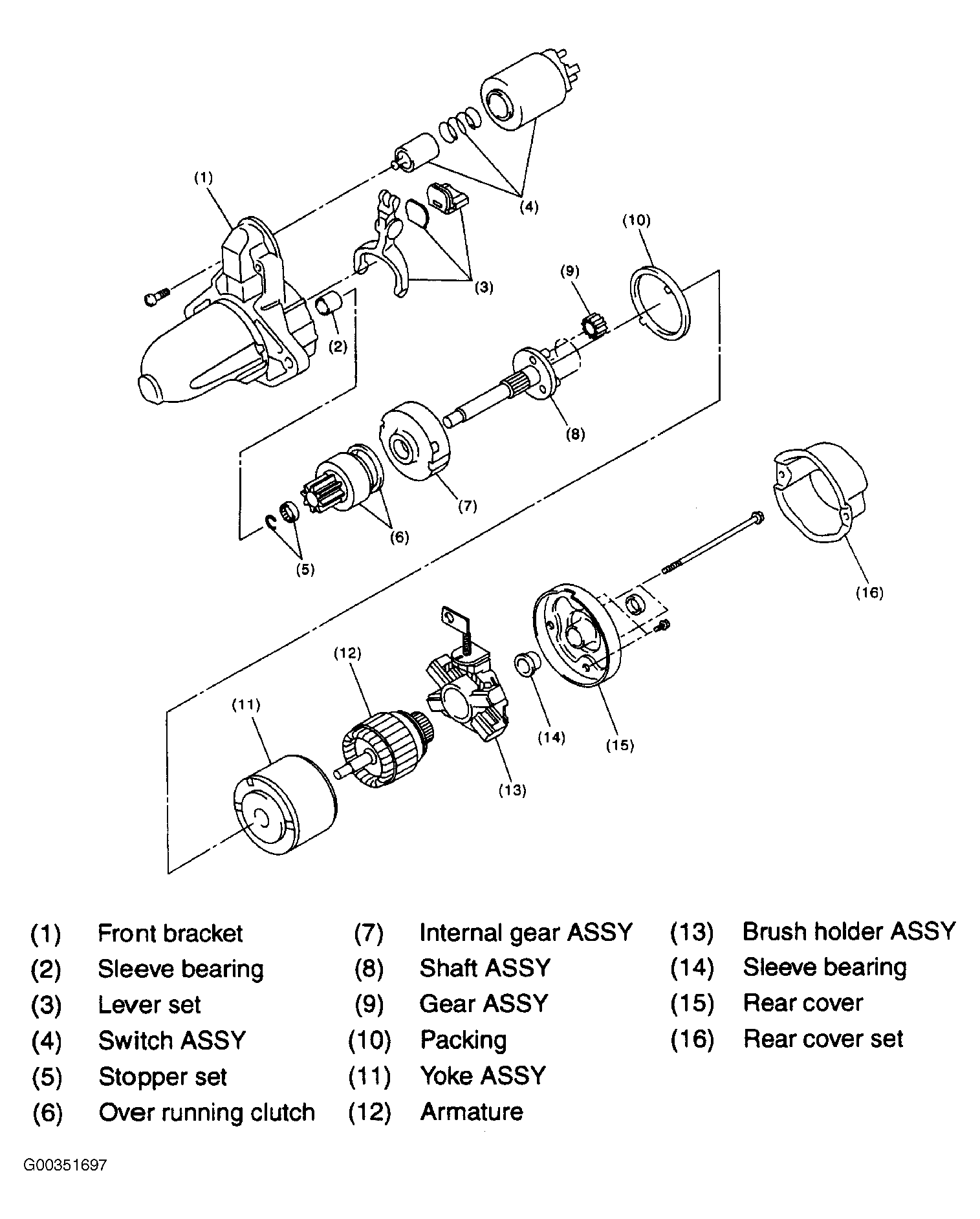

Fig 1: Exploded View Of Starter
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
