Atmospheric Pressure Sensor : Removal

  1. Disconnect battery ground cable.

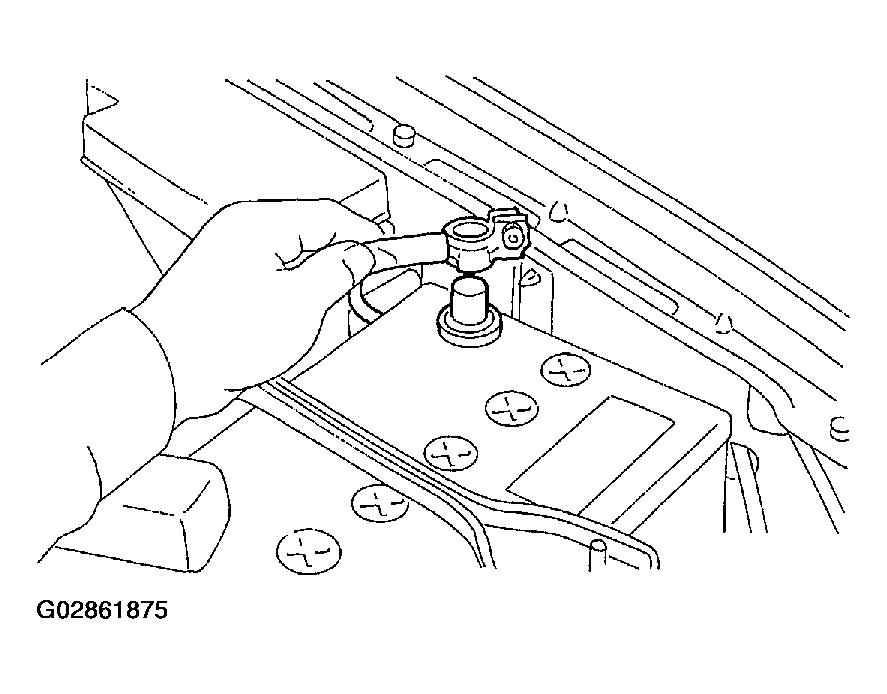

    Fig 1: Disconnecting Battery Ground Cable
    G02861875Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector from atmospheric pressure sensor.
  3. Remove atmospheric pressure sensor from bracket.

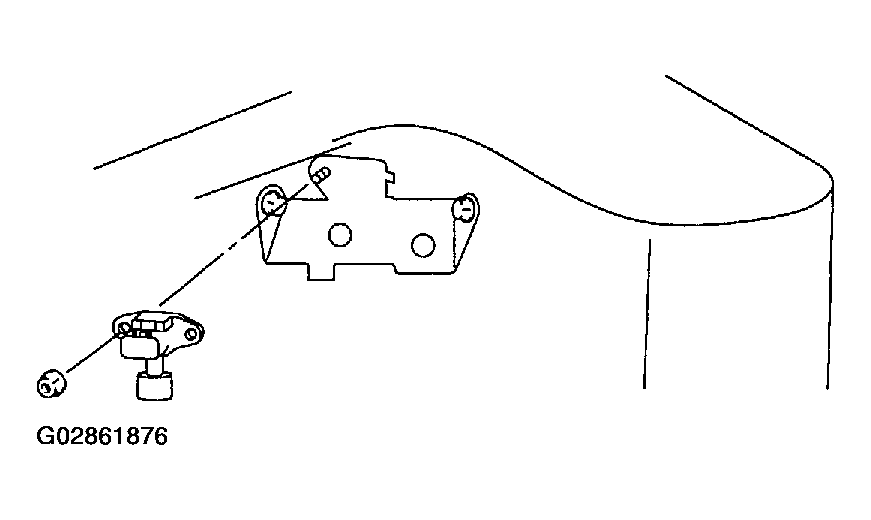

    Fig 2: Removing Atmospheric Pressure Sensor
    G02861876Courtesy of SUBARU OF AMERICA, INC.
