Camshaft Position Sensor: Removal

Disconnect battery ground cable.

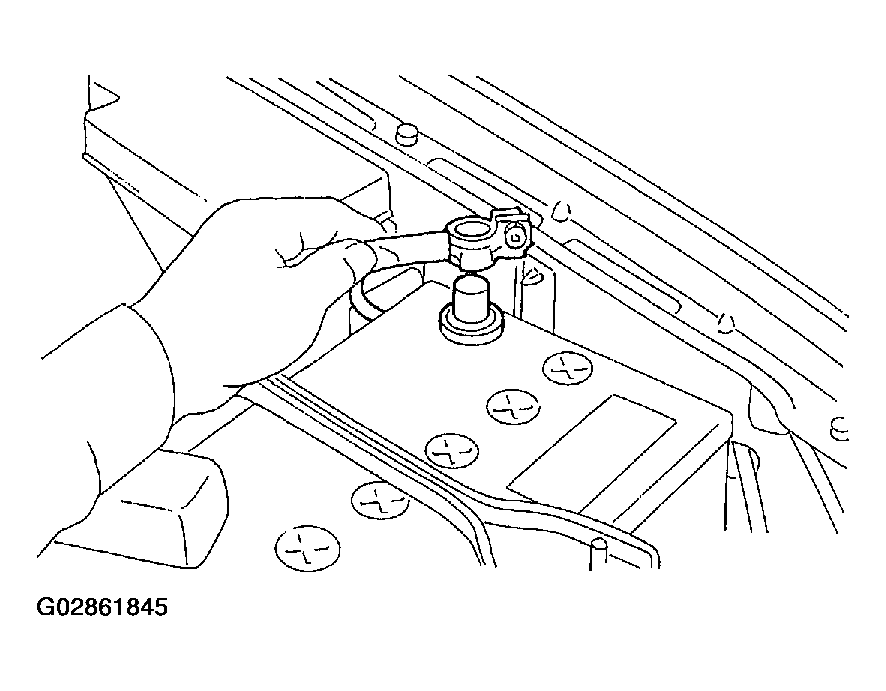

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from camshaft position sensor.

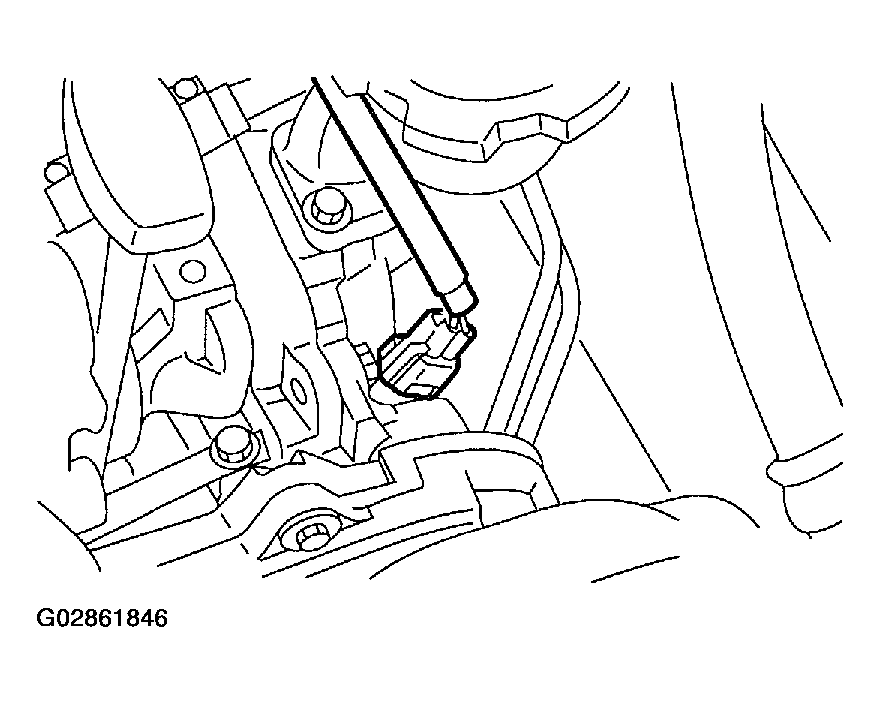

Fig 2: Disconnecting Connector From Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which installs camshaft position sensor to camshaft position sensor support.

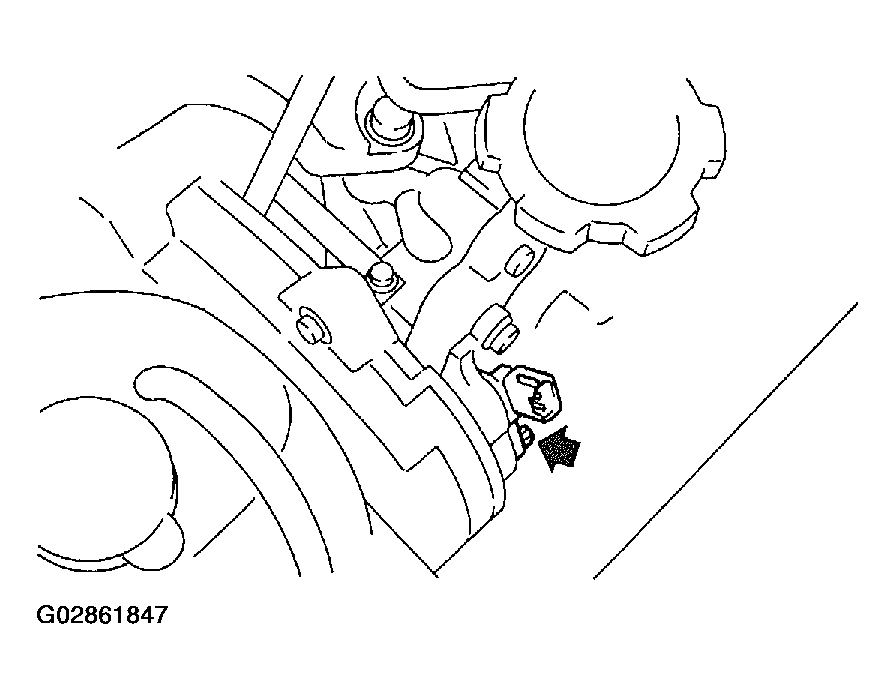

Fig 3: Removing Camshaft Position Sensor Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which installs camshaft position sensor support to camshaft cap LH.

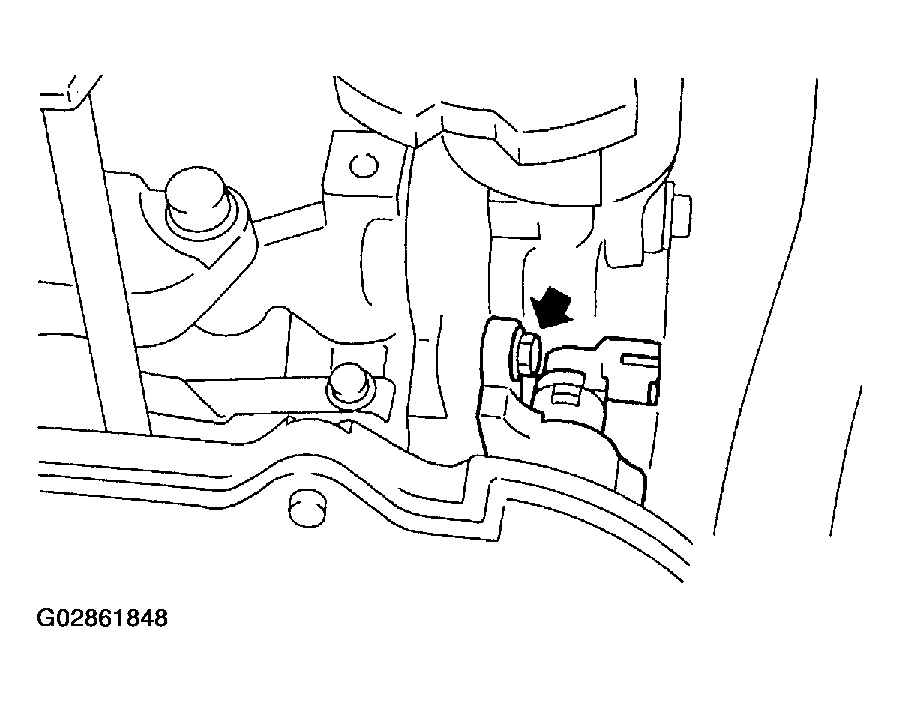

Fig 4: Removing Camshaft Position Sensor Support Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove camshaft position sensor and camshaft position sensor support as a unit.
Remove camshaft position sensor itself.

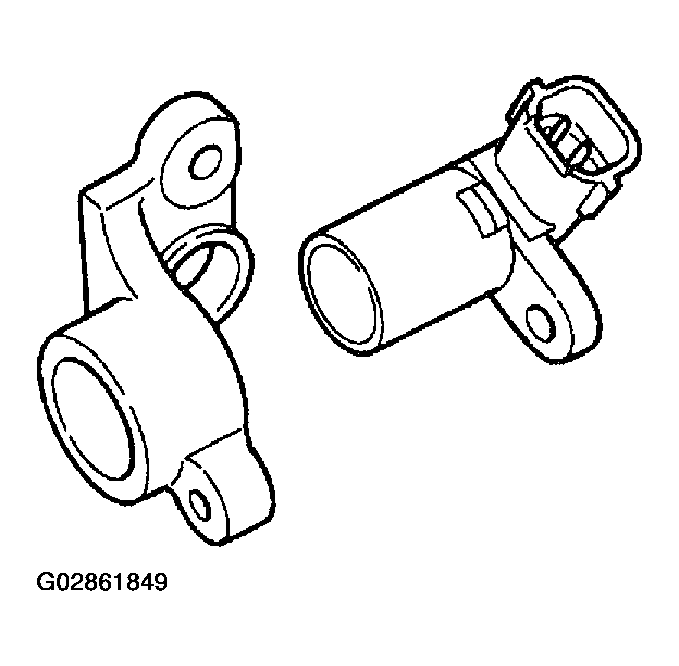

Fig 5: Removing Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
