Crankshaft Position Sensor: Removal

Disconnect battery ground cable.

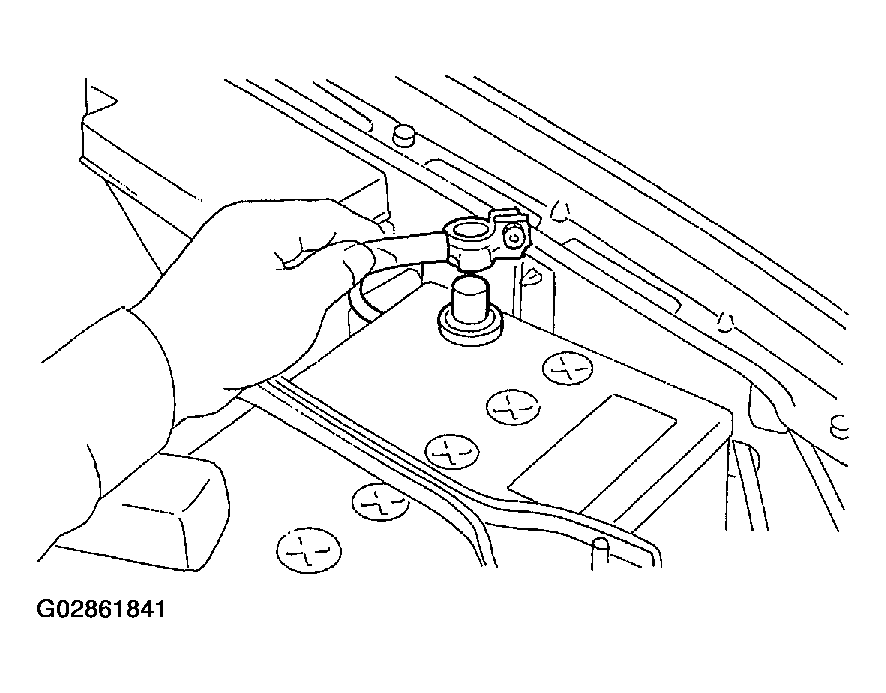

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which installs crankshaft position sensor to cylinder block.

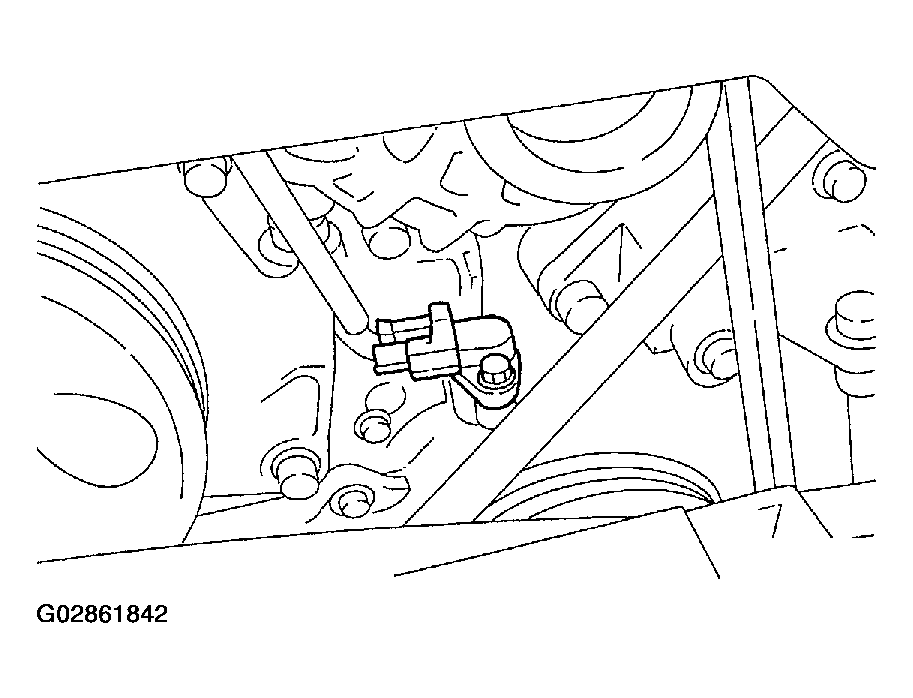

Fig 2: Removing Crankshaft Position Sensor Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove crankshaft position sensor, and disconnect connector from it.

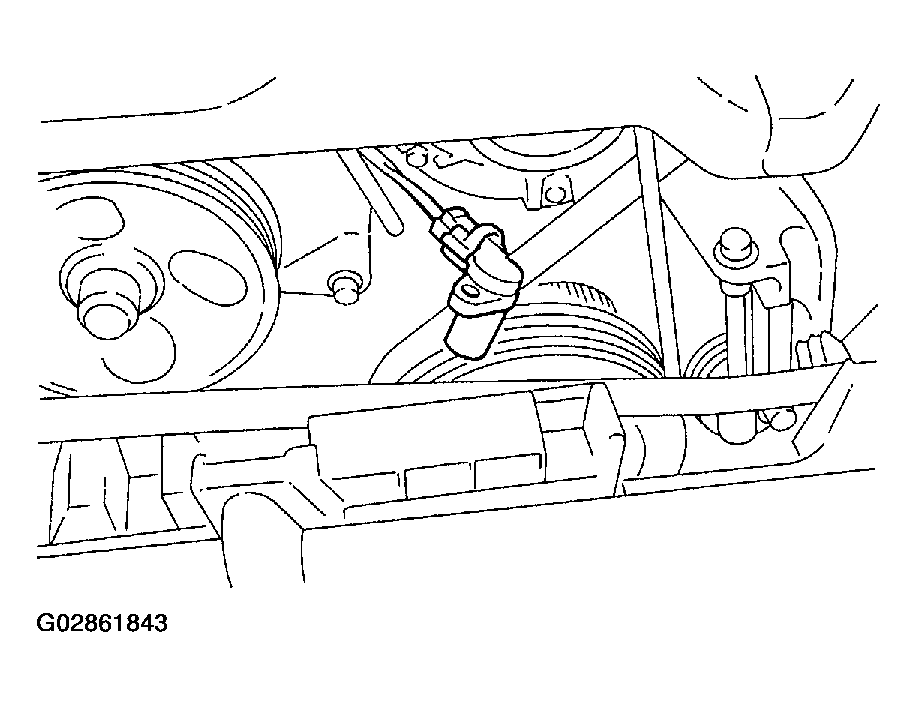

Fig 3: Removing Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
