Engine Coolant Temperature Sensor: Removal

  1. Disconnect battery ground cable.

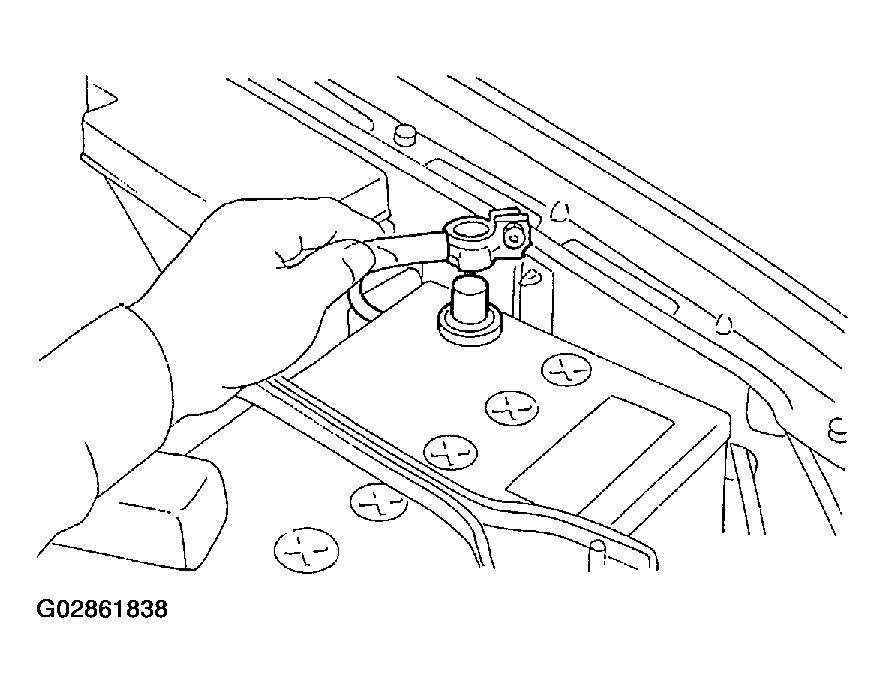

    Fig 1: Disconnecting Battery Ground Cable
    G02861838Courtesy of SUBARU OF AMERICA, INC.
  2. Remove air intake duct and air cleaner assembly. Refer to AIR INTAKE DUCT and AIR CLEANER CASE .
  3. Disconnect connector from engine coolant temperature sensor.

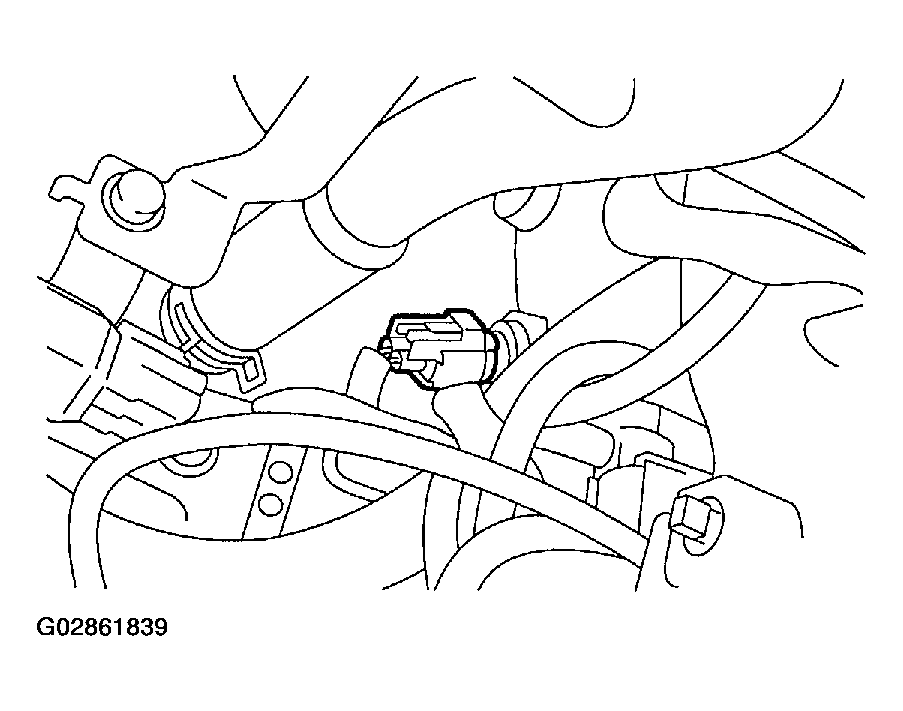

    Fig 2: Disconnecting Connector From Engine Coolant Temperature Sensor
    G02861839Courtesy of SUBARU OF AMERICA, INC.
  4. Remove engine coolant temperature sensor.
