Fuel Cut Valve: Removal

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
  1. Remove fuel tank. Refer to Fuel Tank  .
  2. Remove protective cover.

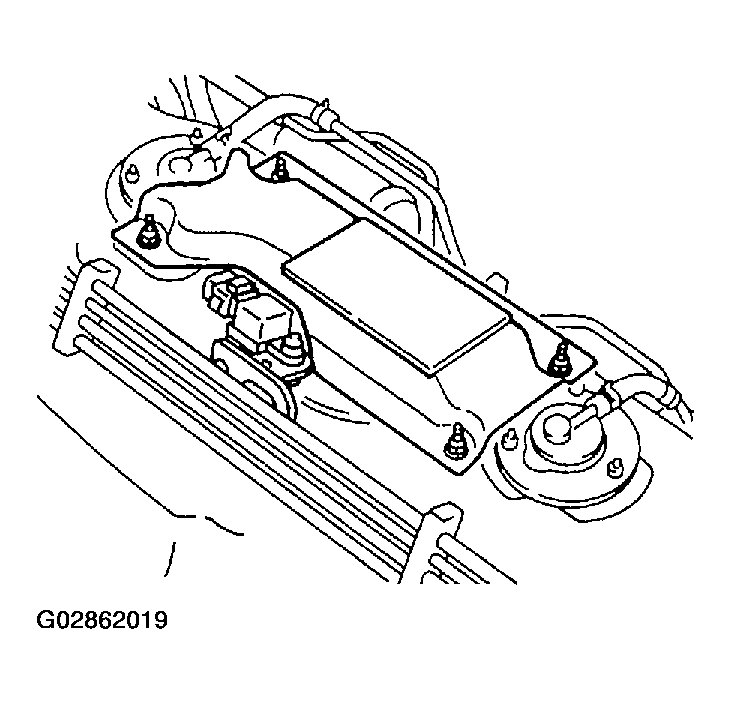

    Fig 1: Removing Protective Cover
    G02862019Courtesy of SUBARU OF AMERICA, INC.
  3. Move clip and disconnect evaporation hose from fuel cut valve.
  4. Remove bolts which install fuel cut valve.

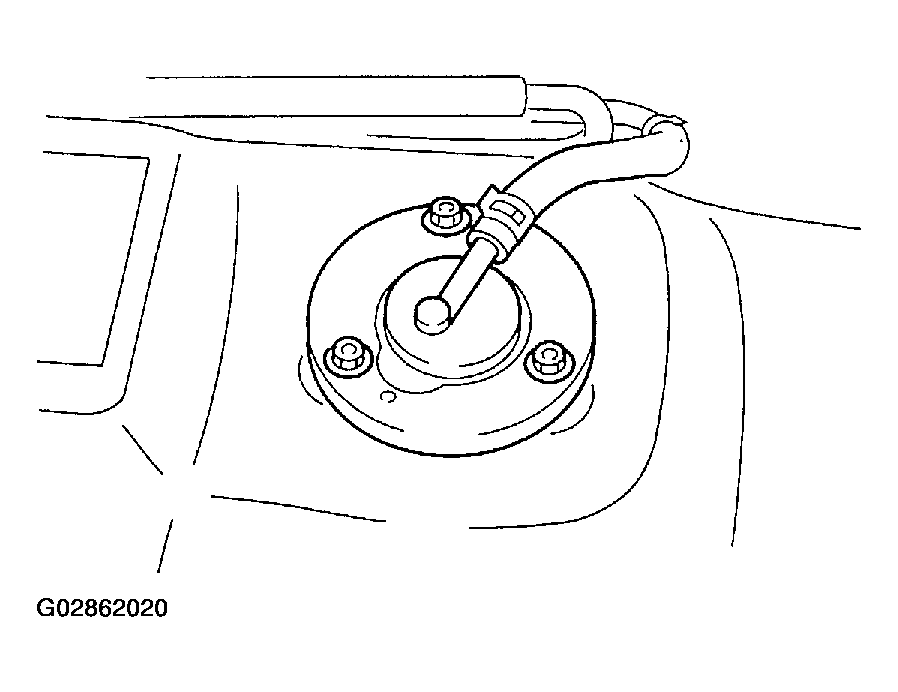

    Fig 2: Removing Fuel Cut Valve Bolts
    G02862020Courtesy of SUBARU OF AMERICA, INC.
