Fuel Filler Pipe: Assembly

Install shut valve on fuel filler pipe.
Tightening torque: 4.4 N.m (0.45 kg-m, 3.3 ft-lb)

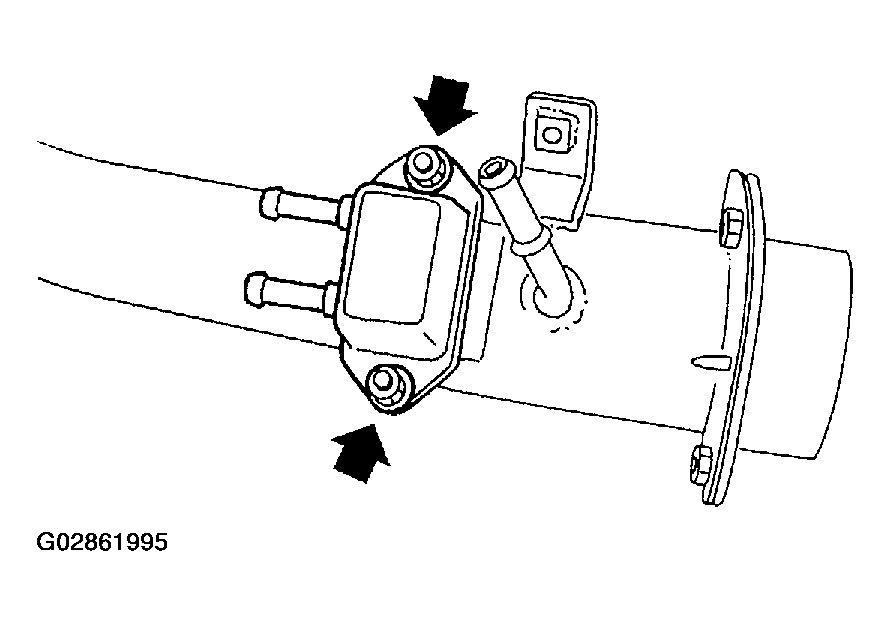

Fig 1: Installing Shut Valve
Courtesy of SUBARU OF AMERICA, INC.
Connect evaporation hoses to shut valve.

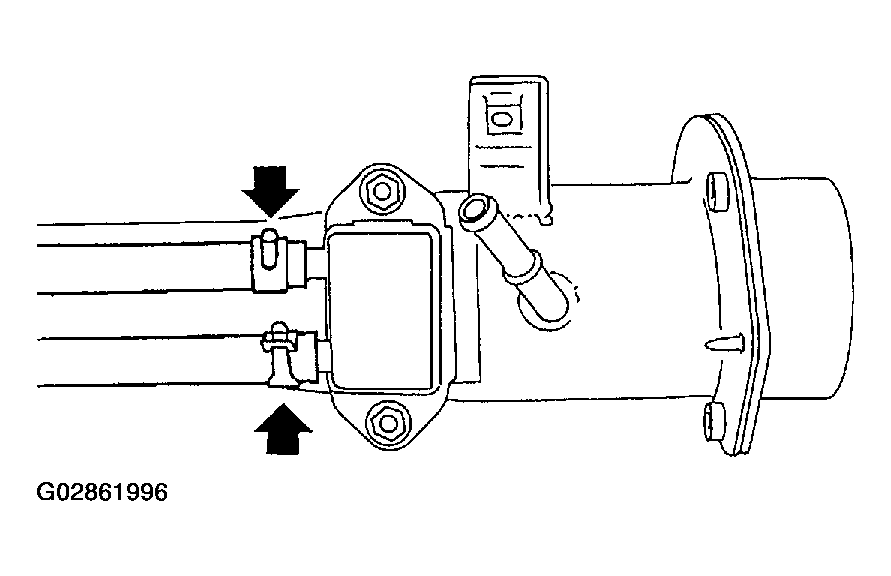

Fig 2: Connecting Evaporation Hoses
Courtesy of SUBARU OF AMERICA, INC.
Connect evaporation hose to fuel filler pipe.

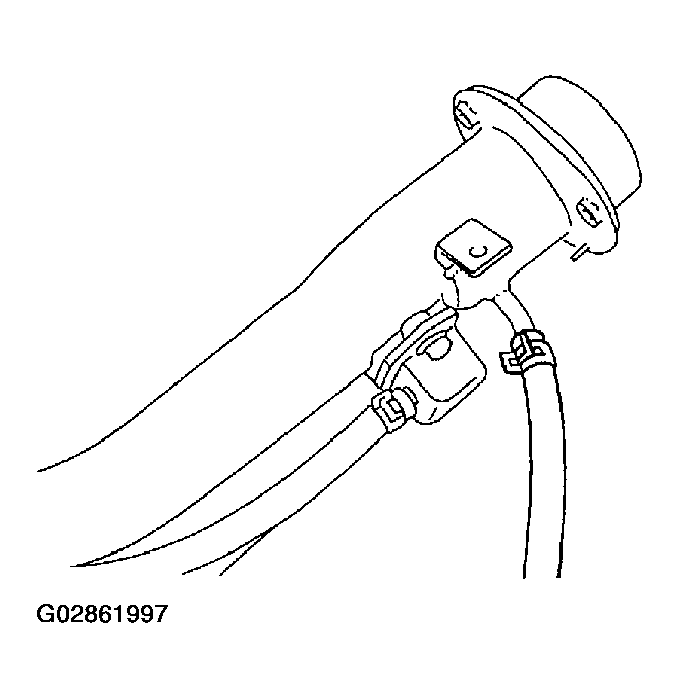

Fig 3: Connecting Evaporation Hose To Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Connect evaporation hose to evaporation pipe.

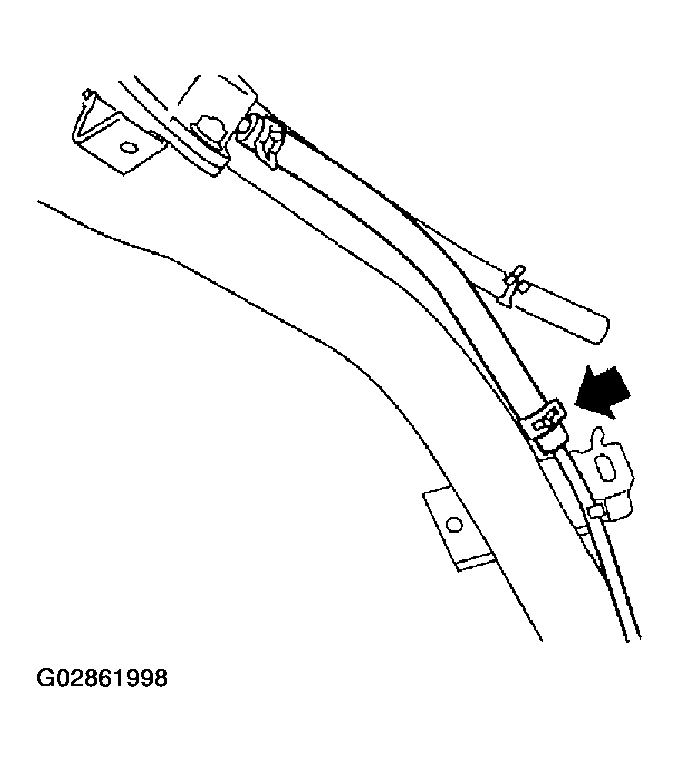

Fig 4: Connecting Evaporation Hose To Evaporation Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install evaporation pipe to fuel filler pipe.

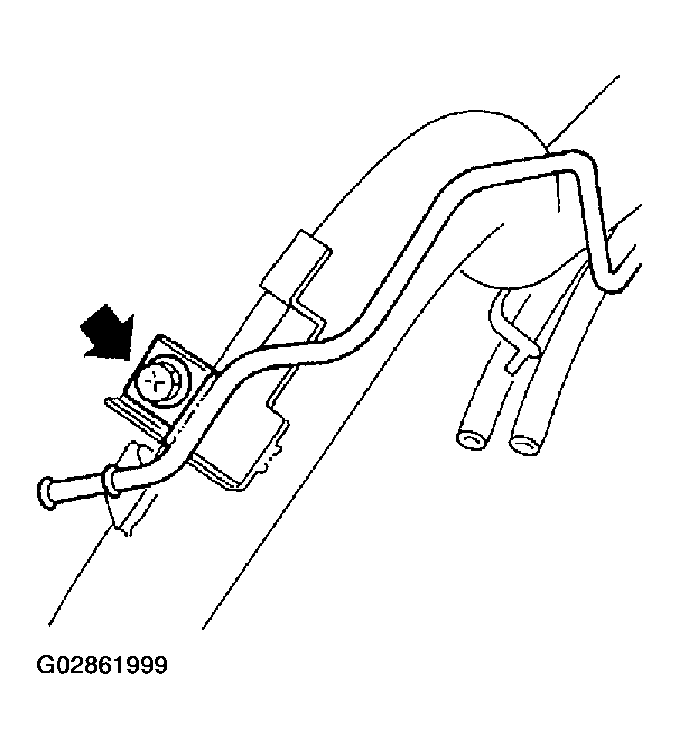

Fig 5: Installing Evaporation Pipe To Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
