Fuel Filler Pipe: Disassembly

Move clip, and disconnect evaporation hose from joint pipe.

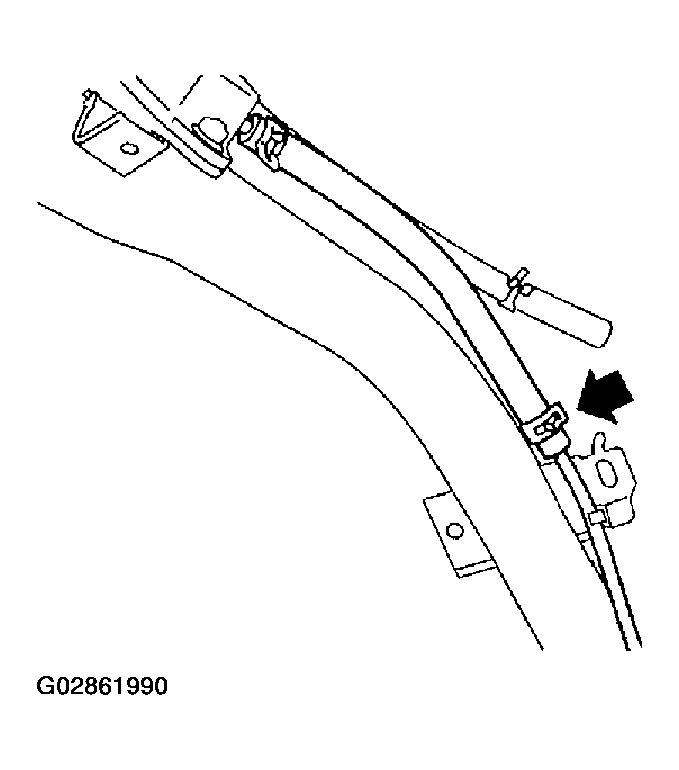

Fig 1: Disconnecting Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which installs joint pipe on fuel filler pipe.

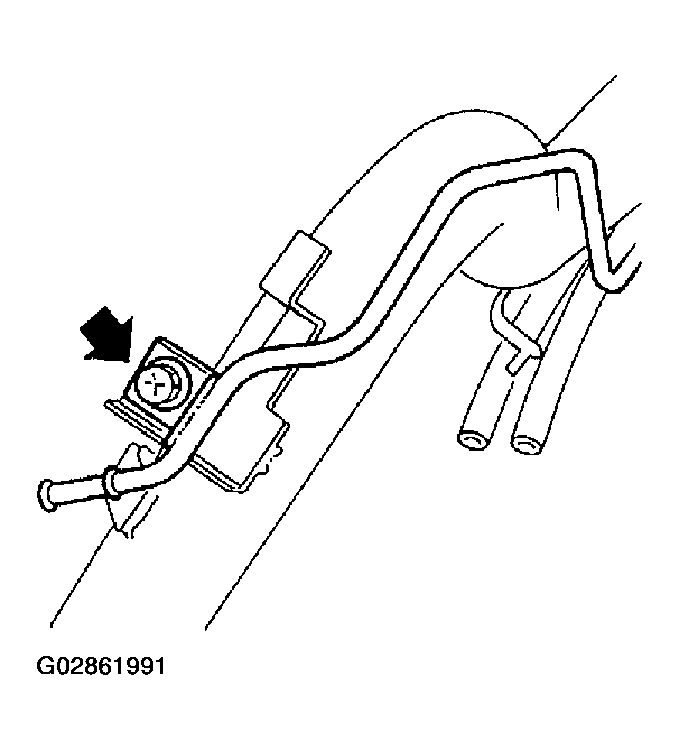

Fig 2: Removing Joint Pipe Bolt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect evaporation hose from fuel filler pipe.

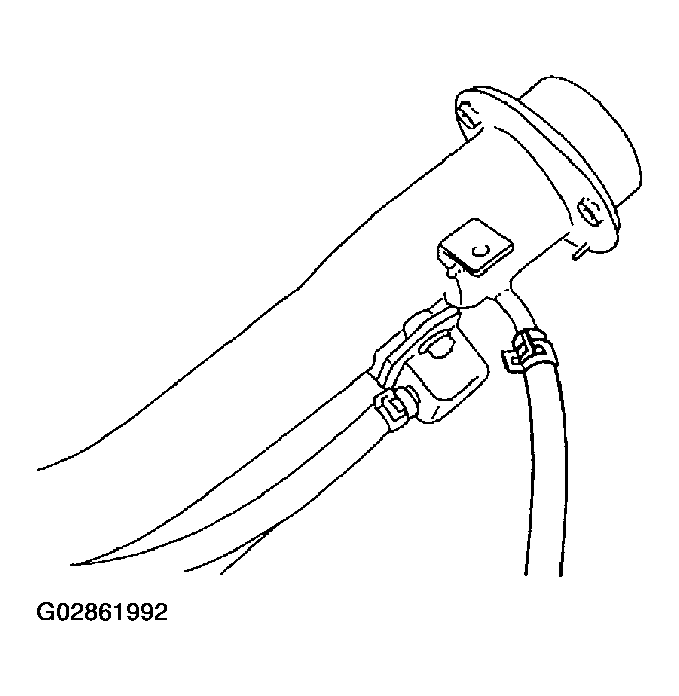

Fig 3: Disconnecting Evaporation Hose From Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Disconnect evaporation hoses from shut valve.

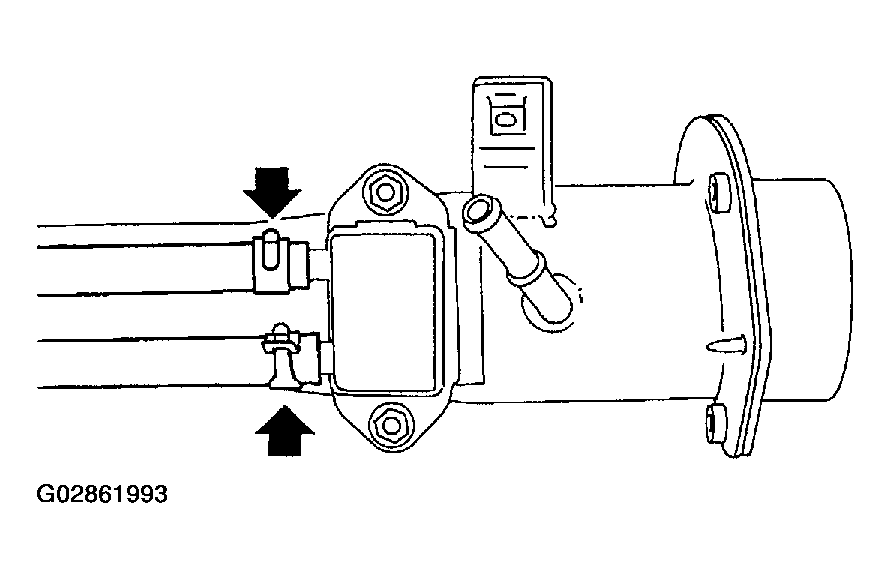

Fig 4: Disconnecting Evaporation Hoses From Shut Valve
Courtesy of SUBARU OF AMERICA, INC.
Remove shut valve from fuel filler pipe.

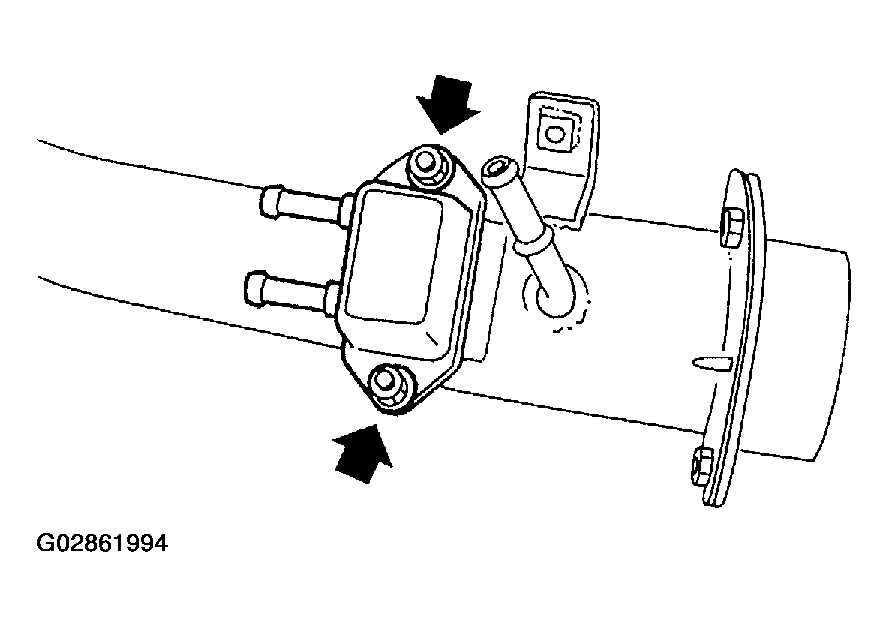

Fig 5: Removing Shut Valve
Courtesy of SUBARU OF AMERICA, INC.
