Fuel Filler Pipe: Installation

Set fuel filler pipe from under side of vehicle, and hold it on fuel filler flap .

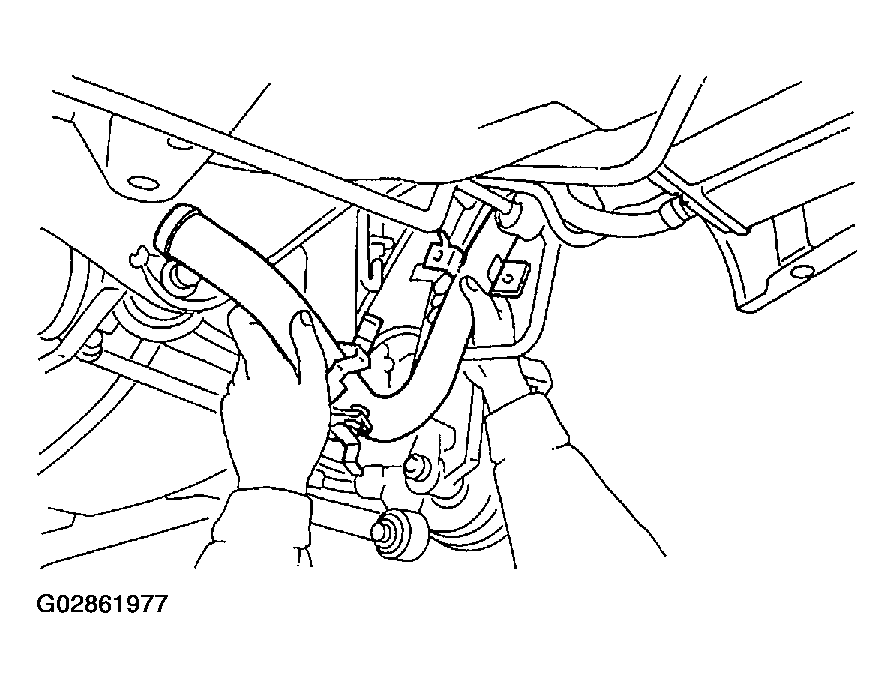

Fig 1: Installing Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Connect fuel filler pipe into fuel filler hose.

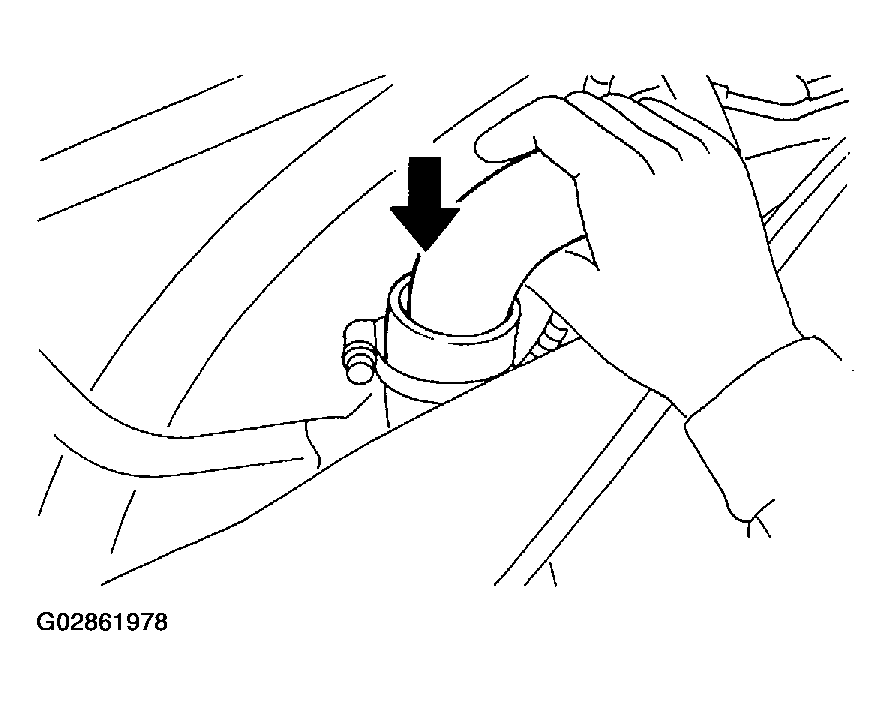

Fig 2: Connecting Fuel Filler Pipe Into Fuel Filler Hose
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Temporarily tighten screws which install fuel filler pipe on filler lid open.

Fig 3: Installing Fuel Filler Pipe Screws
Courtesy of SUBARU OF AMERICA, INC.
Connect evaporation hoses to pipes.

Fig 4: Connecting Evaporation Hoses
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Tighten clamp bolt which holds fuel filler hose.

Fig 5: Tightening Fuel Filler Hose Clamp Bolt
Courtesy of SUBARU OF AMERICA, INC.
Install two evaporation hoses to clip.

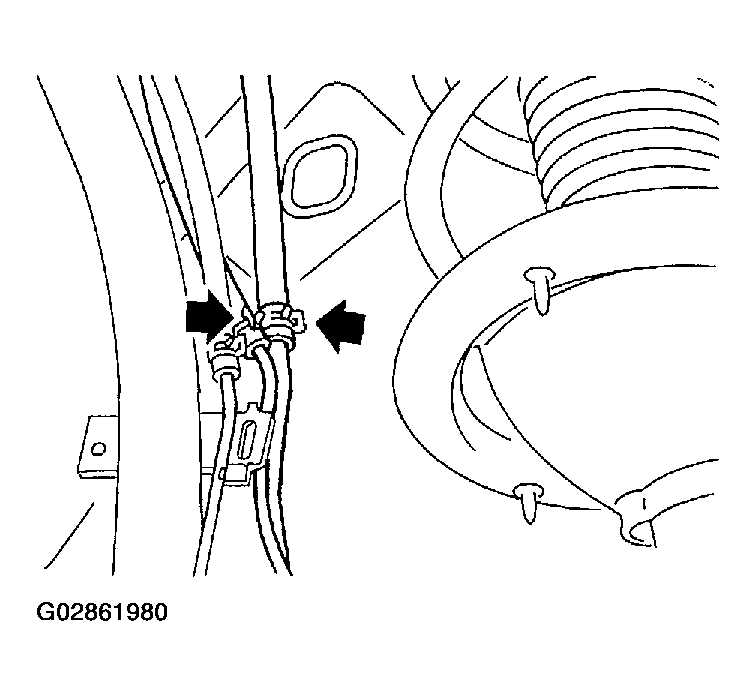

Fig 6: Installing Two Evaporation Hoses To Clip
Courtesy of SUBARU OF AMERICA, INC.

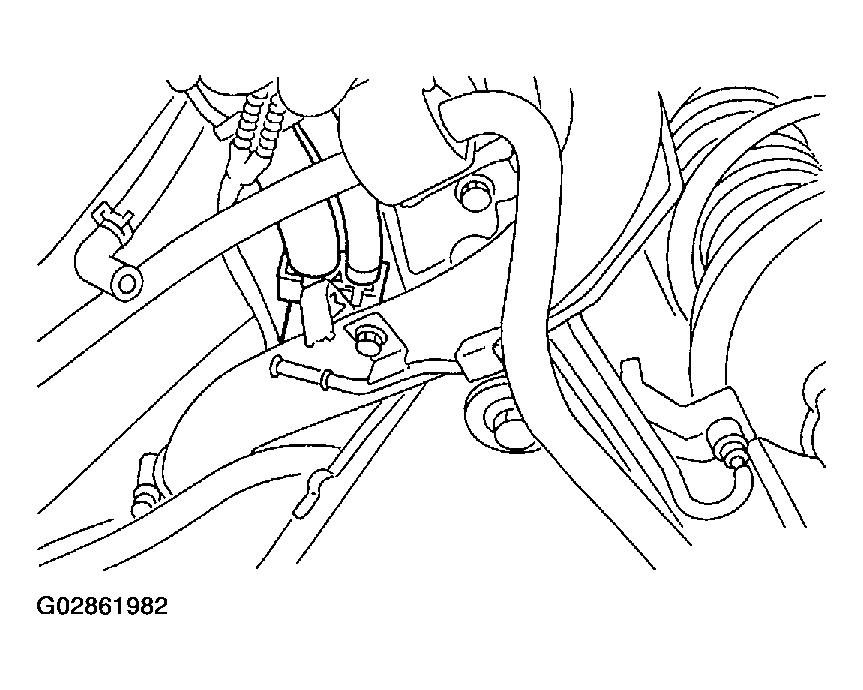

Connect evaporation hose to joint pipe.

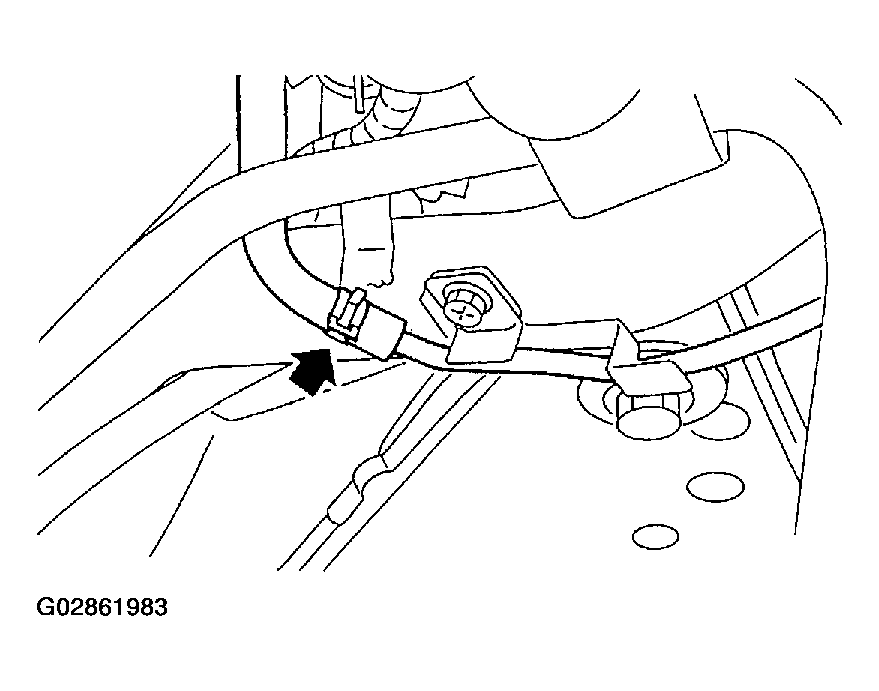

Fig 7: Connecting Evaporation Hose
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.

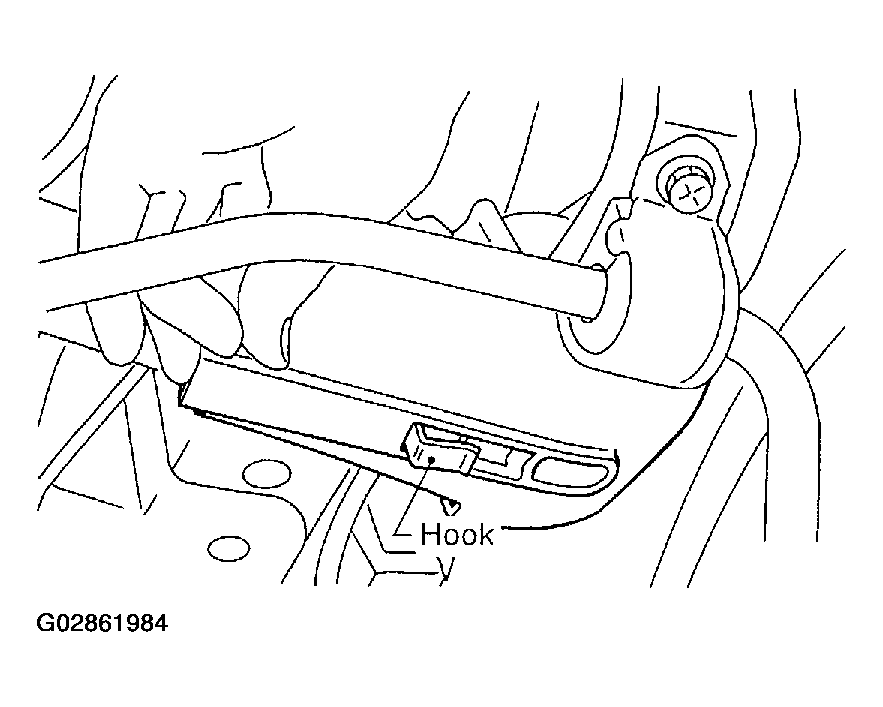

While holding the under side of protector cover on bracket, install it.

Fig 8: Installing Protector Cover
Courtesy of SUBARU OF AMERICA, INC.
Tighten bolts which install protector cover on body.

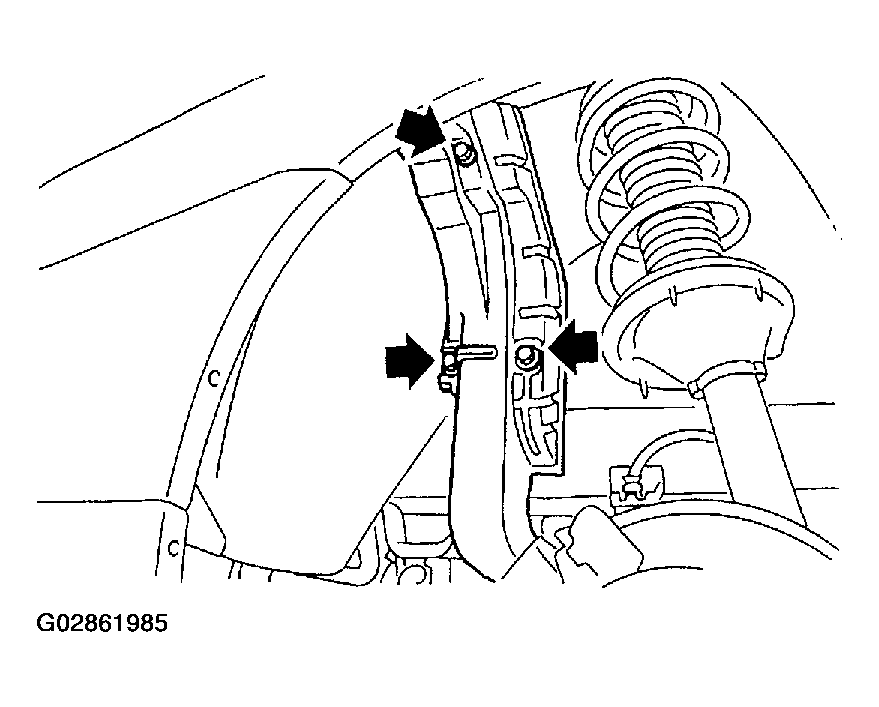

Fig 9: Tightening Protector Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Tighten screws which install fuel filler pipe on filler lid open.

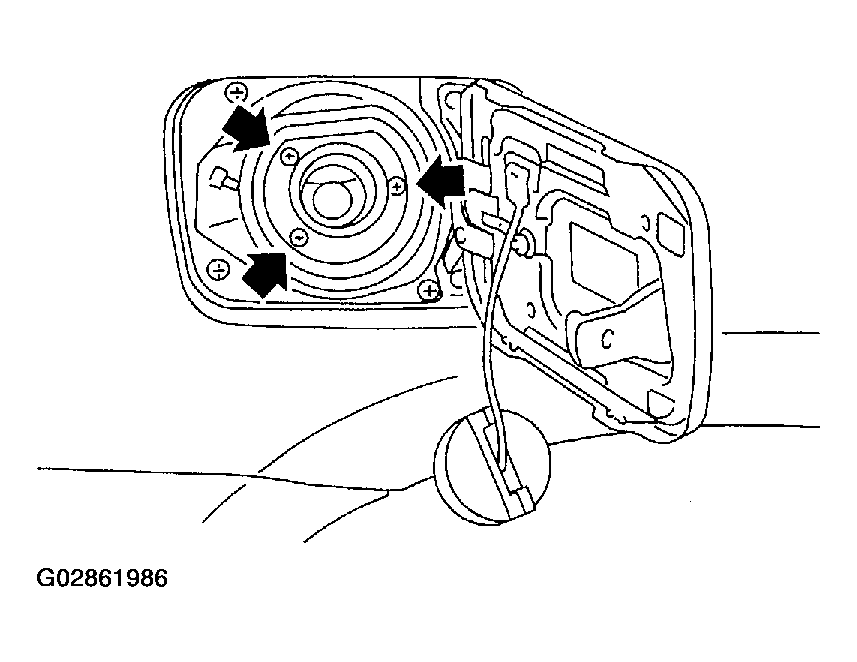

Fig 10: Tightening Fuel Filler Pipe Screws
Courtesy of SUBARU OF AMERICA, INC.
Install rear right wheel.

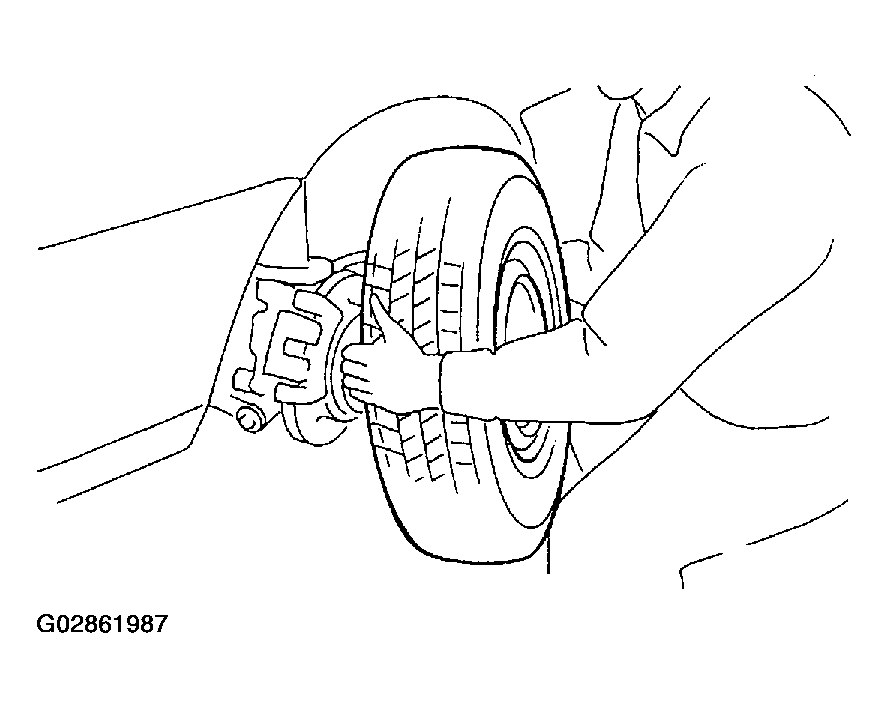

Fig 11: Installing Rear Right Wheel
Courtesy of SUBARU OF AMERICA, INC.
install fuel filler cap.
Connect connector to fuel pump relay.

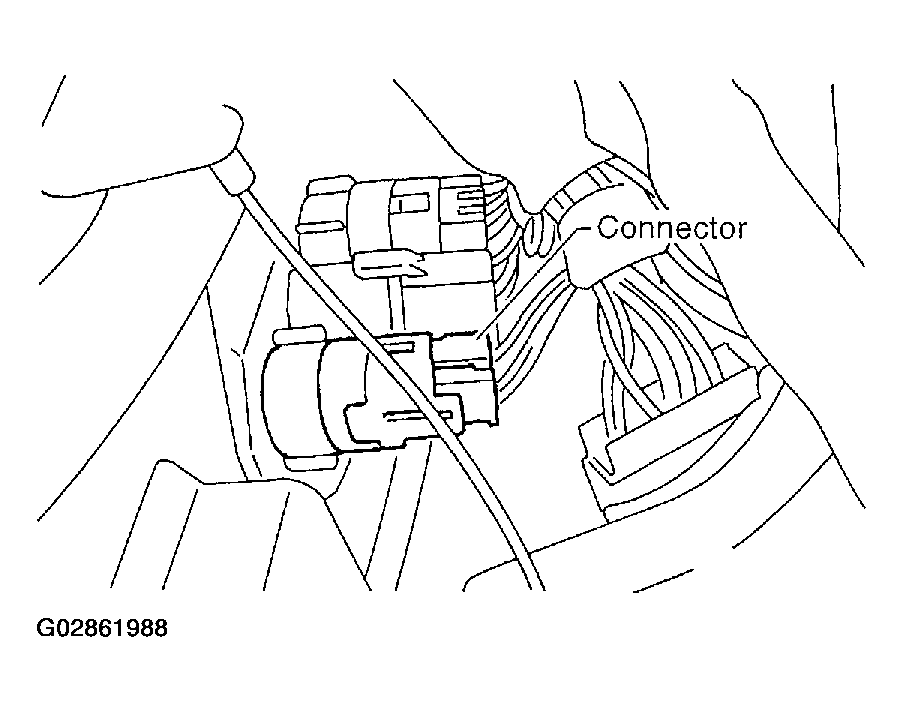

Fig 12: Connecting Connector To Fuel Pump Relay
Courtesy of SUBARU OF AMERICA, INC.

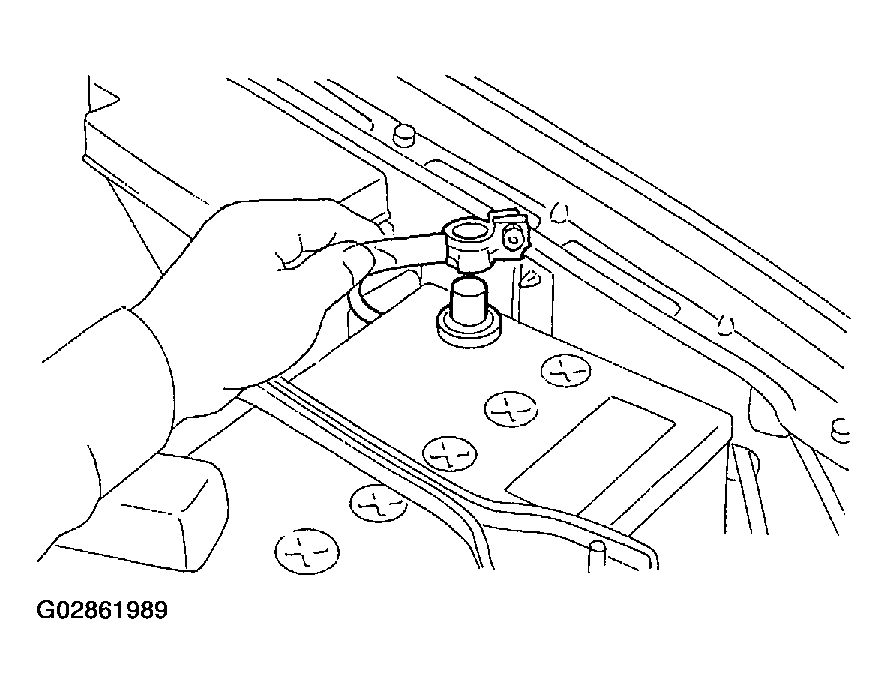

Connect battery ground terminal.

Fig 13: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
