Fuel Filler Pipe: Removal

Set the vehicle on the lift.
Drain fuel from fuel tank. Refer to DRAINING OF FUEL .
Remove screws which install fuel filler pipe on filler lid .

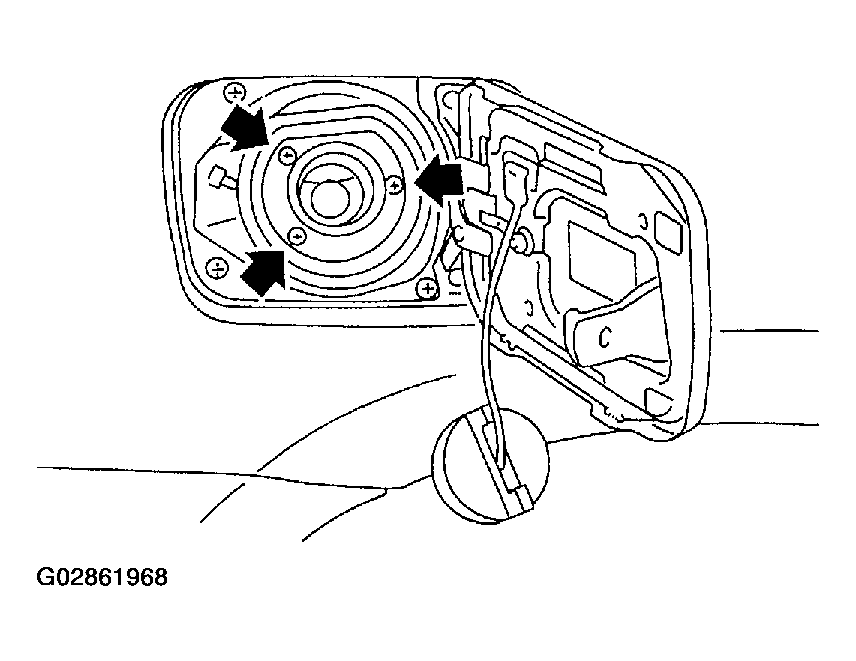

Fig 1: Removing Fuel Filler Pipe Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove wheel nuts of rear right side.
Lift-up the vehicle.
Remove rear right side wheel.

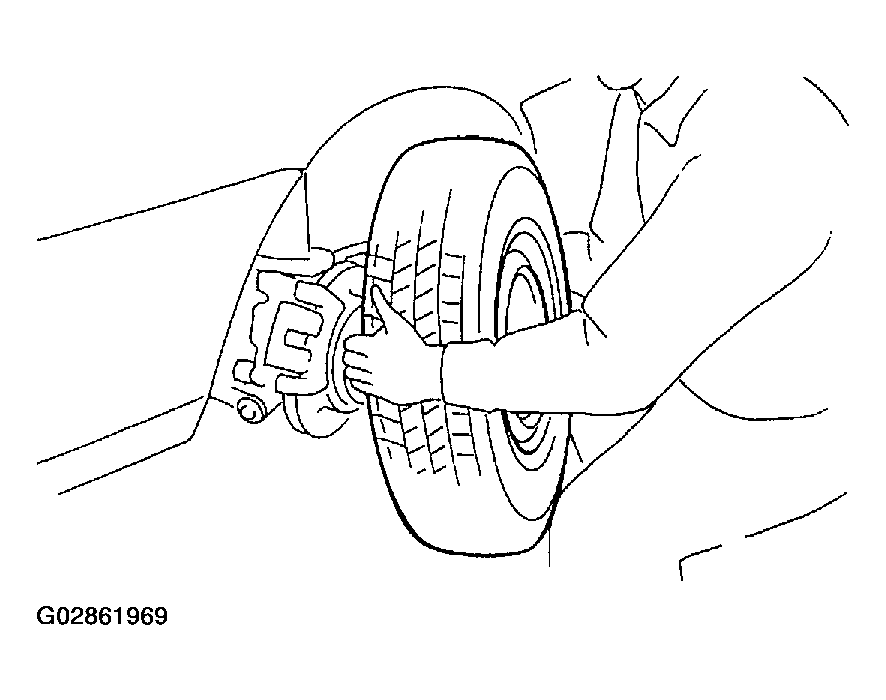

Fig 2: Removing Rear Right Side Wheel
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which install protector cover on body.

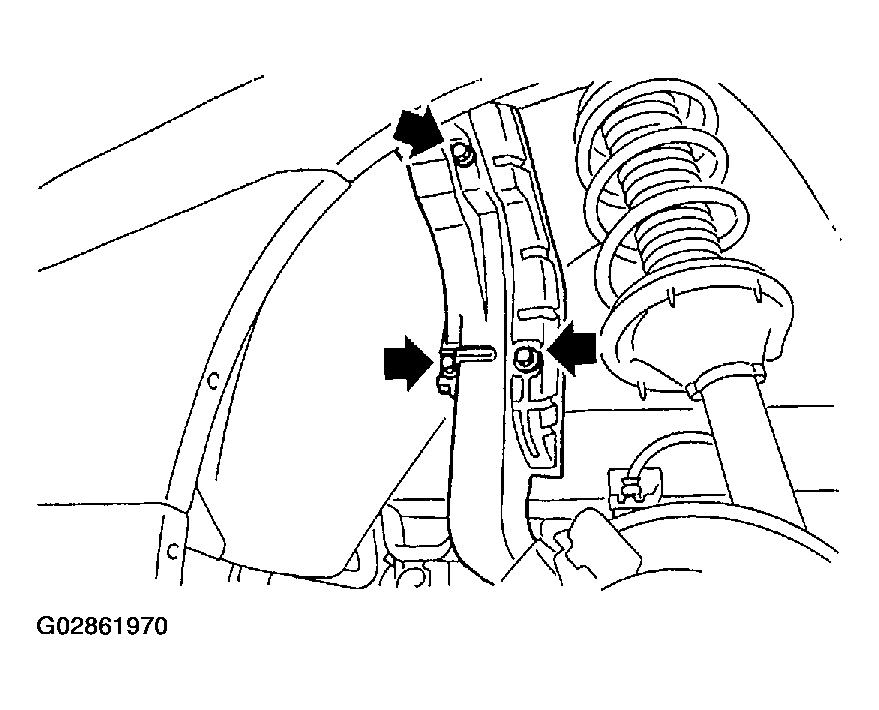

Fig 3: Removing Protector Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
While releasing the under side of protector cover from hook, remove it.

Fig 4: Removing Protector Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect evaporation hoses from pipes.

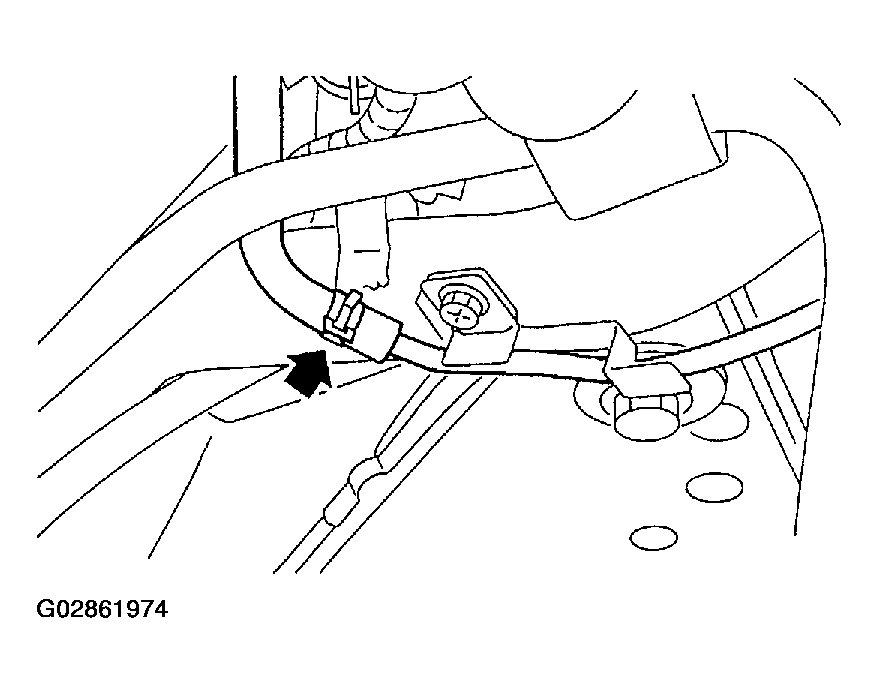

Fig 5: Disconnecting Evaporation Hoses
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle more.
Remove two evaporation hoses from clip.

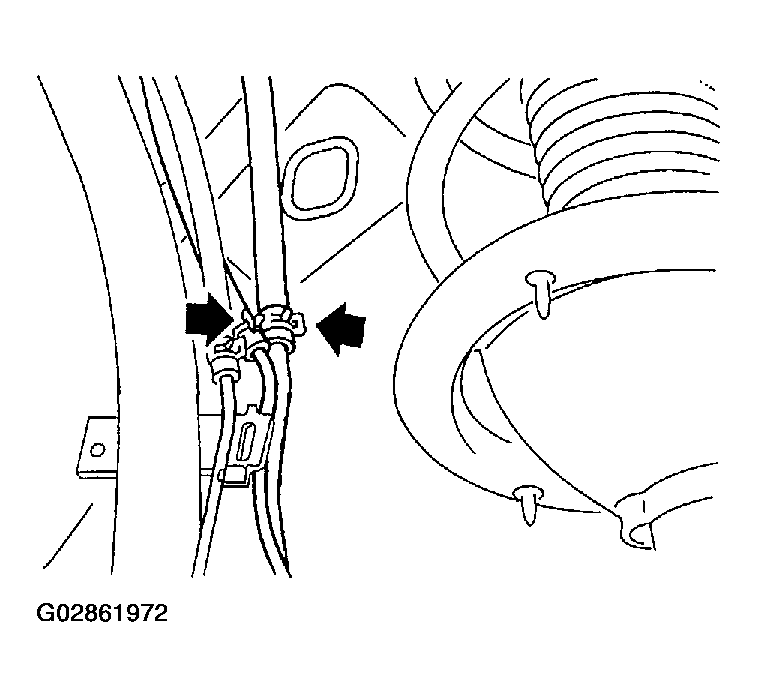

Fig 6: Removing Two Evaporation Hoses From Clip
Courtesy of SUBARU OF AMERICA, INC.
Disconnect evaporation hose from joint pipe.

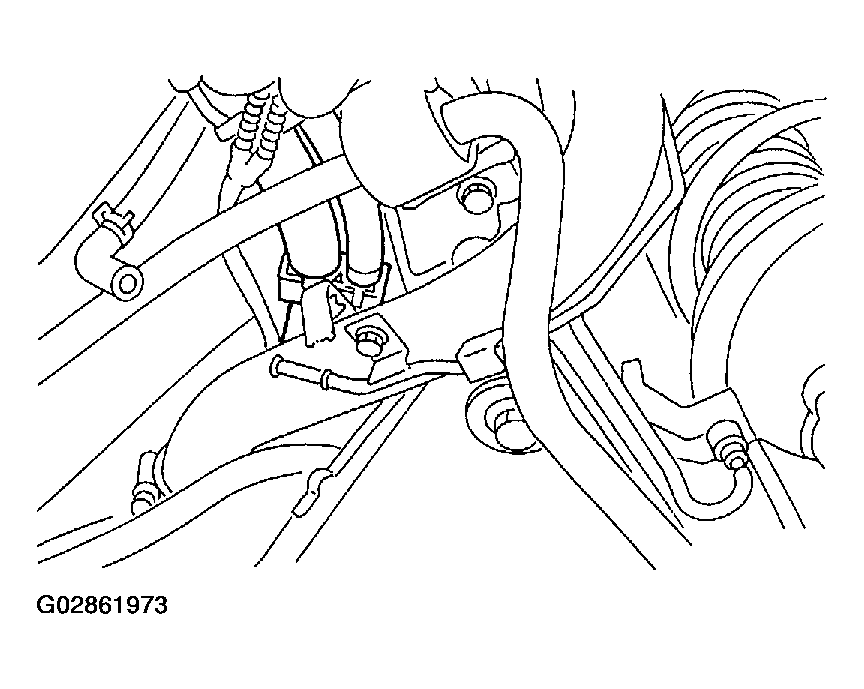

Fig 7: Disconnecting Evaporation Hose From Joint Pipe
Courtesy of SUBARU OF AMERICA, INC.
Loosen clamp, and disconnect fuel filler hose from fuel filler pipe.

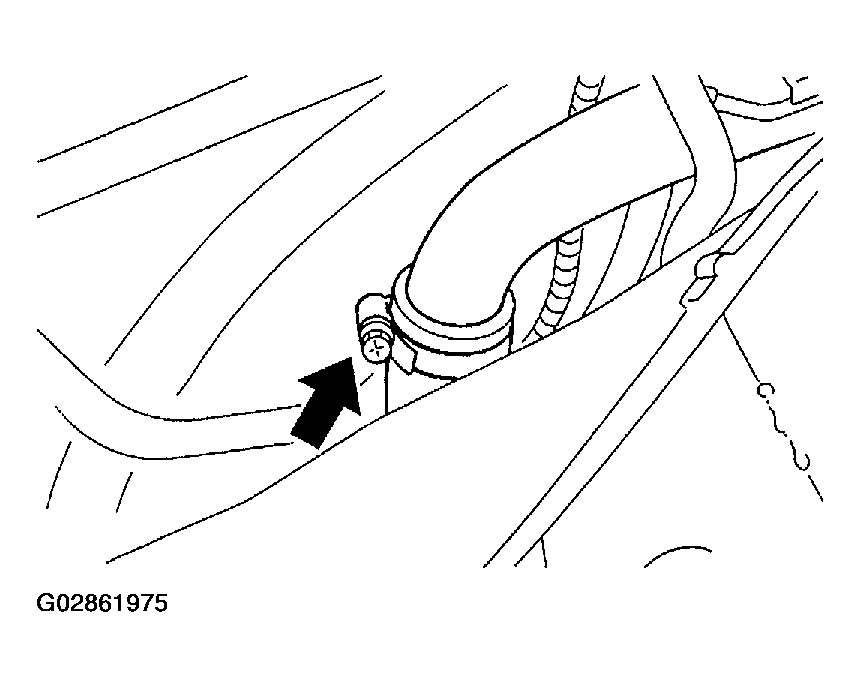

Fig 8: Disconnecting Fuel Filler Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel filler pipe to under side of vehicle.

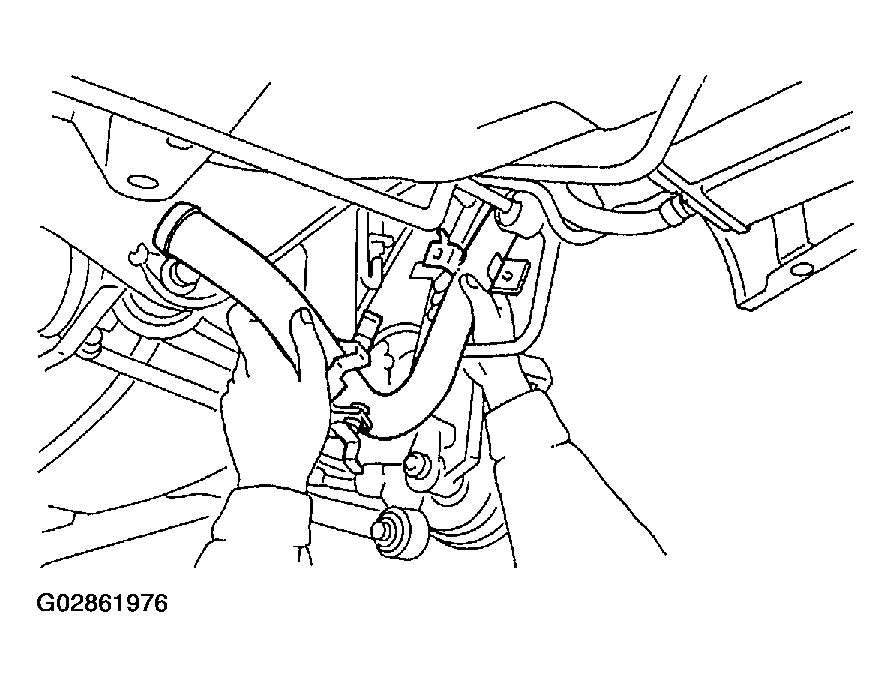

Fig 9: Removing Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
