RH Side

Release fuel pressure. Refer to RELEASING OF FUEL PRESSURE
Open fuel flap lid, and remove fuel filler cap.
Disconnect battery ground cable.

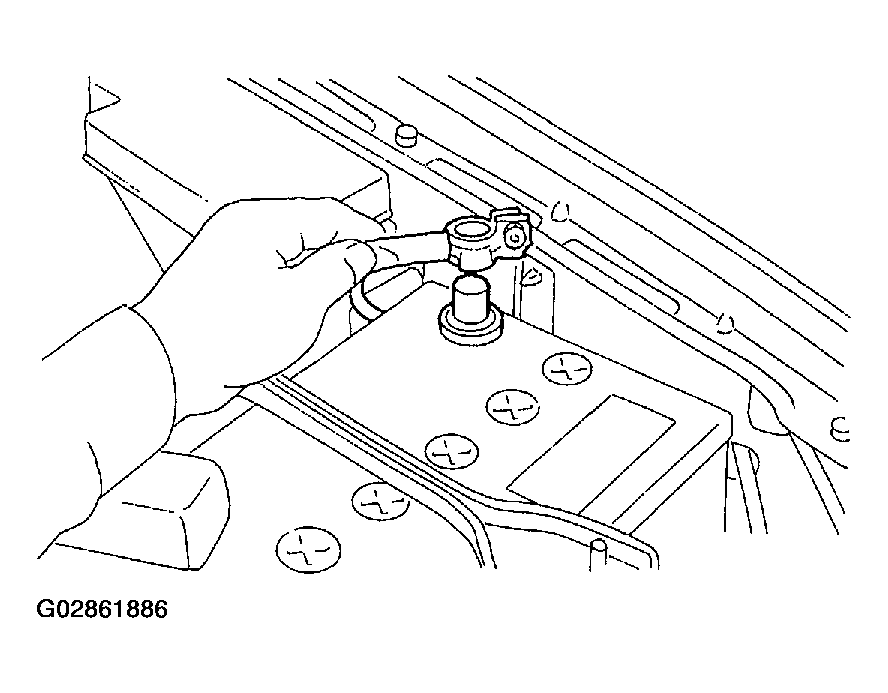

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove resonator chamber. Refer to RESONATOR CHAMBER
Remove power steering pump and tank from brackets.
1. Remove front side V-belt. Refer to V-BELT .
2. Remove bolts which hold power steering pipe bracket onto intake manifold.

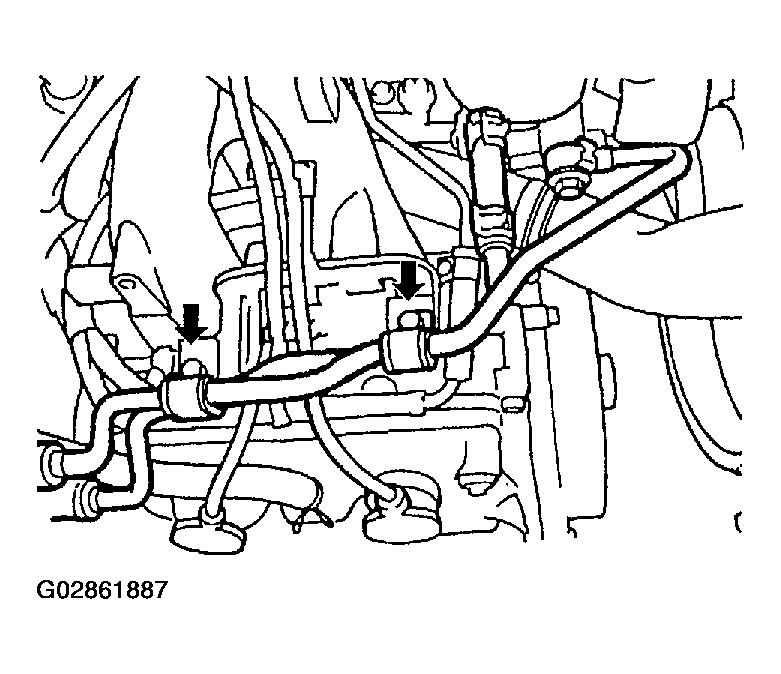

  Fig 2: Removing Power Steering Pipe Bracket Bolts
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove bolts which install power steering pump to bracket.

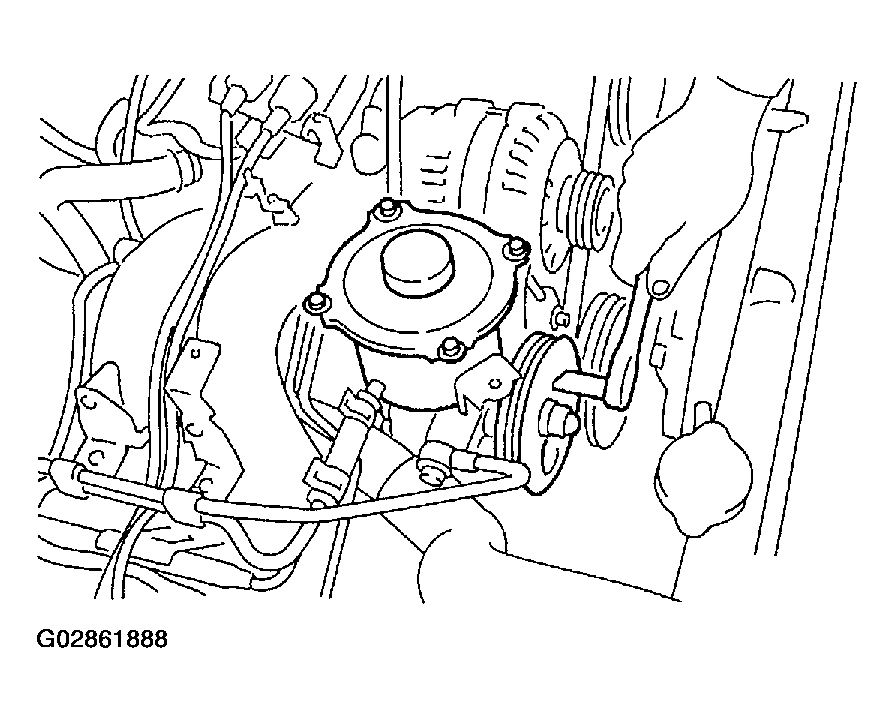

  Fig 3: Removing Power Steering Pump Bolts
  Courtesy of SUBARU OF AMERICA, INC.
4. Disconnect connector from power steering pump switch.

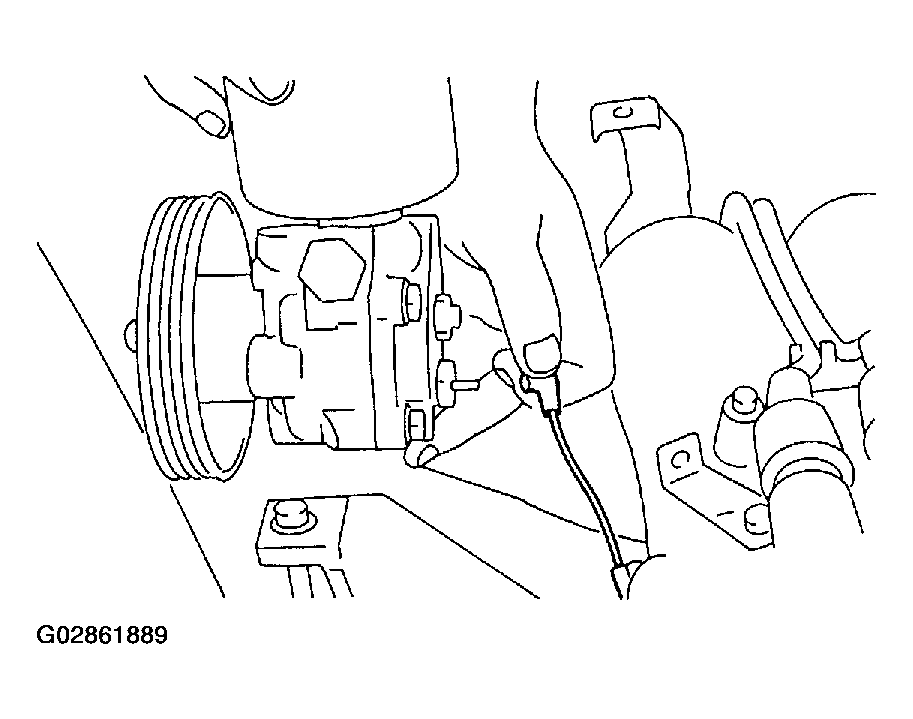

  Fig 4: Disconnecting Connector From Power Steering Pump Switch
  Courtesy of SUBARU OF AMERICA, INC.
5. Place power steering pump and tank on the right side wheel apron.

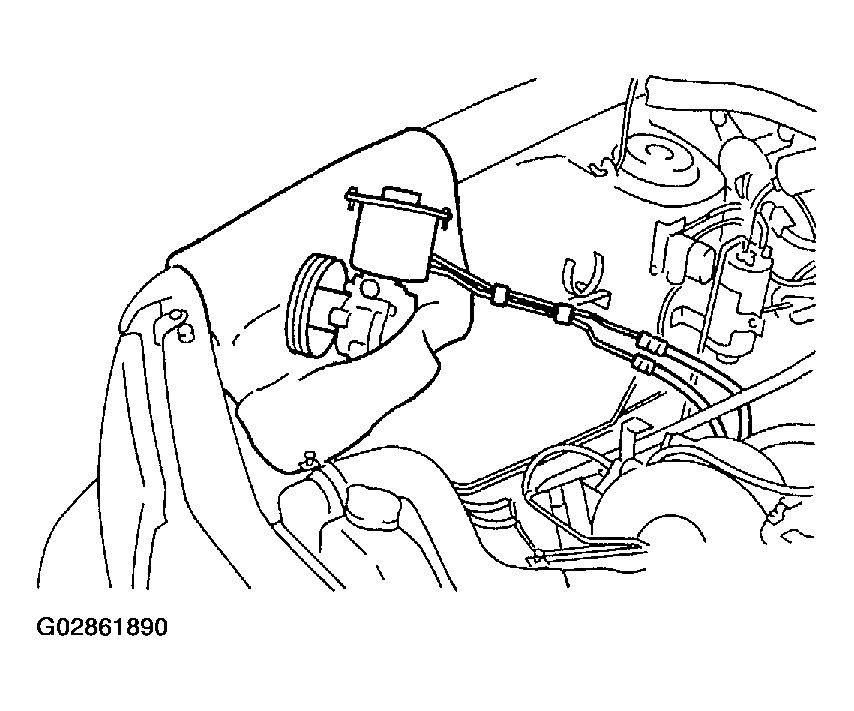

  Fig 5: Placing Power Steering Pump And Tank On The Right Side Wheel Apron
  Courtesy of SUBARU OF AMERICA, INC.
Remove spark plug cords from spark plugs (#1 and #3 cylinders).
Disconnect connector from fuel injector.

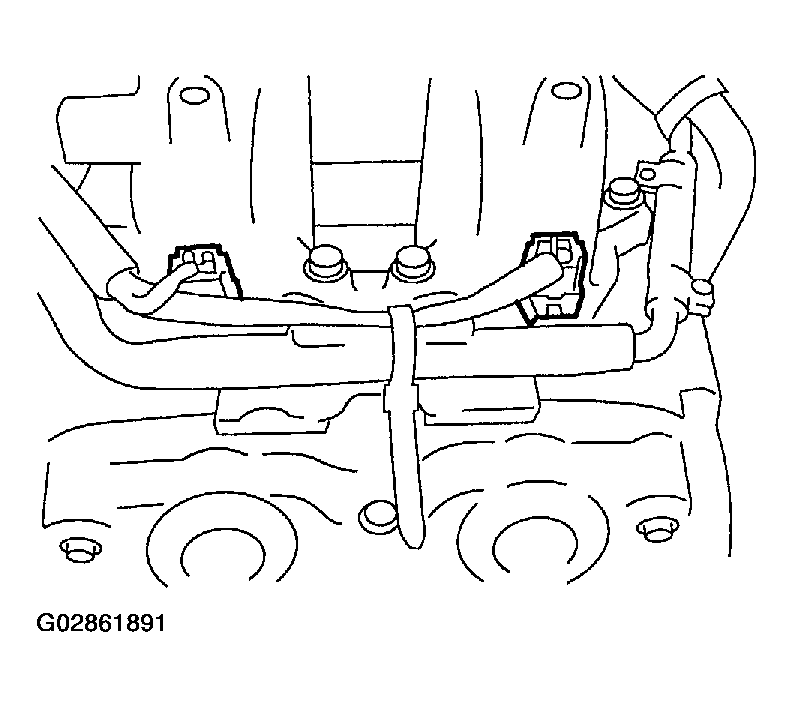

Fig 6: Disconnecting Connector From Fuel Injector
Courtesy of SUBARU OF AMERICA, INC.
Remove bolt which holds injector pipe to intake manifold.

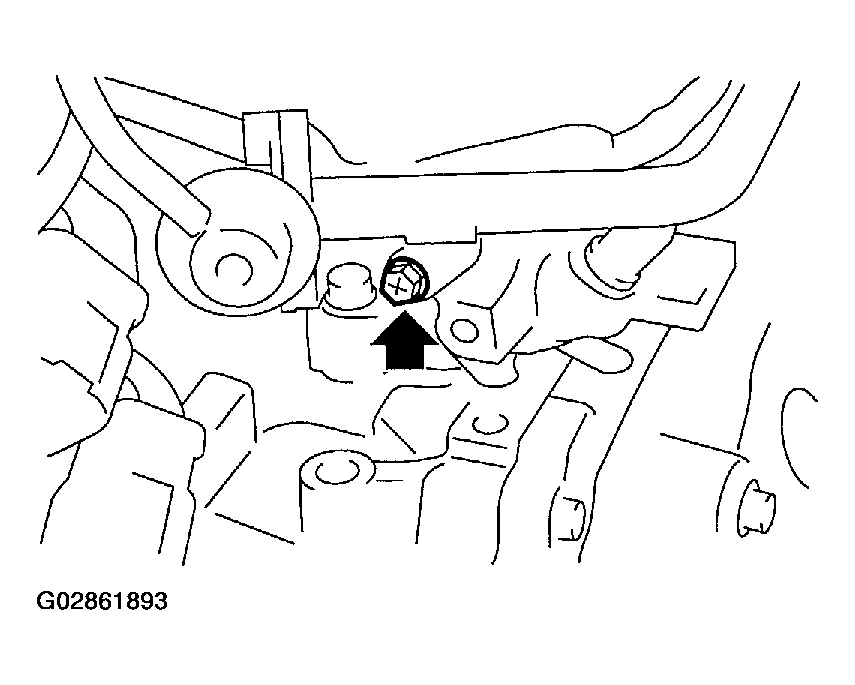

Fig 7: Removing Injector Pipe Bolts (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

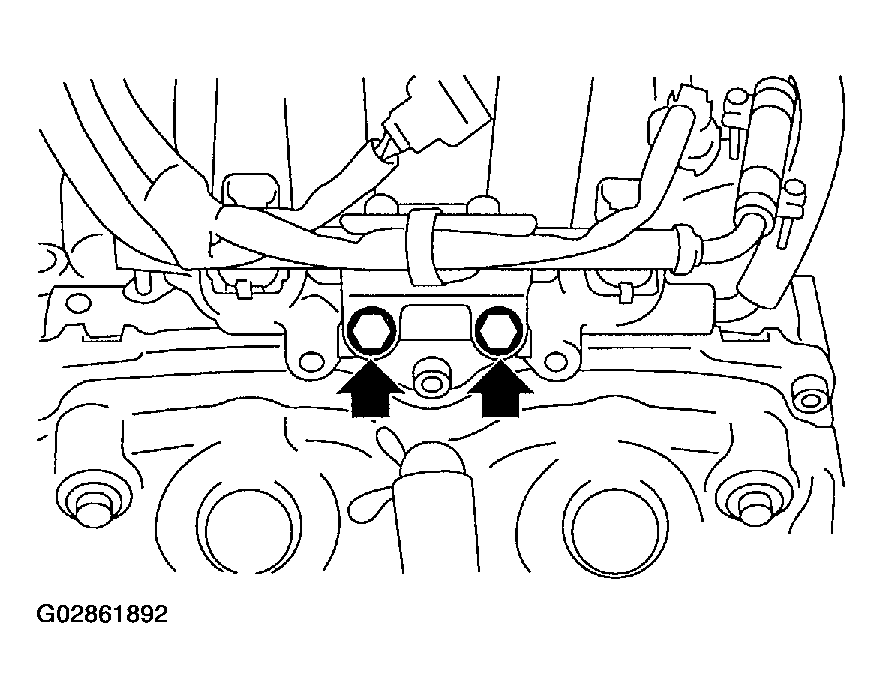

Fig 8: Removing Injector Pipe Bolts (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel injector from intake manifold.
1. Remove fuel injector securing clip.

  Fig 9: Removing Fuel Injector Securing Clip
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove fuel injector while lifting up fuel injector pipe.

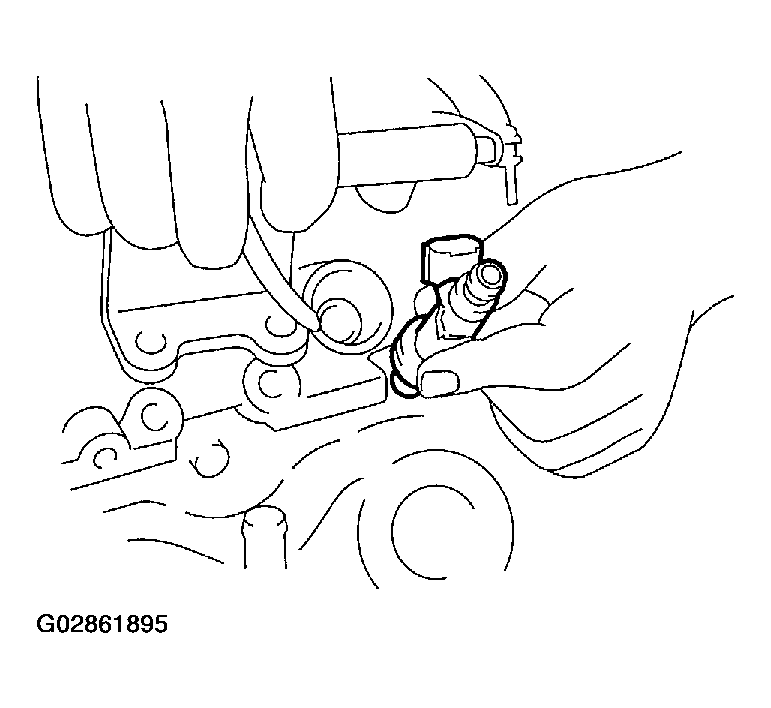

  Fig 10: Removing Fuel Injector
  Courtesy of SUBARU OF AMERICA, INC.
