Fuel Pump: Inspection
WARNING:
- Wipe off the fuel completely.
- Keep battery as far apart from fuel pump as possible.
- Be sure to turn the battery supply ON and OFF on the battery side.
- Do not run fuel pump for a long time under non-load condition.

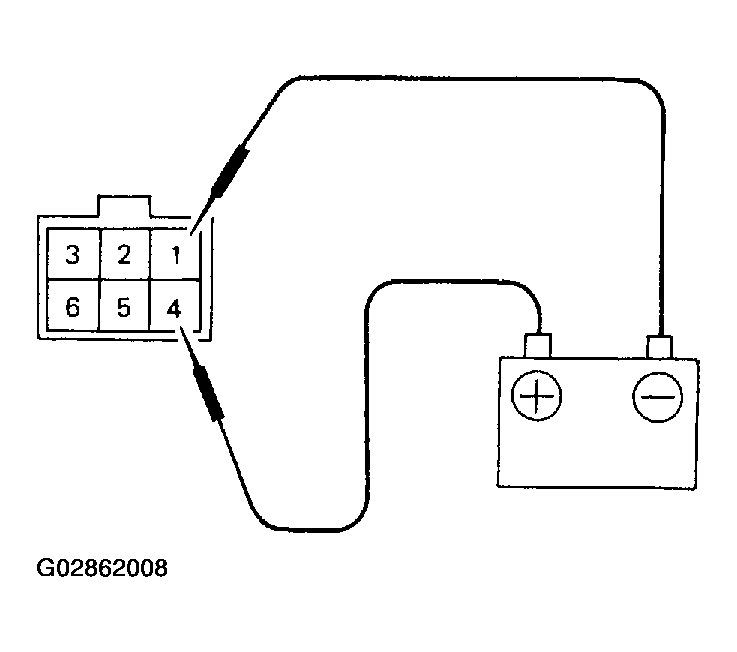

Connect lead harness to connector terminal of fuel pump, and apply battery power supply to check whether the pump operate.
