Fuel Pump: Installation

Install in the reverse order of removal. Do the following:

1. Always use new gaskets.
2. Ensure sealing portion is free from fuel or foreign particles before installation.
3. Tighten nuts in alphabetical sequence shown in the figure to specified torque.

   Tightening torque:  4.4 N.m (0.45 kgf-m, 3.3 ft-lb)

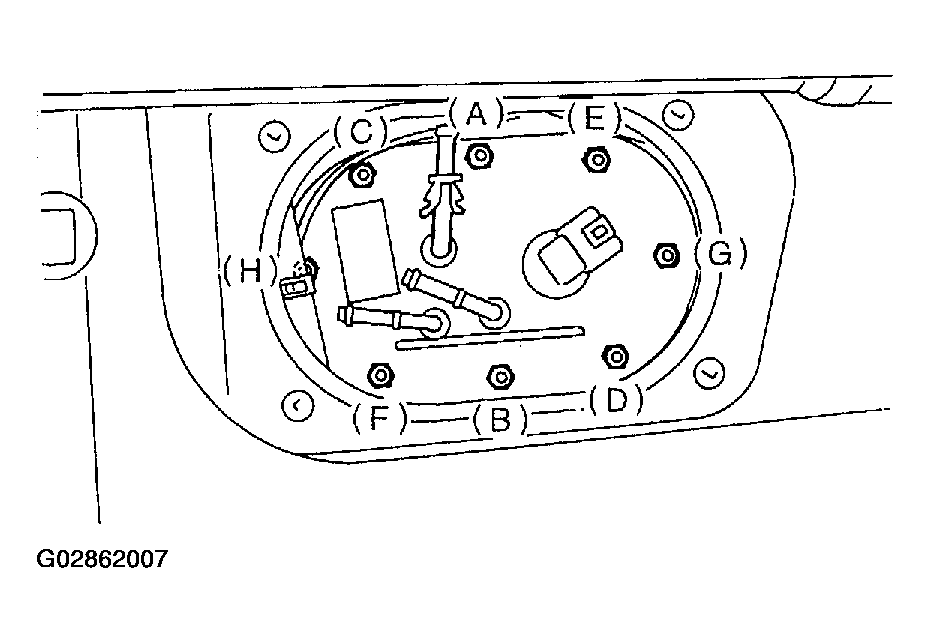

   Fig 1: Installing Fuel Pump

   Courtesy of SUBARU OF AMERICA, INC.
