Fuel Pump: Removal

WARNING:

Release fuel pressure. Refer to RELEASING OF FUEL PRESSURE
Open fuel filler flap lid, and remove fuel filler cap.

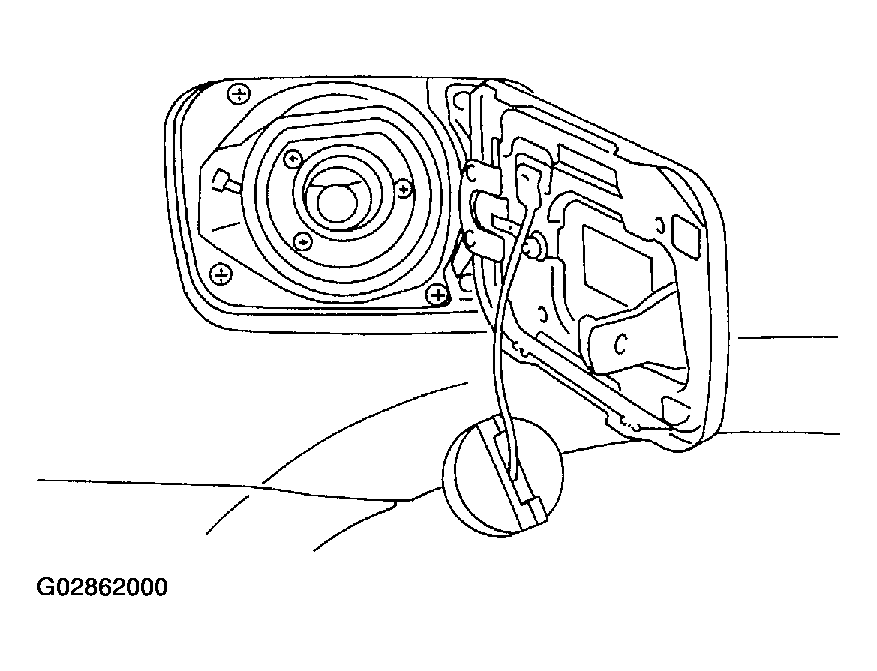

Fig 1: Removing Fuel Filler Cap
Courtesy of SUBARU OF AMERICA, INC.
Disconnect battery ground cable.

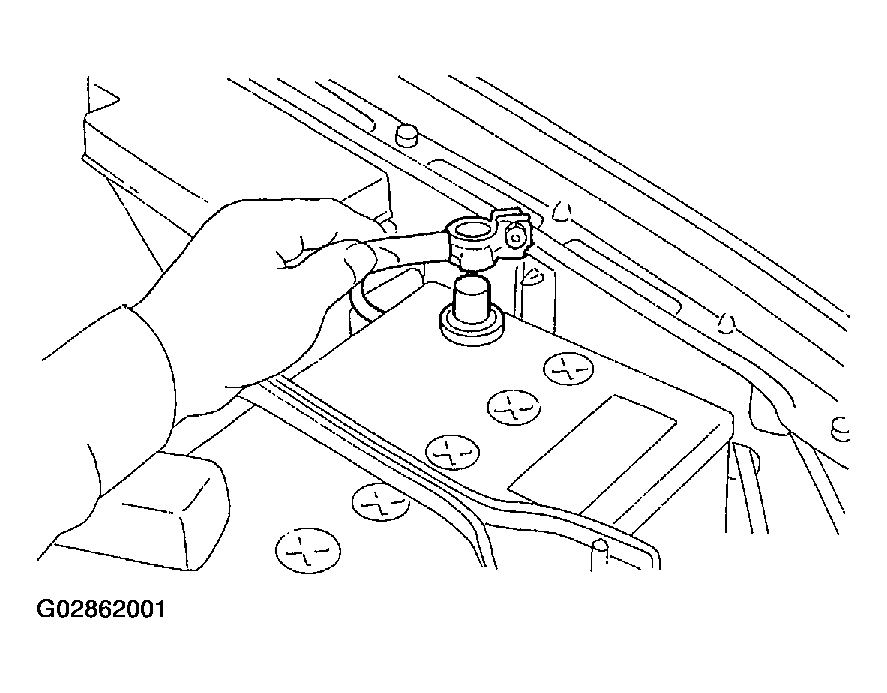

Fig 2: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the floor box located just behind the rear seats.
Remove access hole lid.

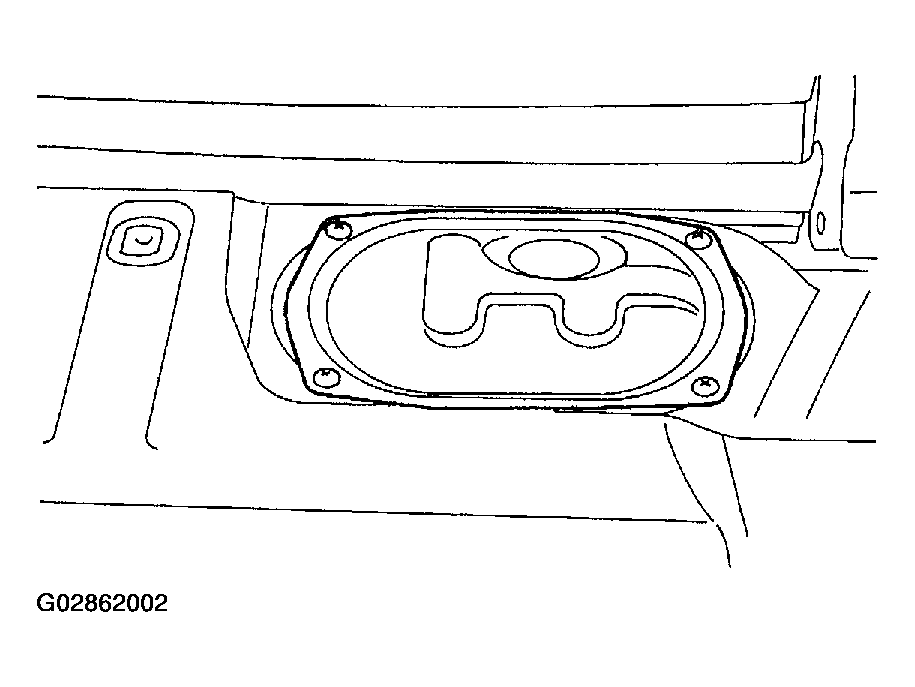

Fig 3: Removing Access Hole Lid
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from fuel pump.

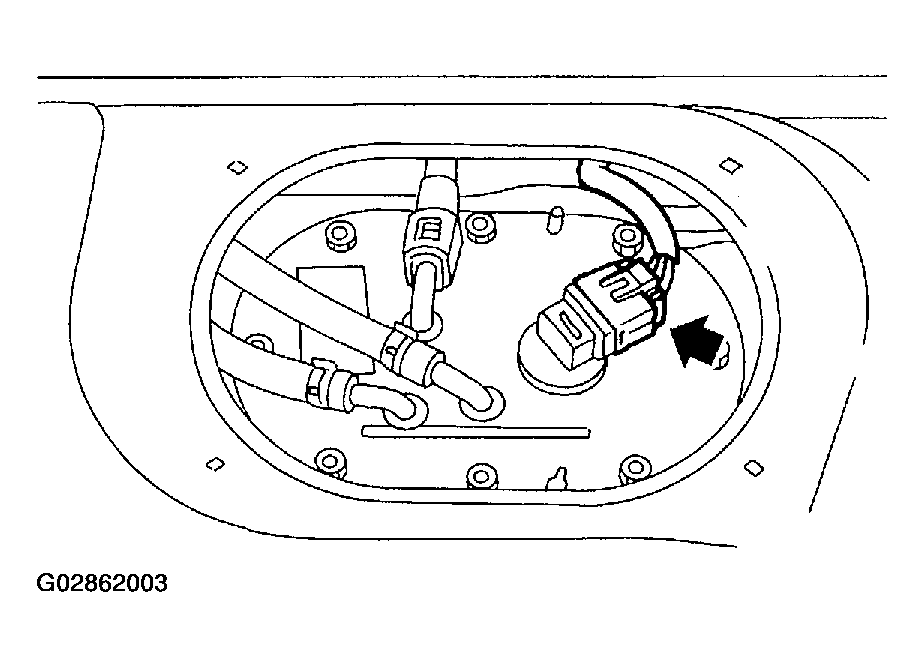

Fig 4: Disconnecting Connector From Fuel Pump
Courtesy of SUBARU OF AMERICA, INC.
Move clips, and then disconnect fuel delivery hose (A), return hose (B) and jet pump hose (C).
Disconnect quick connector, and then disconnect fuel delivery hose (A). Refer to Fuel Delivery, Return and Evaporation Lines .

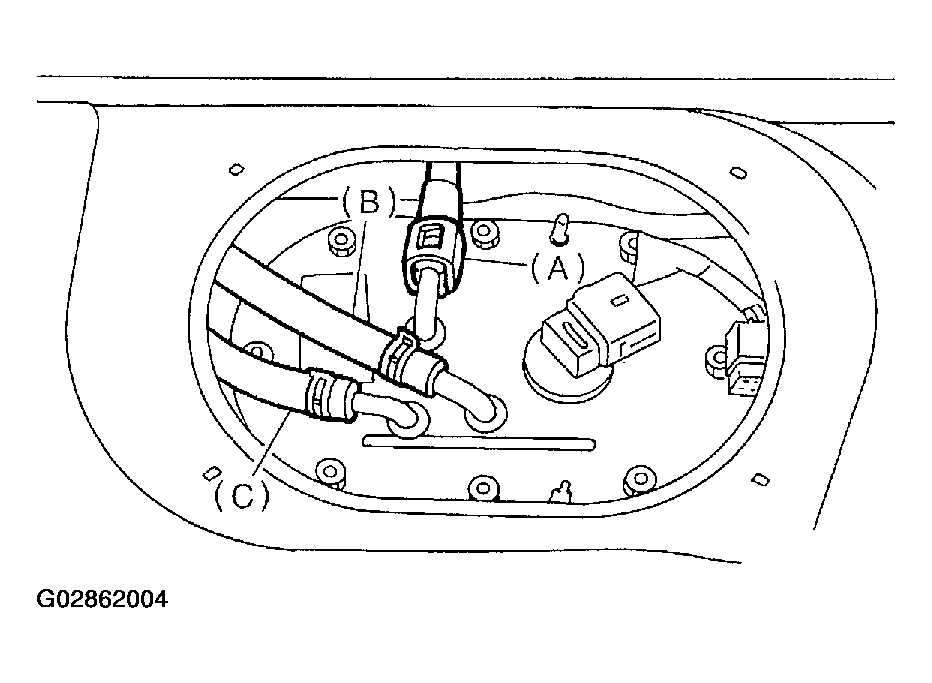

Fig 5: Disconnecting Fuel Delivery Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts which install fuel pump assembly onto fuel tank.

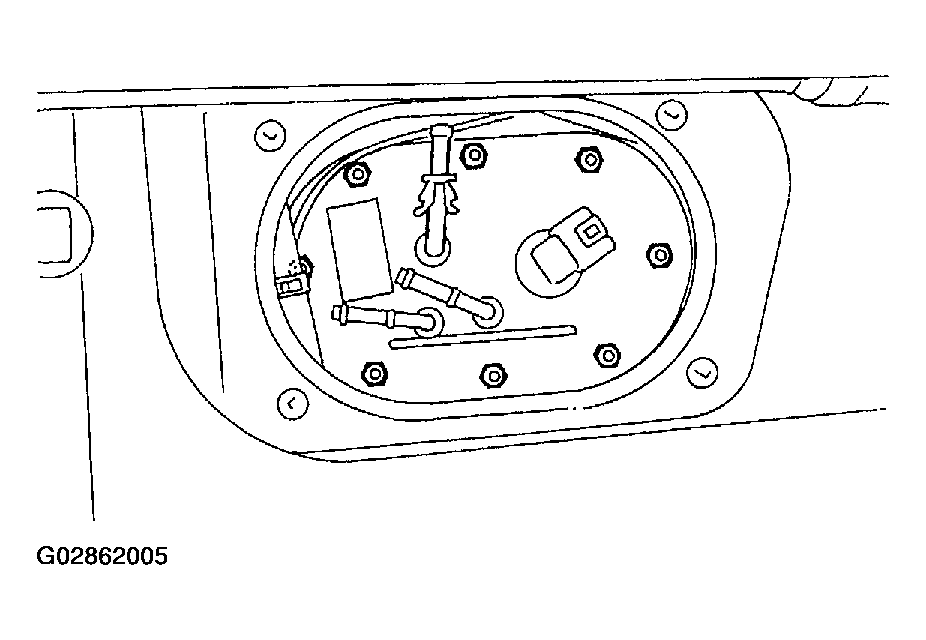

Fig 6: Removing Fuel Pump Assembly Nuts
Courtesy of SUBARU OF AMERICA, INC.
Take off fuel pump from fuel tank.

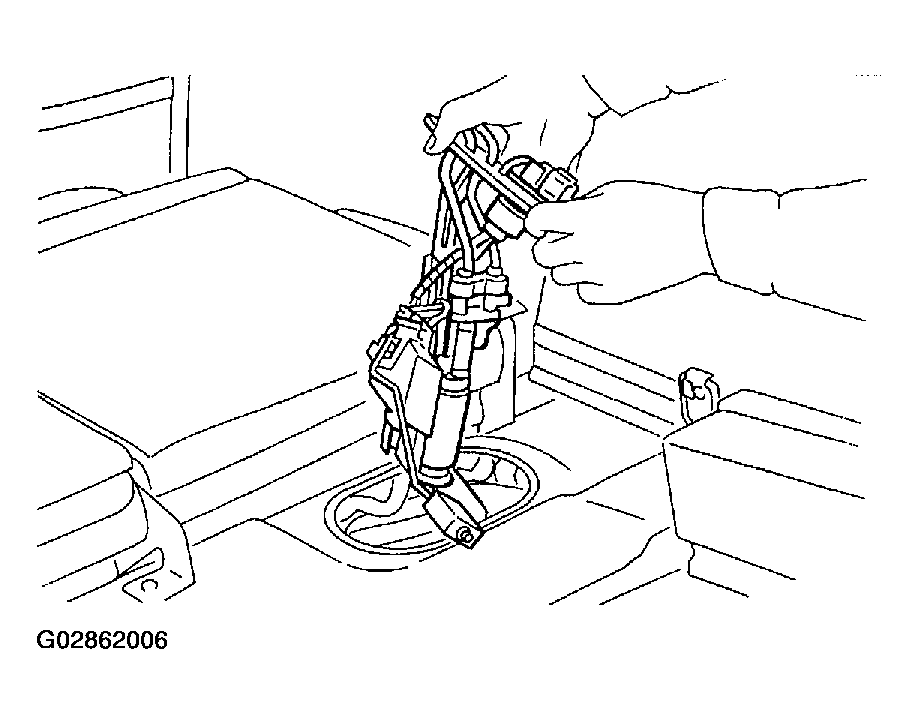

Fig 7: Removing Fuel Pump
Courtesy of SUBARU OF AMERICA, INC.
