Fuel Tank: Installation

Support fuel tank with transmission jack and push fuel tank harness into access hole with grom-met.
Set fuel tank and temporarily tighten bolts of fuel tank bands.
WARNING: A helper is required to perform this work.

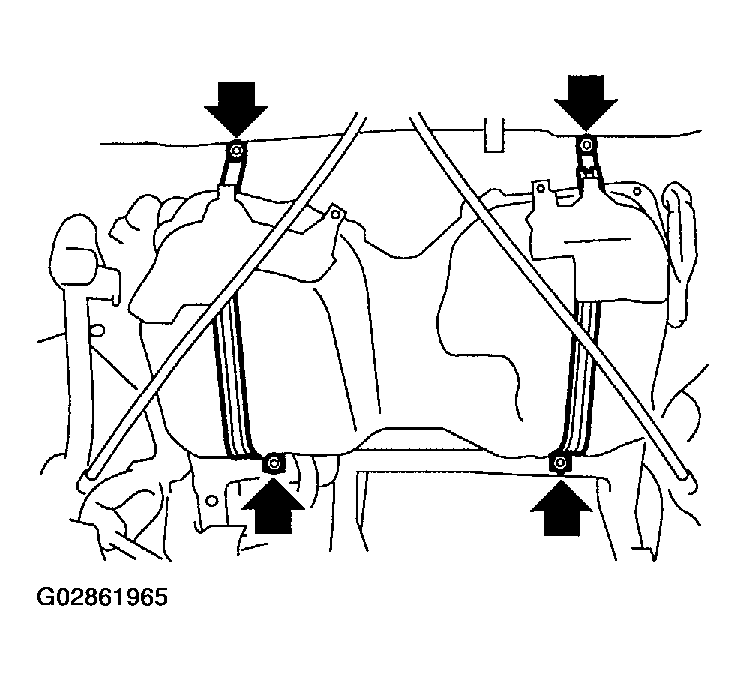

Fig 1: Tightening Bolts Of Fuel Tank Bands
Courtesy of SUBARU OF AMERICA, INC.
Connect fuel filler hose (A) and air vent hose (B).

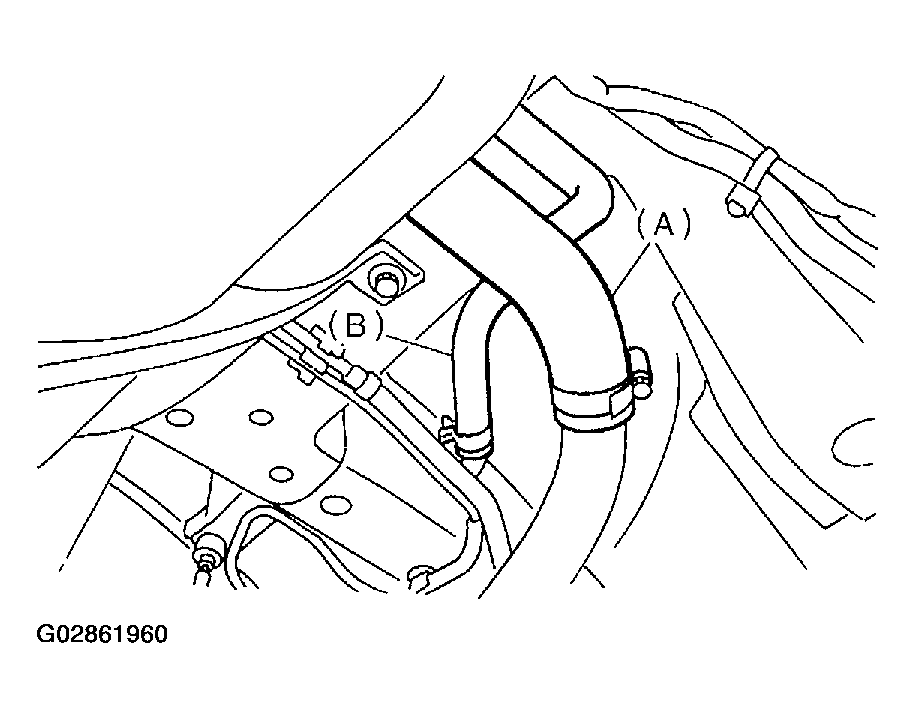

Fig 2: Connecting Fuel Filler Hose And Air Vent Hose
Courtesy of SUBARU OF AMERICA, INC.
Connect fuel hoses, and hold then with clips and quick connector. Refer to Fuel Delivery, Return and Evaporation Lines .

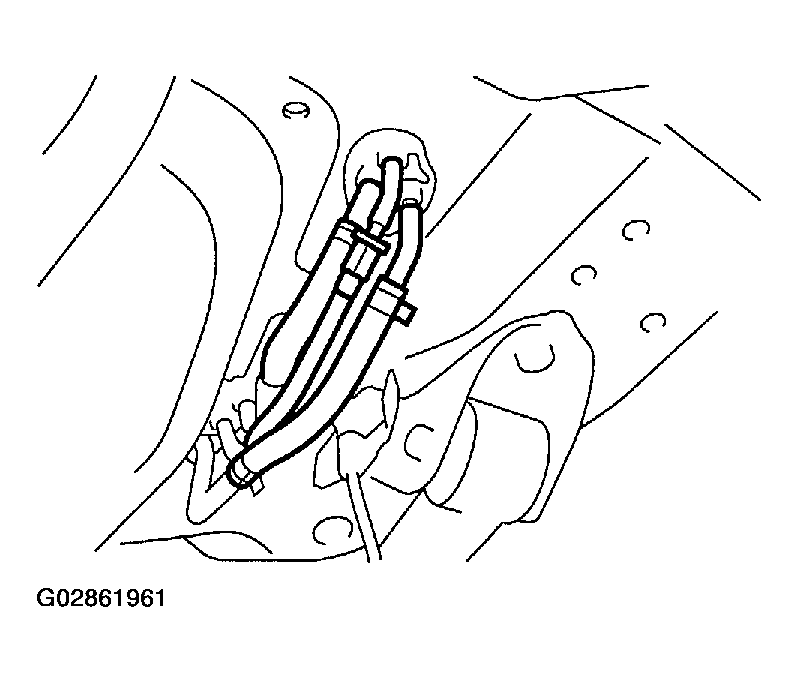

Fig 3: Connecting Fuel Hoses
Courtesy of SUBARU OF AMERICA, INC.
Connect connector to drain valve.

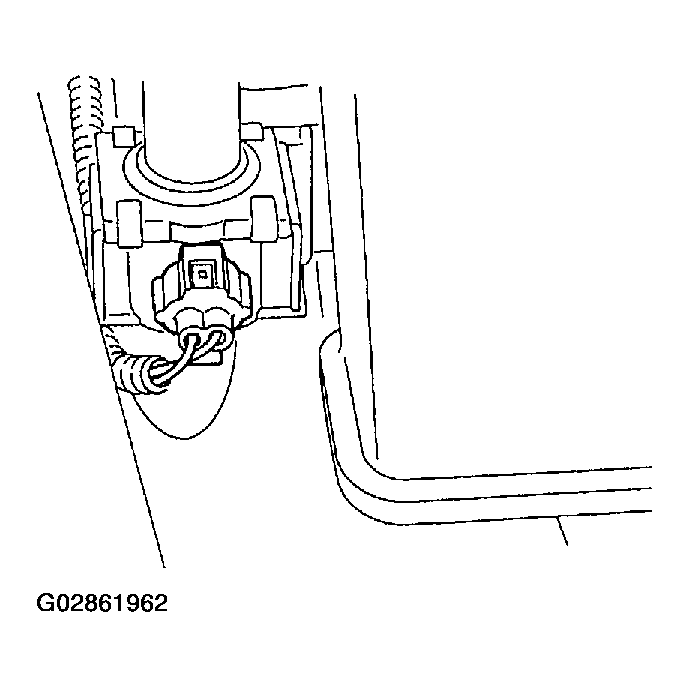

Fig 4: Connecting Connector To Drain Valve
Courtesy of SUBARU OF AMERICA, INC.
Connect connector to pressure control solenoid valve.
Connect evaporation hose to canister, and hold them with clamp.

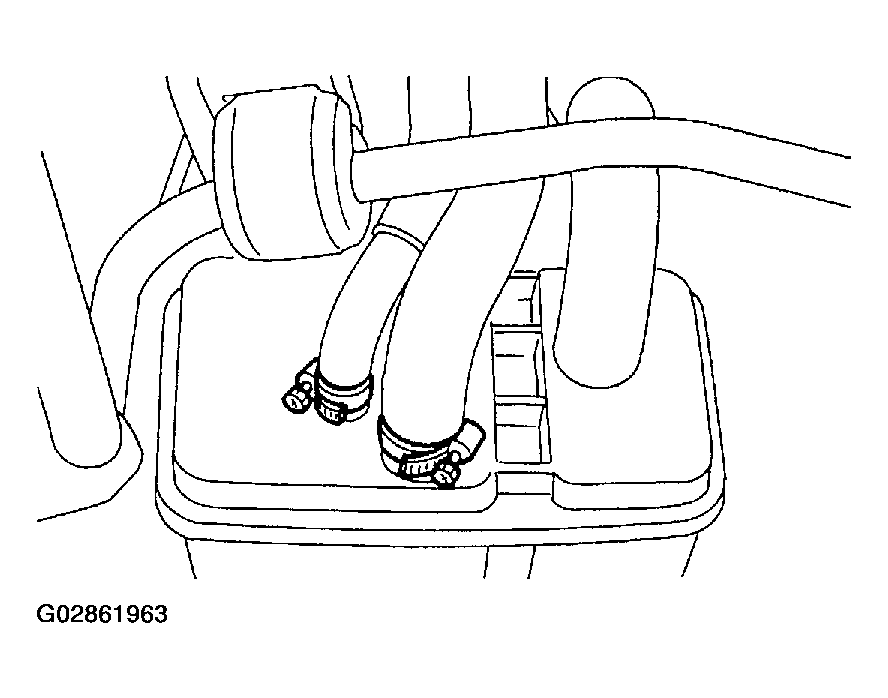

Fig 5: Connecting Evaporation Hose To Canister
Courtesy of SUBARU OF AMERICA, INC.
Connect hoses to roll over valve.

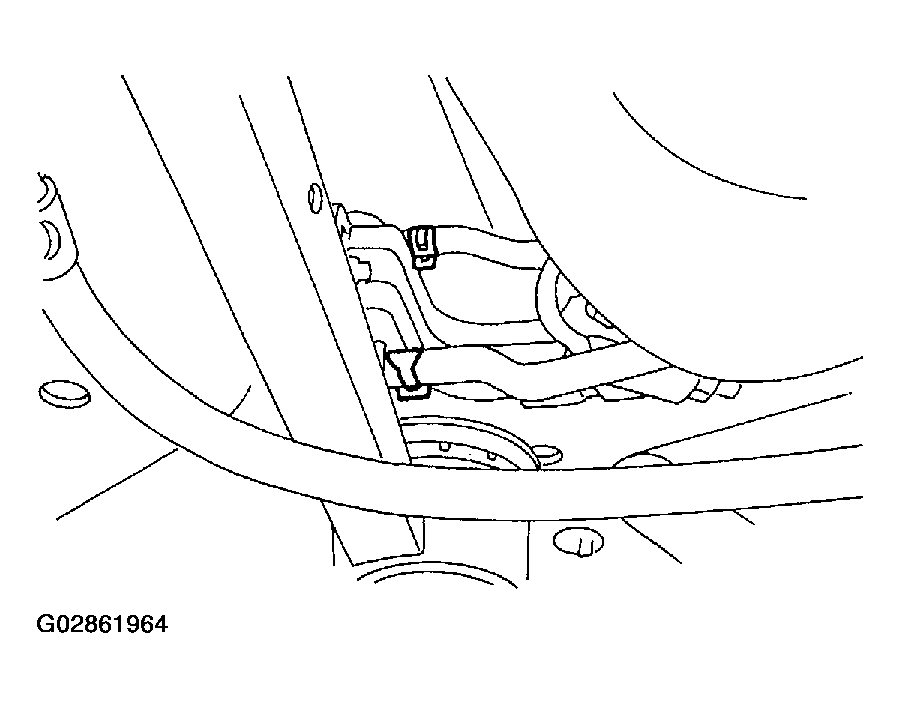

Fig 6: Connecting Hoses To Roll Over Valve
Courtesy of SUBARU OF AMERICA, INC.
Tighten band mounting bolts.
Tightening torque: 33 N.m (3.4 kgf-m, 25 ft-lb)

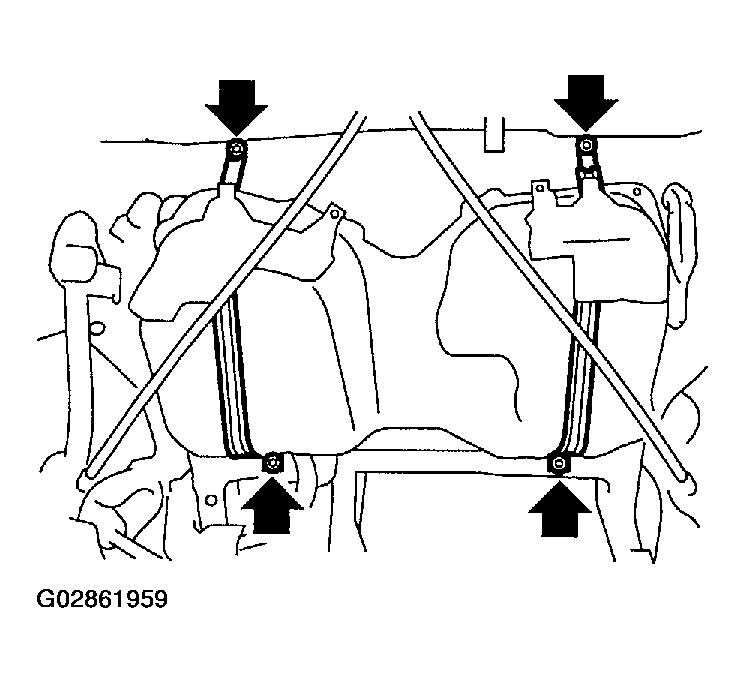

Fig 7: Tightening Band Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install rear crossmember. Refer to CROSSMEMBER .
Connect connectors to fuel tank cord and plug service hole with grommet.

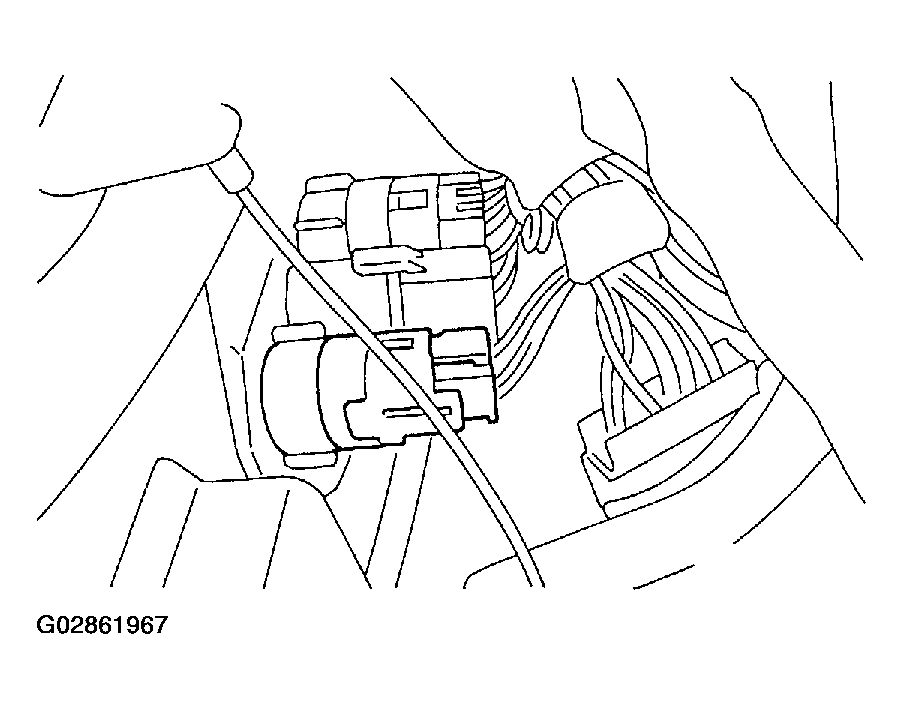

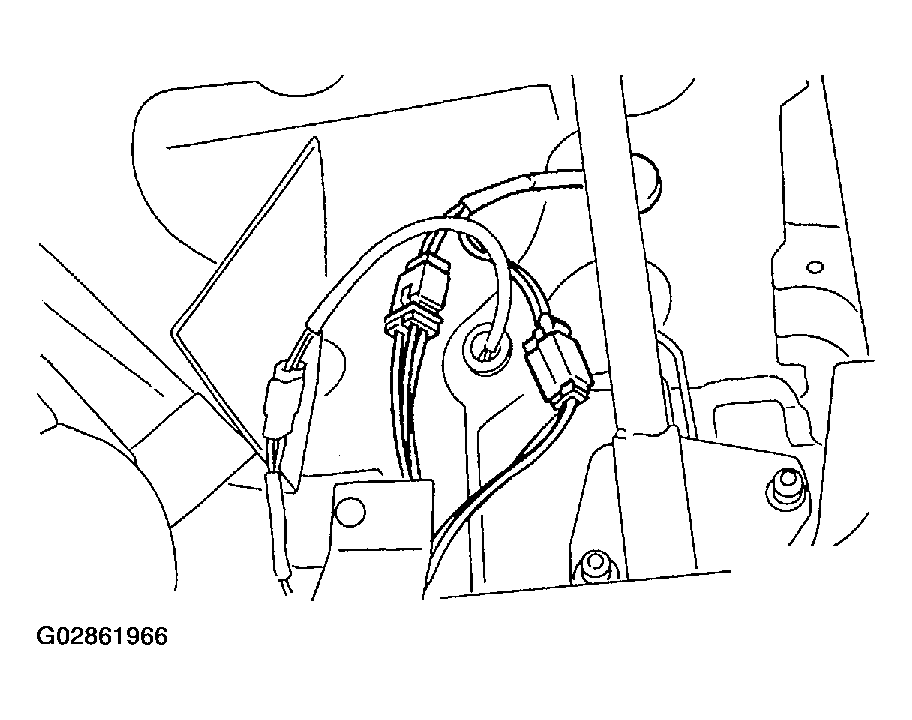

Fig 8: Connecting Connectors To Fuel Tank Cord
Courtesy of SUBARU OF AMERICA, INC.
Set rear seat and floor mat.
Connect connector to fuel pump relay.

Fig 9: Connecting Connector To Fuel Pump Relay
Courtesy of SUBARU OF AMERICA, INC.
