Draining Of Fuel

WARNING:

Place "No fire" signs near the working area.
Be careful not to spill fuel on the floor.

Release fuel pressure. Refer to RELEASING OF FUEL PRESSURE .
Open fuel flap lid, and remove fuel filler cap.

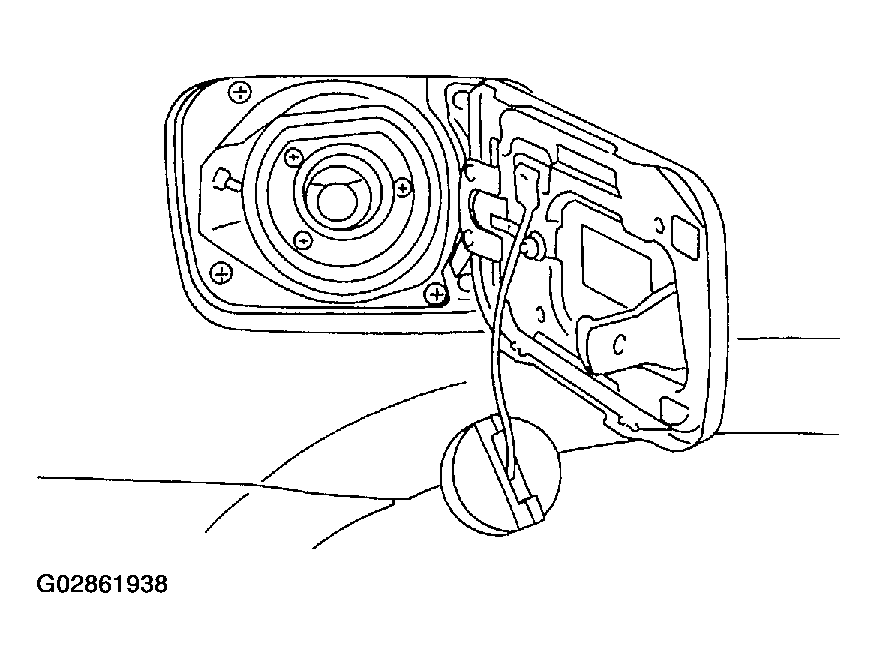

Fig 1: Removing Fuel Filler Cap
Courtesy of SUBARU OF AMERICA, INC.
Disconnect battery ground cable.

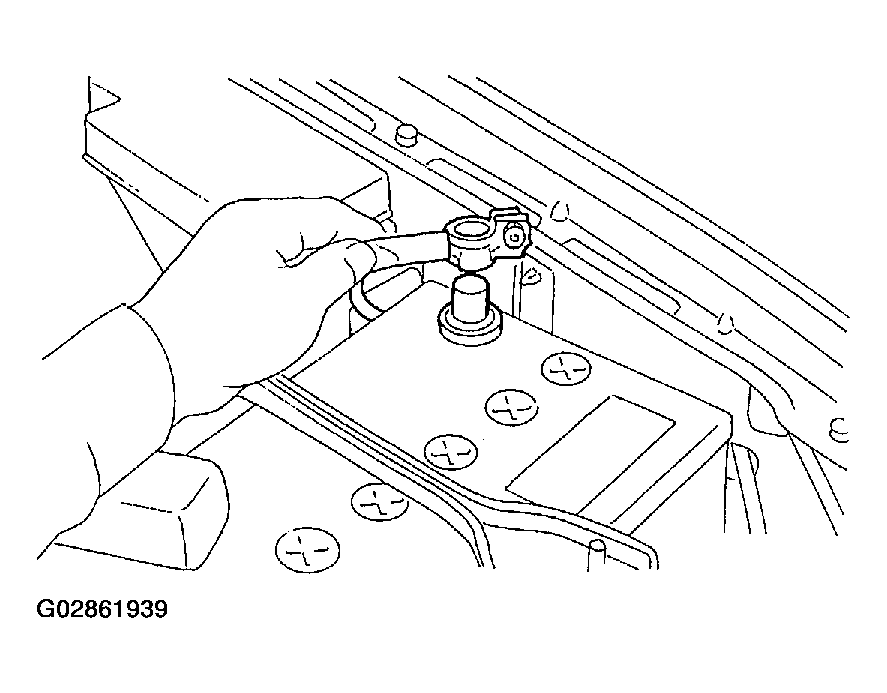

Fig 2: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the floor box located just behind the rear seats.
Remove access hole lid.

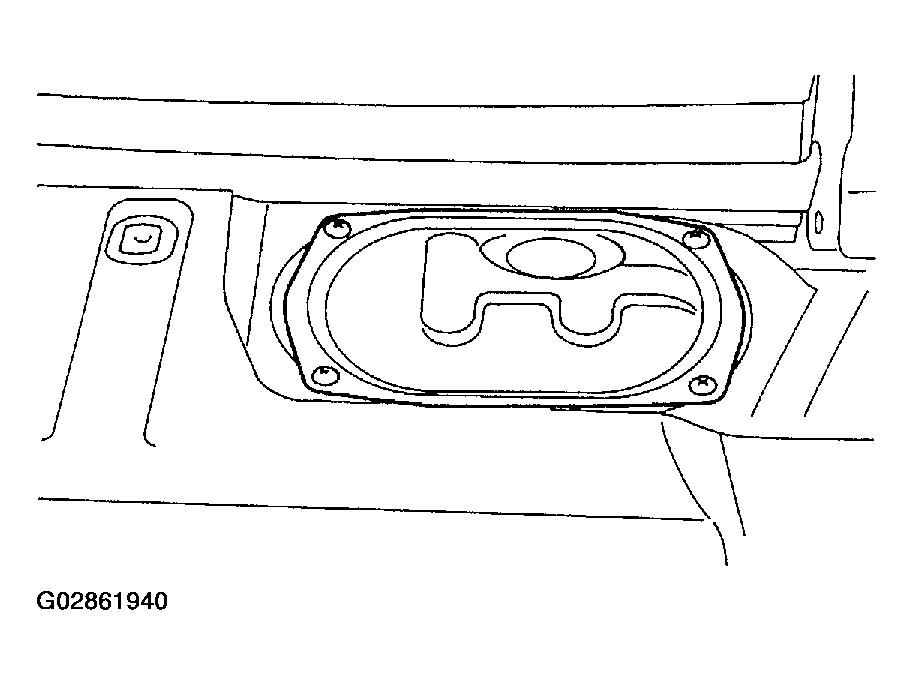

Fig 3: Removing Access Hole Lid
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from fuel pump.

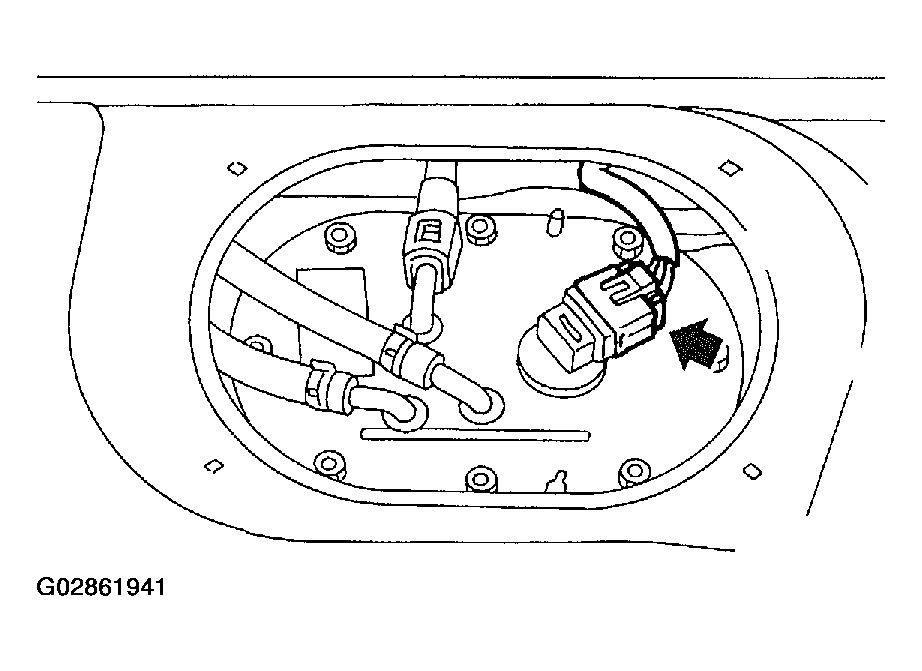

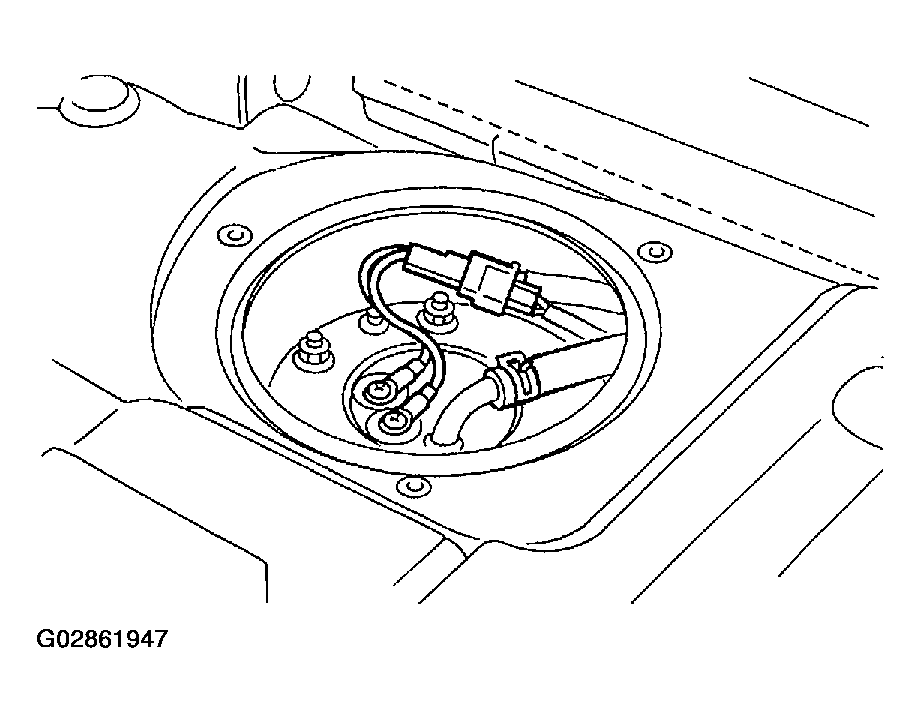

Fig 4: Disconnecting Connector From Fuel Pump
Courtesy of SUBARU OF AMERICA, INC.
Disconnect quick connector, and then disconnect fuel delivery hose (A). Refer to Fuel Delivery, Return and Evaporation Lines .
Move clips, and then disconnect fuel return hose (B) and jet pump hose (C).

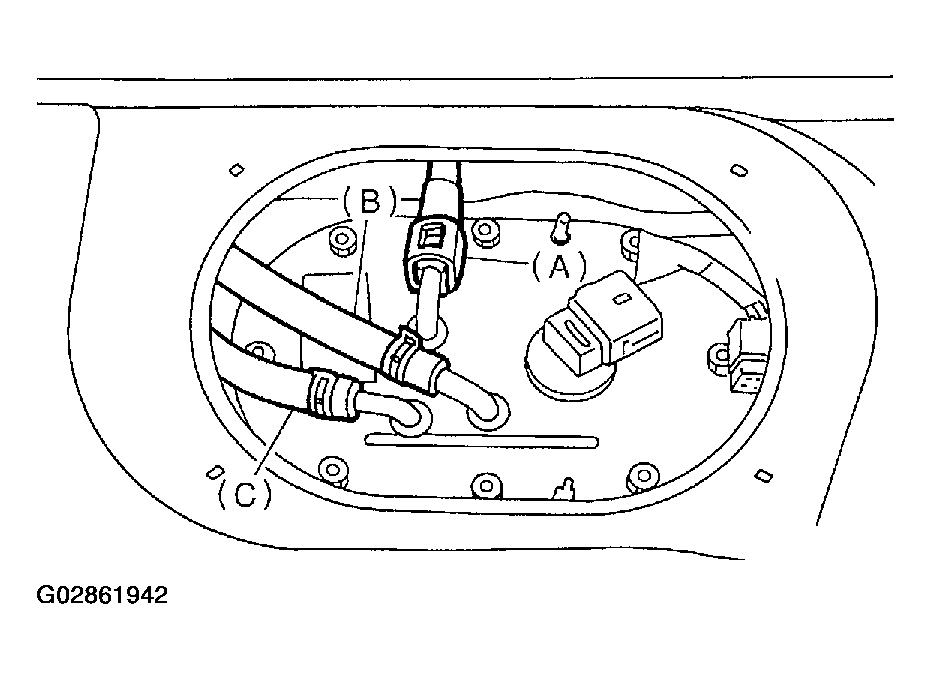

Fig 5: Disconnecting Fuel Return Hose And Jet Pump Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove nuts which install fuel pump assembly onto fuel tank.

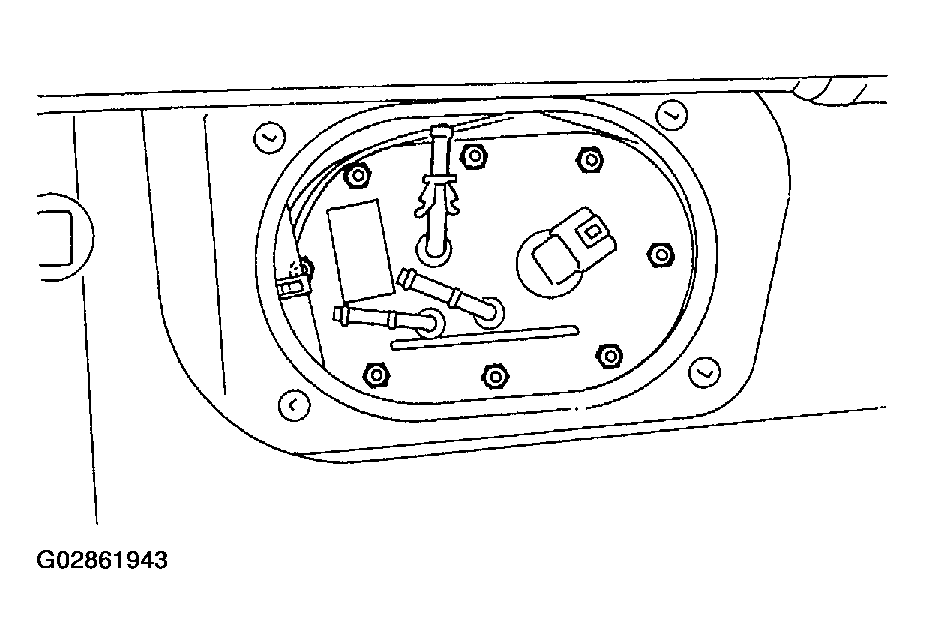

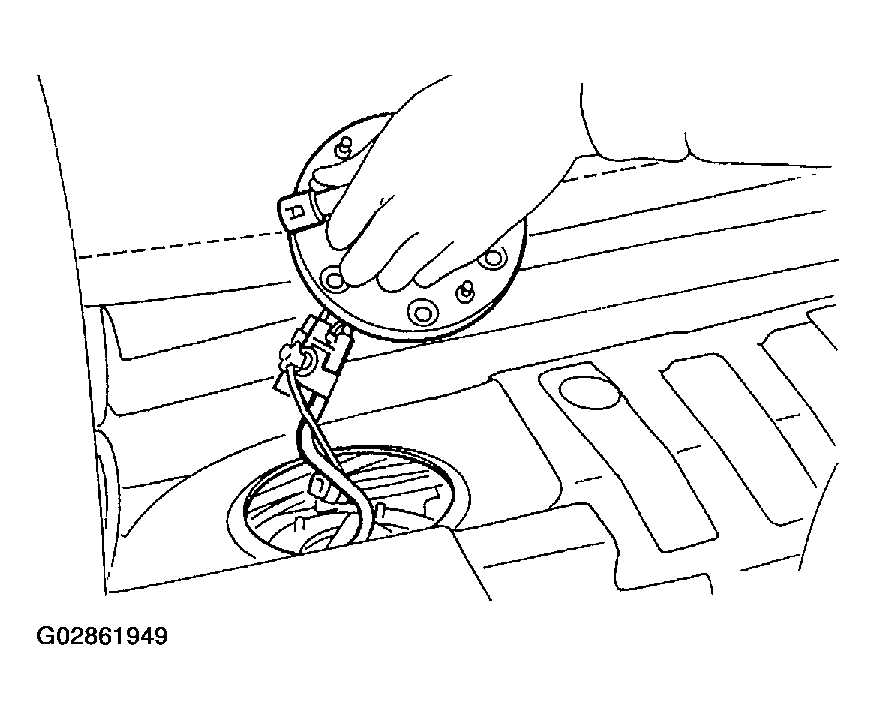

Fig 6: Removing Fuel Pump Assembly Nuts
Courtesy of SUBARU OF AMERICA, INC.
Take off fuel pump from fuel tank.

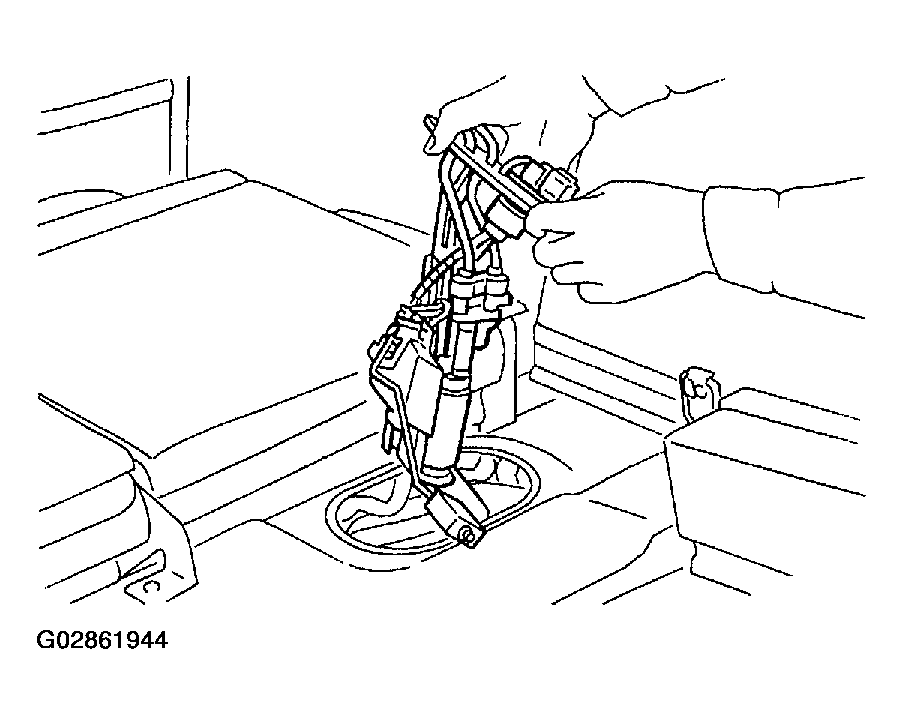

Fig 7: Removing Fuel Pump
Courtesy of SUBARU OF AMERICA, INC.
Drain fuel from fuel tank by using a hand pump.
WARNING: Do not use a motor pump when draining fuel.

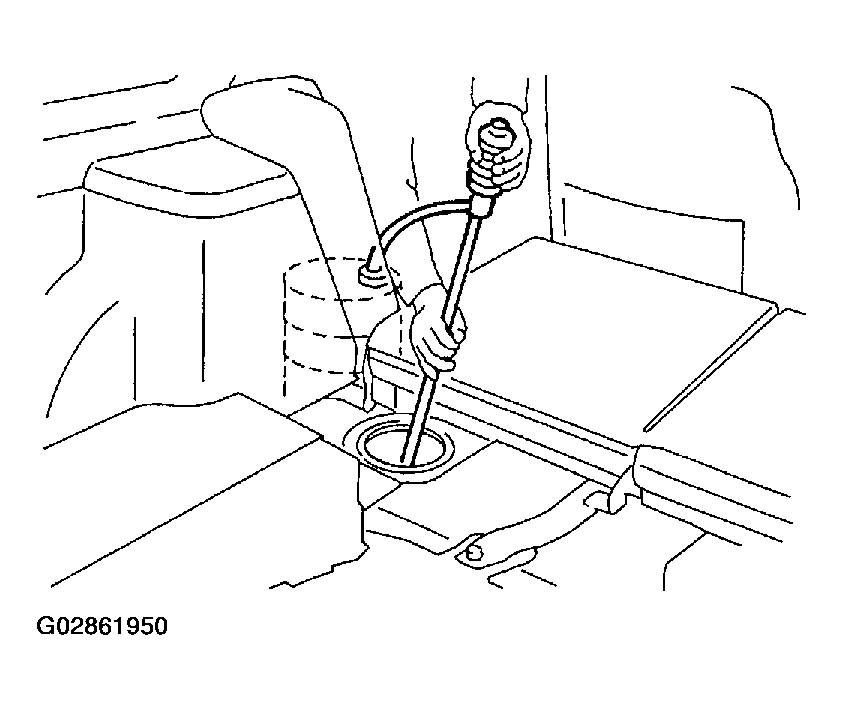

Fig 8: Draining Fuel
Courtesy of SUBARU OF AMERICA, INC.
Remove service hole cover.

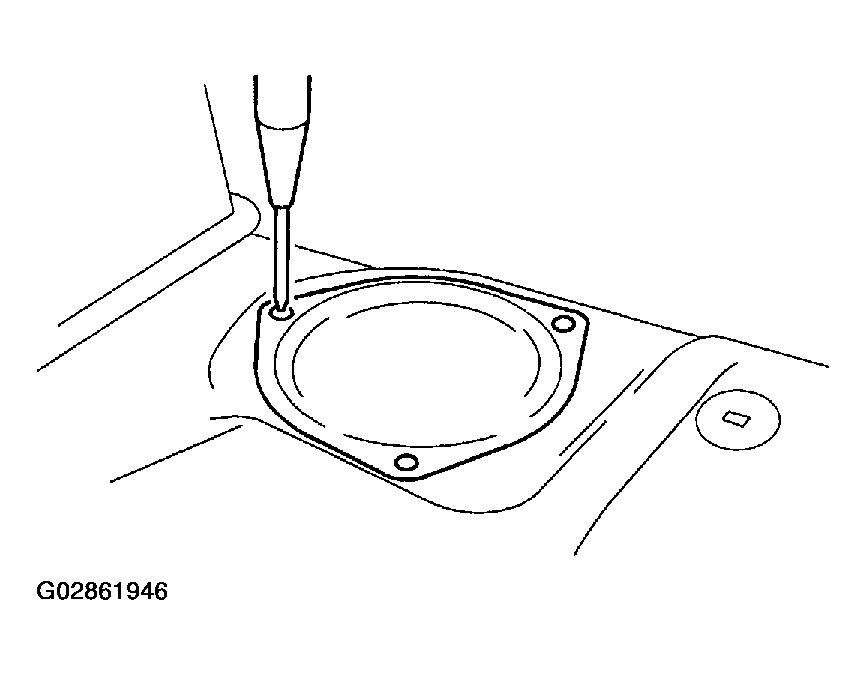

Fig 9: Removing Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from fuel sub meter.
Disconnect fuel jet pump hose.

Fig 10: Disconnecting Fuel Jet Pump Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which install fuel sub meter unit on fuel tank.

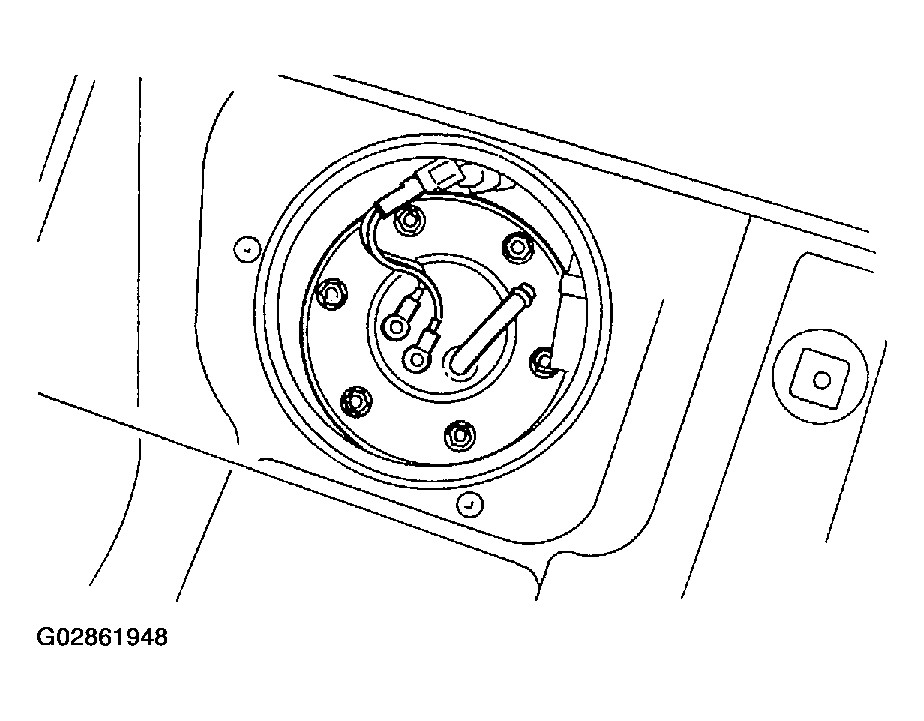

Fig 11: Removing Fuel Sub Meter Unit Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove fuel sub meter unit.

Fig 12: Removing Fuel Sub Meter Unit
Courtesy of SUBARU OF AMERICA, INC.
Drain fuel from there.
WARNING: Do not use a motor pump when draining fuel.

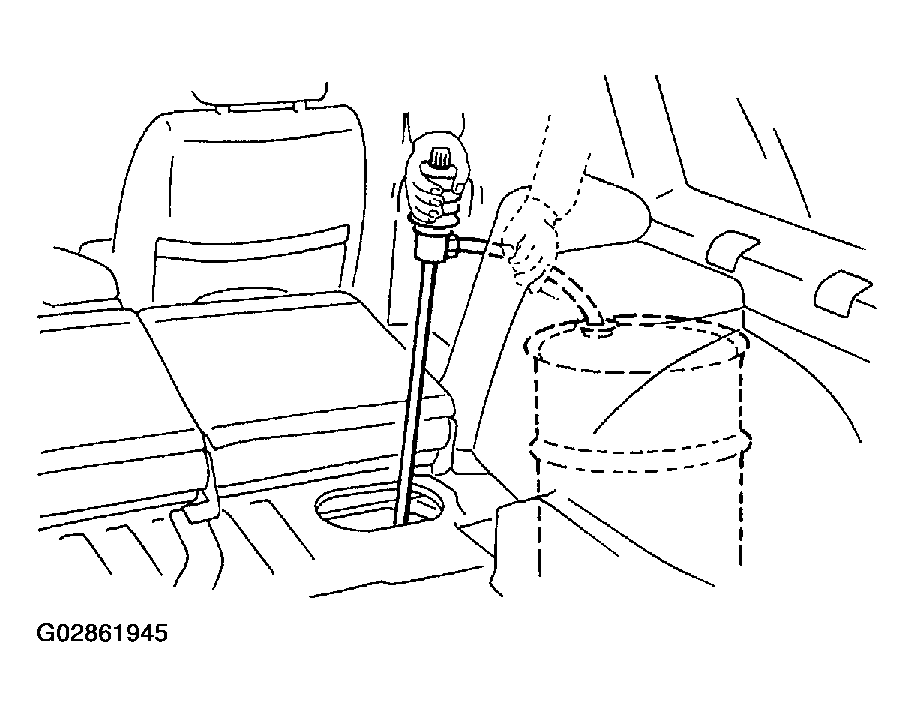

Fig 13: Draining Fuel
Courtesy of SUBARU OF AMERICA, INC.
