Releasing Of Fuel Pressure

WARNING:
  • Place "No fire" signs near the working area.
  • Disconnect ground terminal from battery.
    • Fig 1: Disconnecting Battery Ground Cable
    G02861934Courtesy of SUBARU OF AMERICA, INC.
  1. Disconnect connector from fuel pump relay.

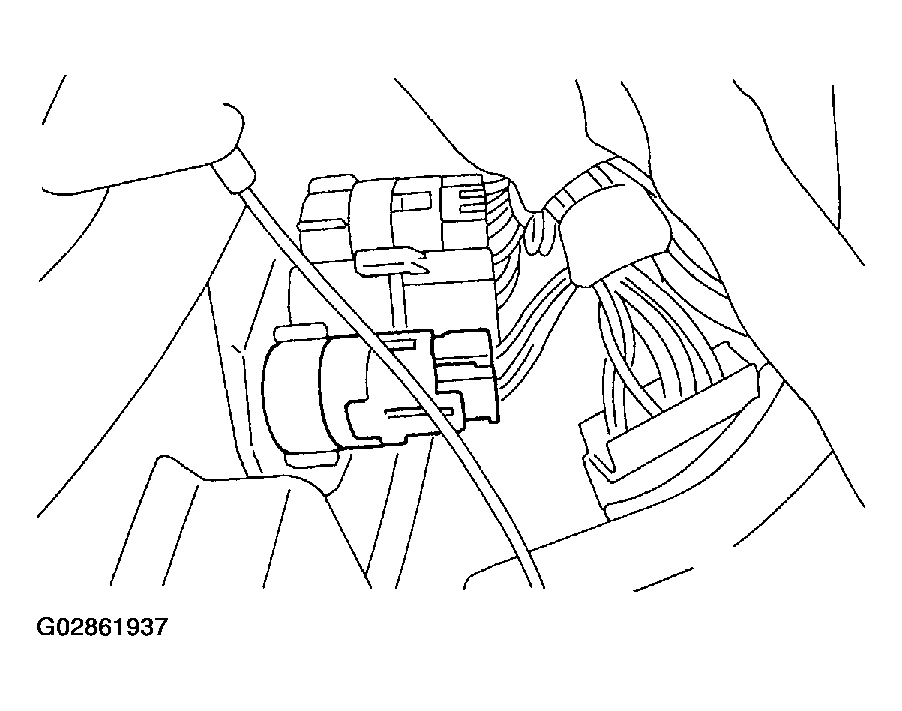

    Fig 2: Disconnecting Connector From Fuel Pump Relay
    G02861937Courtesy of SUBARU OF AMERICA, INC.
  2. Start the engine, and run it until it stalls.
  3. After the engine stalls, crank it for five more seconds.
  4. Turn ignition switch OFF.
