Fuel Tank

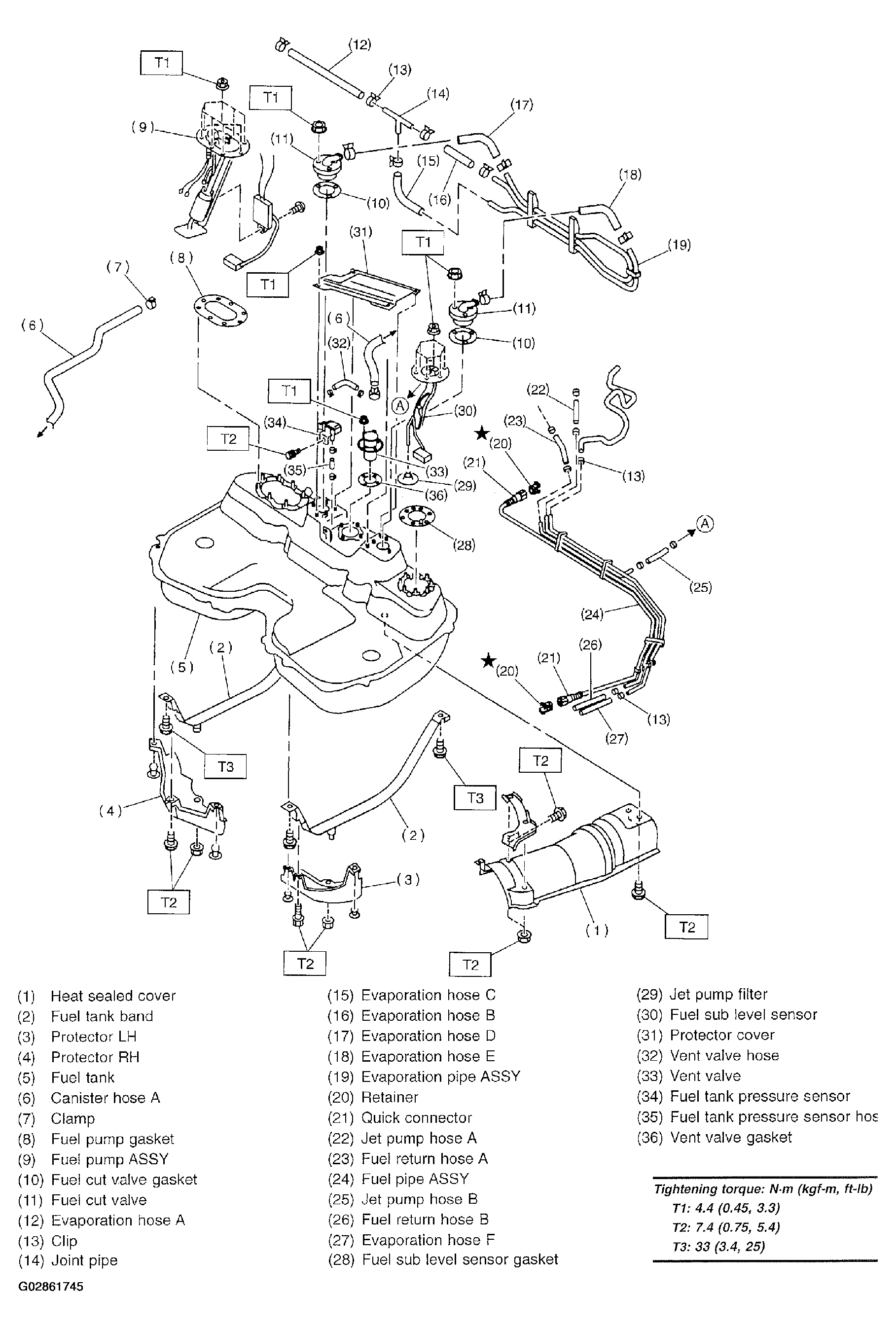

Fig 1: Identifying Fuel Tank Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
