Intake Air Temperature and Pressure Sensor: Installation

Install in the reverse order of removal.

Tightening torque: 3.4 N.m (0.35 kgf-m, 2.5 ft-lb)

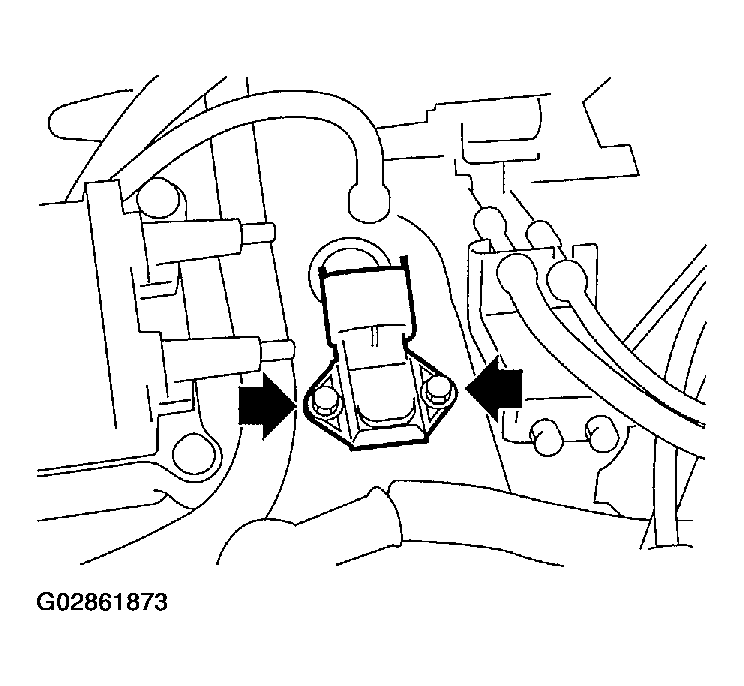

Fig 1: Installing Intake Air Temperature And Pressure Sensor

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Replace O-ring with a new one.

Fig 2: Replacing O-Ring

Courtesy of SUBARU OF AMERICA, INC.
