Intake Air Temperature and Pressure Sensor: Removal

Disconnect battery ground cable.

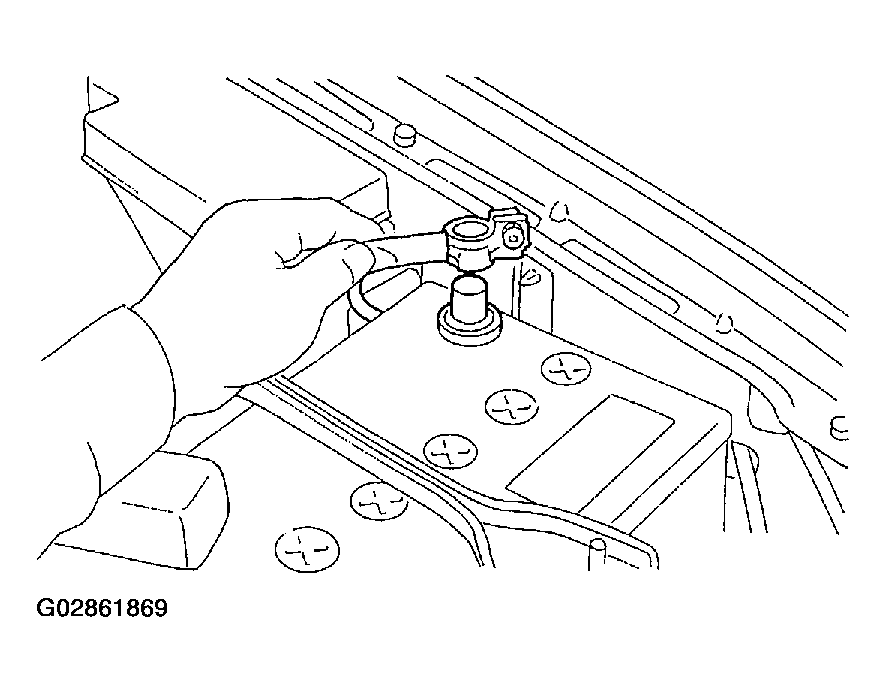

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect spark plug cord from ignition coil and ignitor assembly.

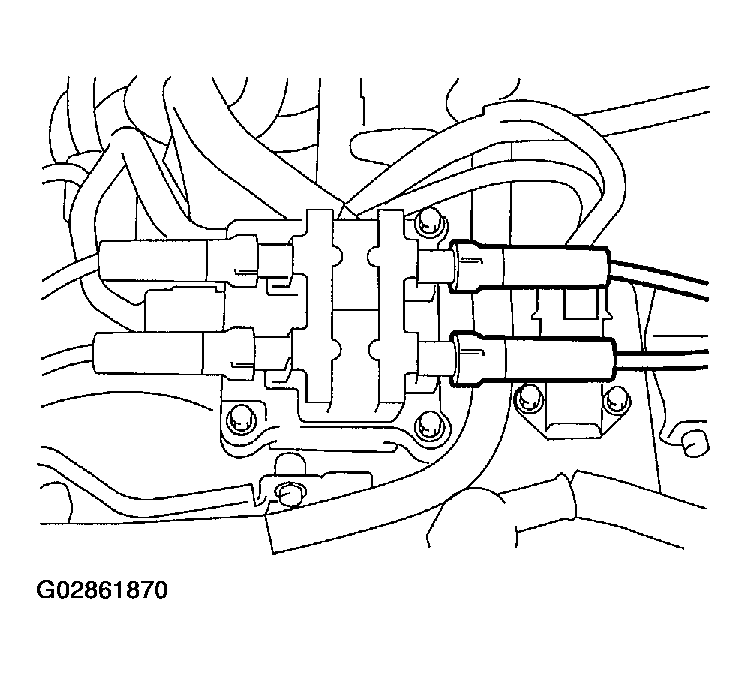

Fig 2: Disconnecting Spark Plug Cord From Ignition Coil And Ignitor Assembly
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from intake air temperature and pressure sensor.

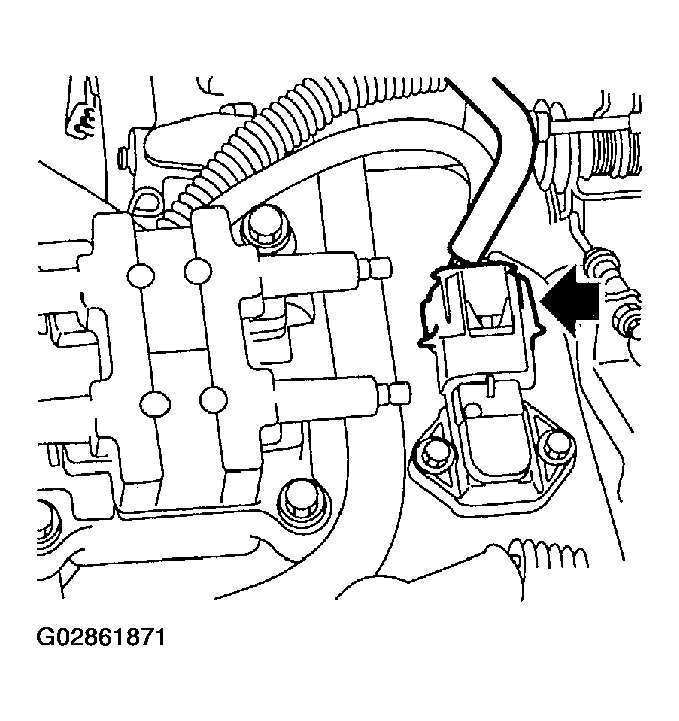

Fig 3: Disconnecting Connector From Intake Air Temperature And Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove intake air temperature and pressure sensor.

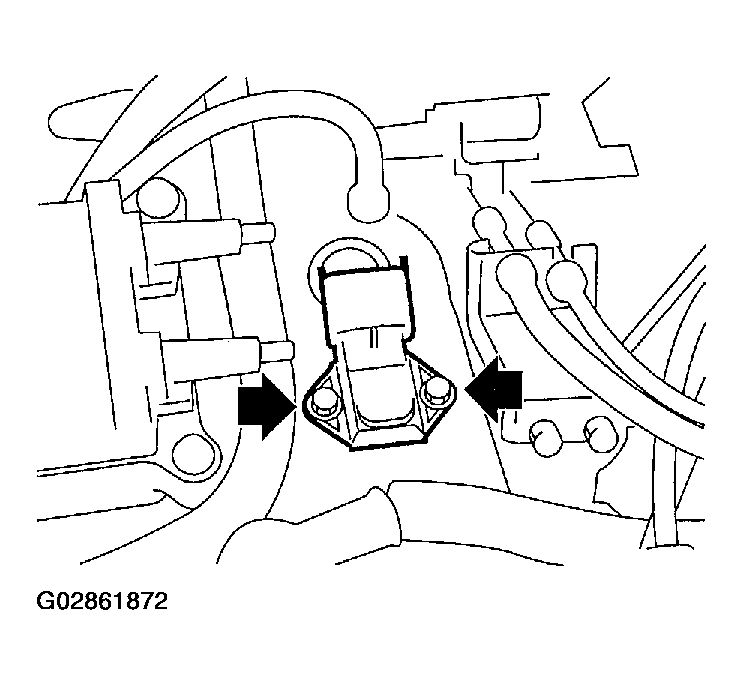

Fig 4: Removing Intake Air Temperature And Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.
