Roll Over Valve: Installation

Install in the reverse order of removal.

CAUTION:

Do not install top side of valve down.
Before installing bracket on body, securely fit concave part of bracket to hole in body.

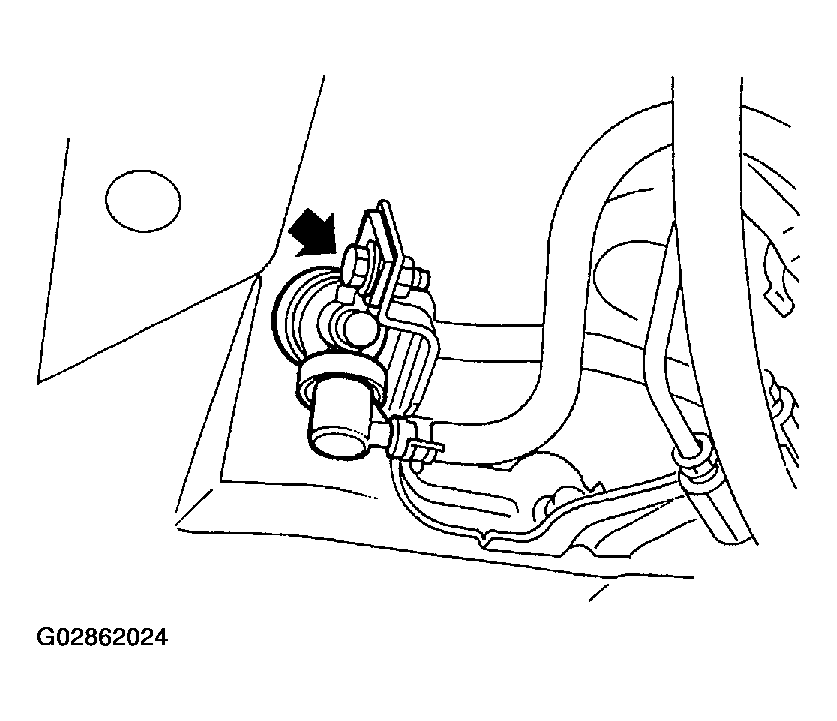

Fig 1: Installing Bracket On Body
Courtesy of SUBARU OF AMERICA, INC.

Connect hoses to roll over valve as shown in Figure.

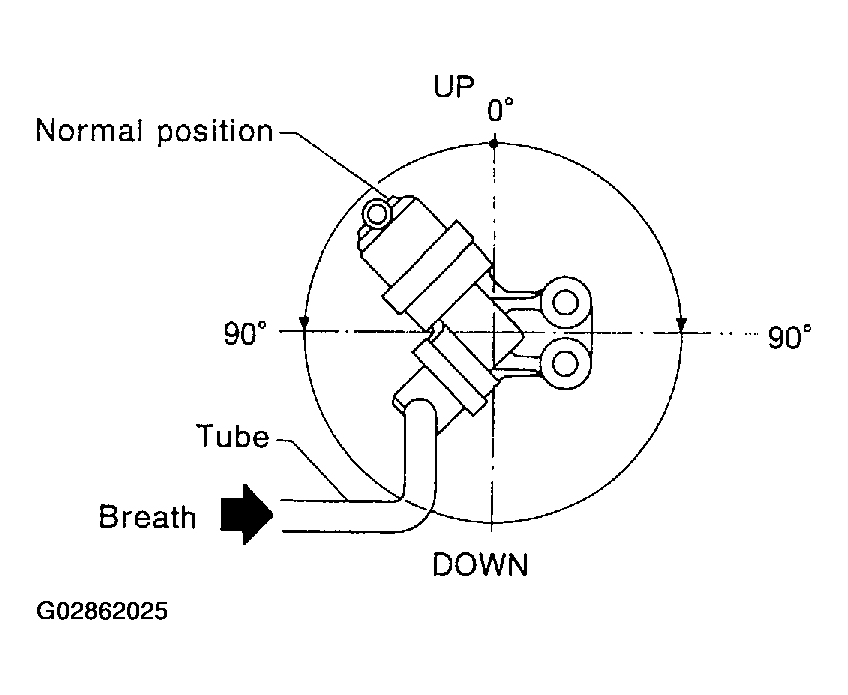

Fig 2: Connecting Hoses To Roll Over Valve
Courtesy of SUBARU OF AMERICA, INC.
While blowing through open end of hose, tilt valve at least 90° left and right from normal position.
Ensure that there is no air flow when hose is tilted greater than 90°.
