Roll Over Valve: Removal

  1. Lift-up the vehicle.
  2. Remove roll over valve from bracket.

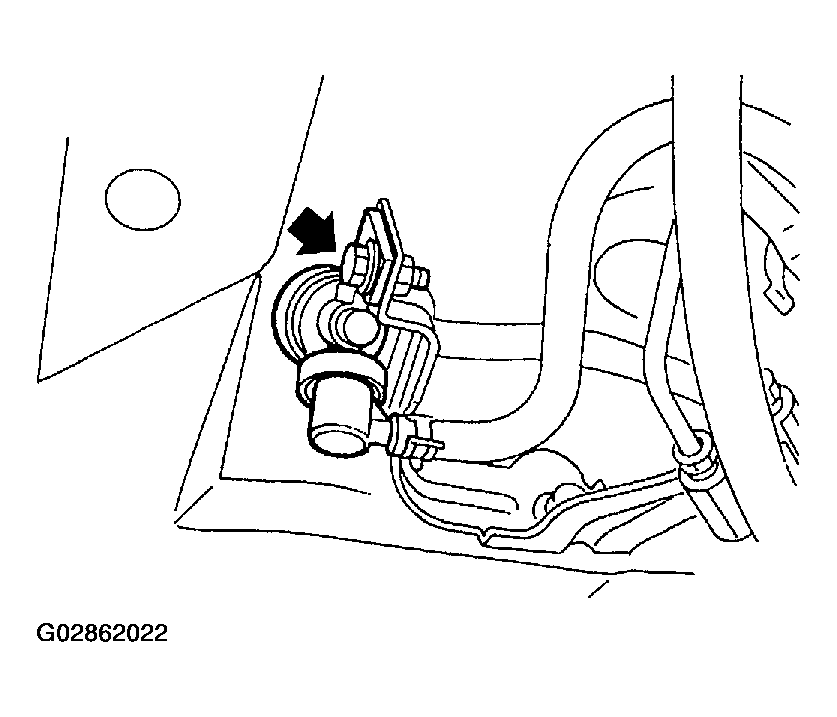

    Fig 1: Removing Roll Over Valve
    G02862022Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect hoses from roll over valve, and remove it from bracket.

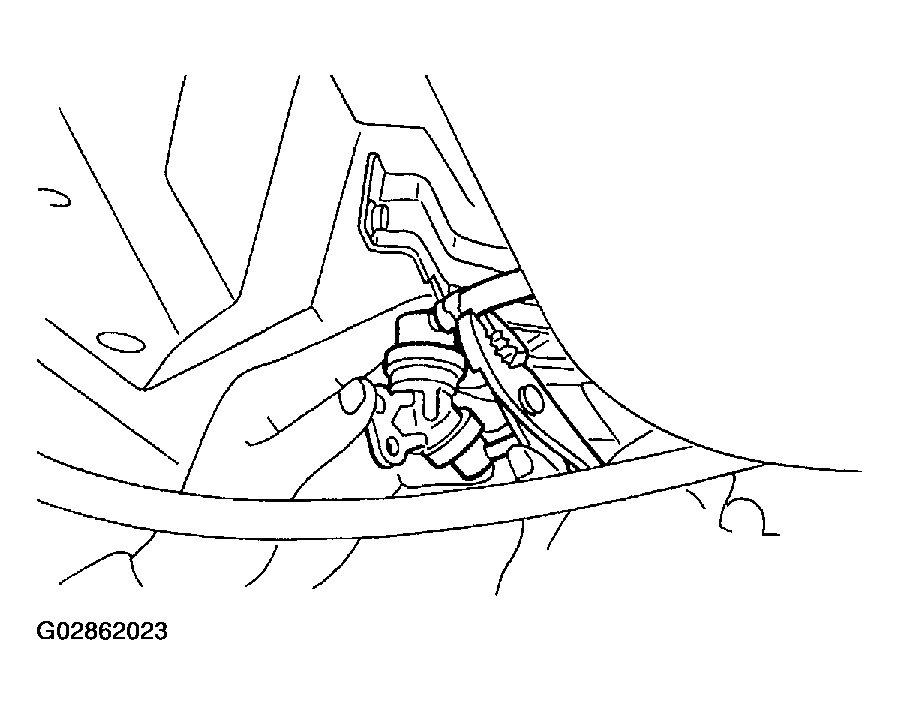

    Fig 2: Disconnecting Hoses From Roll Over Valve
    G02862023Courtesy of SUBARU OF AMERICA, INC.
