Throttle Body: Removal

Disconnect battery ground cable.

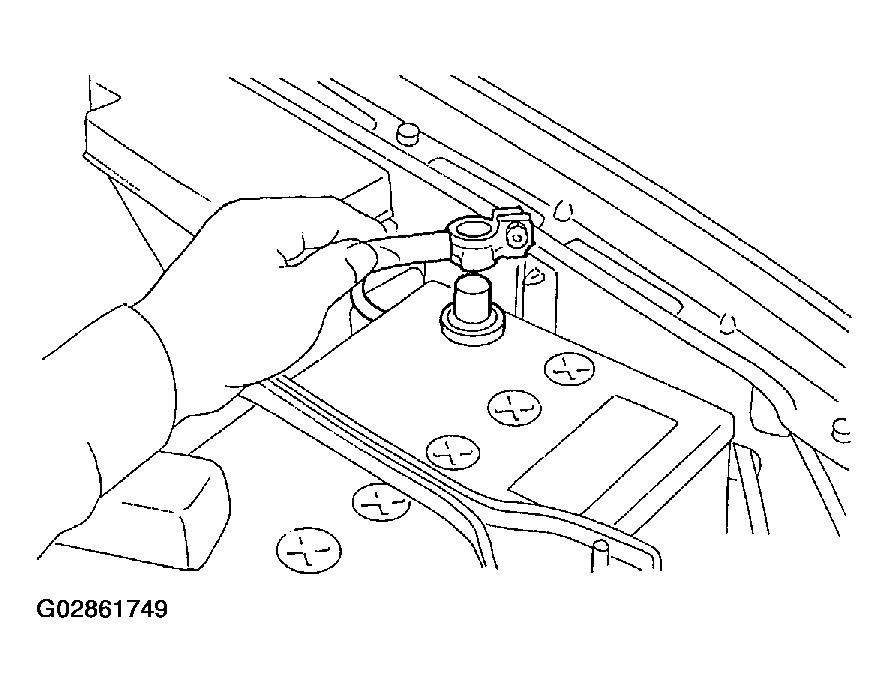

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner case. Refer to AIR CLEANER CASE .

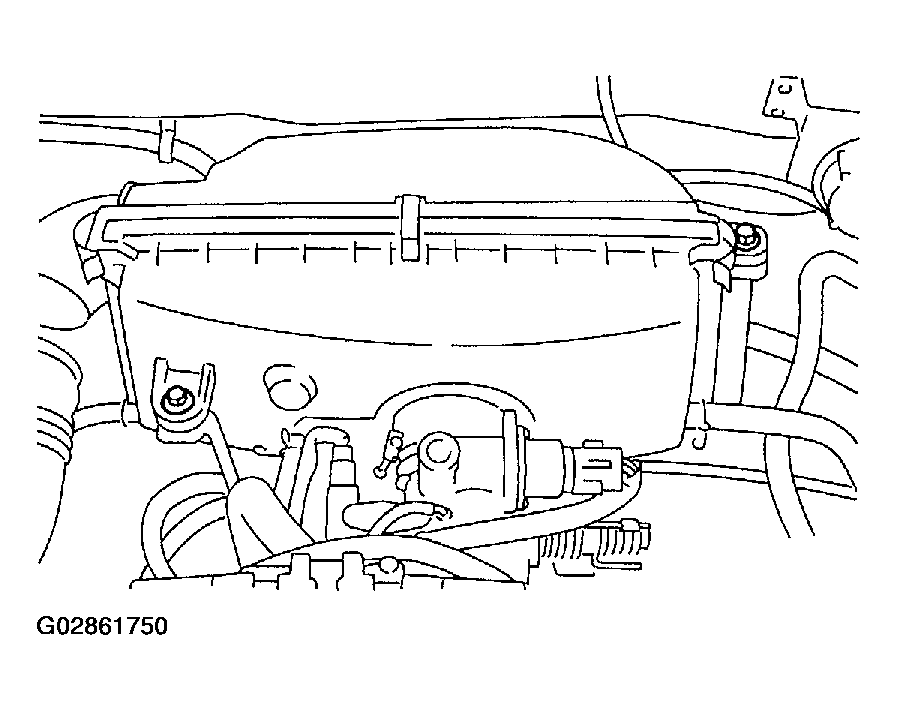

Fig 2: Removing Air Cleaner Case
Courtesy of SUBARU OF AMERICA, INC.
Disconnect accelerator cable (A).

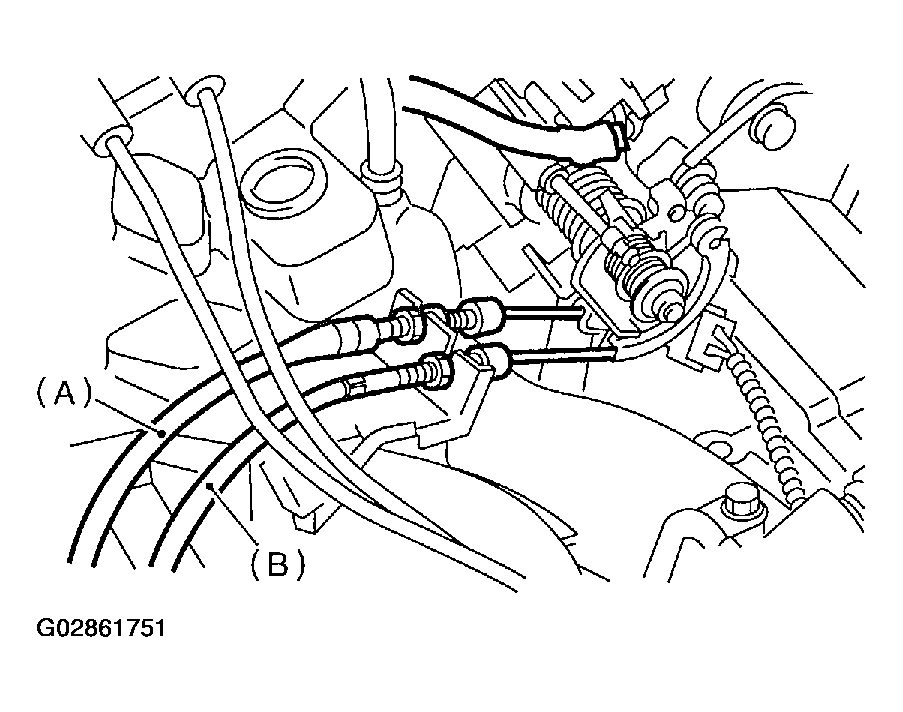

Fig 3: Disconnecting Accelerator Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect cruise control cable (B). (With cruise control model)
Disconnect connectors from idle air control solenoid valve, throttle position sensor.

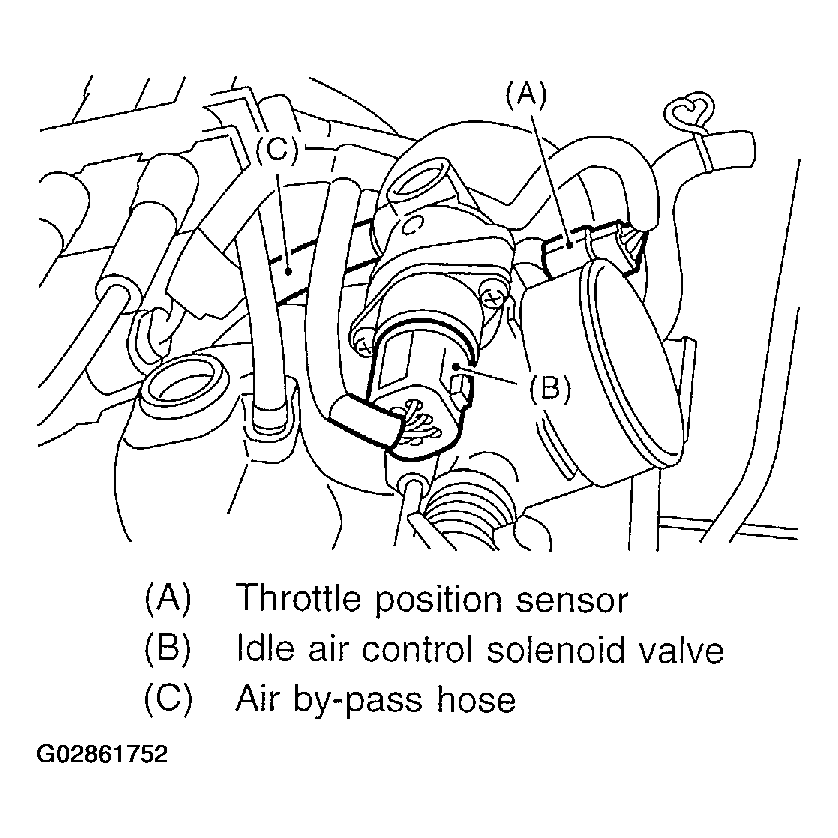

Fig 4: Disconnecting Connectors From Idle Air Control Solenoid Valve And Throttle Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect air by-pass hose from throttle body.
Disconnect engine coolant hoses from throttle body.

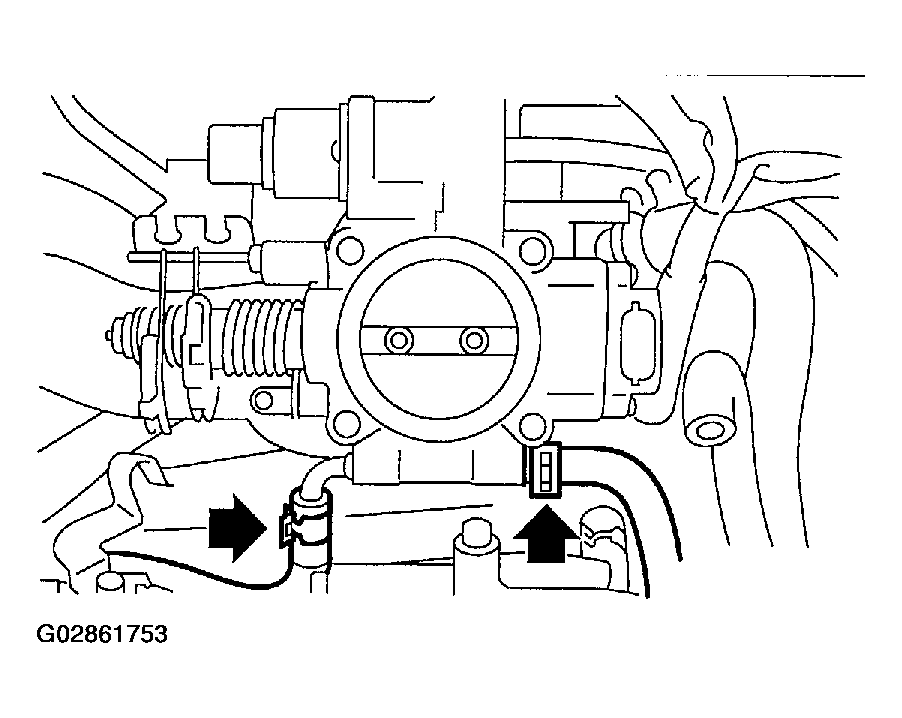

Fig 5: Disconnecting Engine Coolant Hoses
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which install throttle body to intake manifold
