Ignition Coil

NOTE: Ignition coil resistance is not measurable on Outback 3.0L. If vehicle does not start or ignition system failure is suspect, see BASIC DIAGNOSTIC PROCEDURES article.

IGNITION COIL RESISTANCE

Application

⁽¹⁾ Primary

⁽²⁾ Secondary

2.0L & 2.5L

0.73 Ohms ± 10%

12.8 k/Ohms ± 15%

⁽¹⁾	Checked between ignition coil and ignitor assembly connector terminals No. 1 and No. 2 and terminals No. 2 and No. 4. See Fig 1.

⁽²⁾	Check between ignition coil secondary terminals A and B, and terminals C and D. See Fig 2.

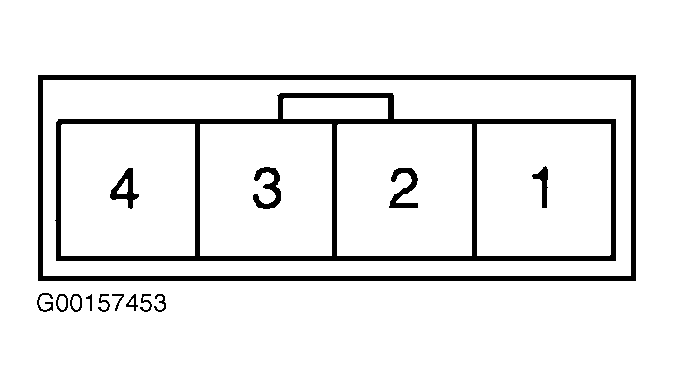

Fig 1: Identifying Primary Ignition Coil Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

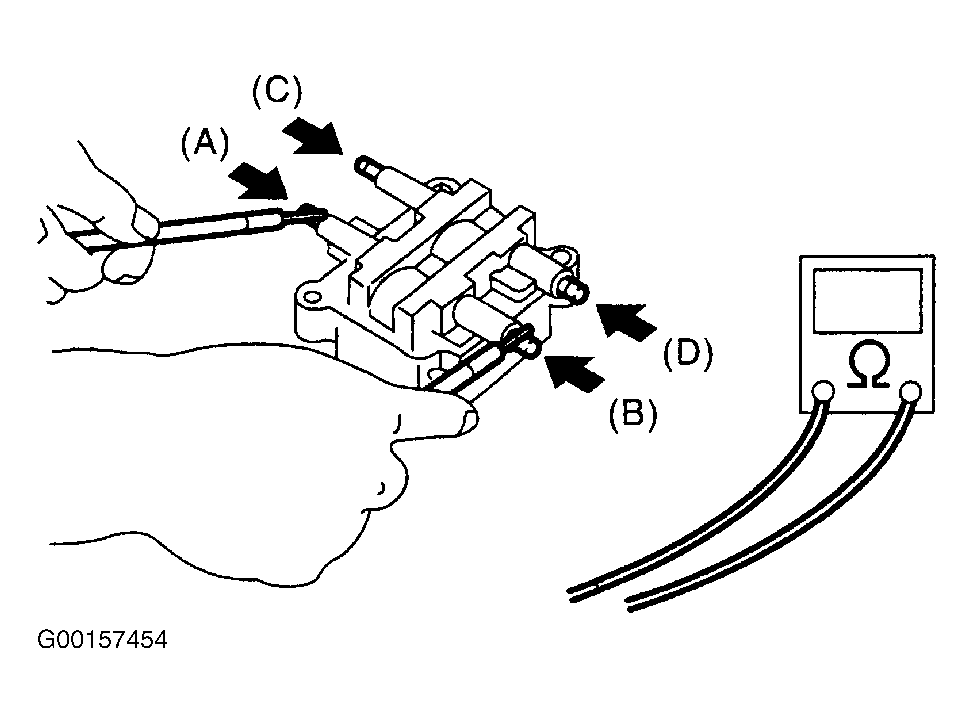

Fig 2: Identifying Secondary Ignition Coil Terminals

Courtesy of SUBARU OF AMERICA, INC.
