Engine Control Module Location

On all models, Engine Control Module is located below glove box, under right side of dash. See Fig 1.

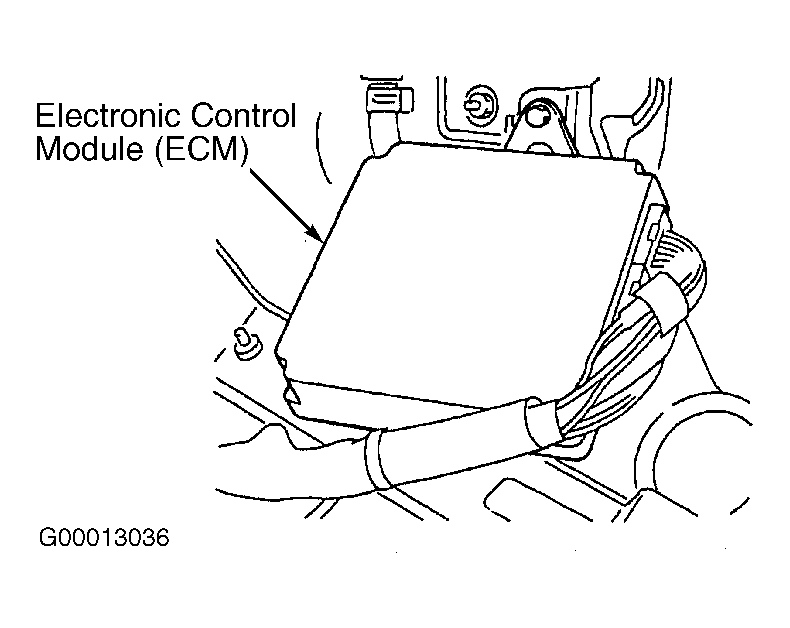

Fig 1: Locating Engine Control Module Under Right Side Of Dash
G00013036Courtesy of SUBARU OF AMERICA, INC.
