Vacuum Diagrams: Introduction

This article contains underhood views of vacuum hose routing. Use these vacuum diagrams during the visual inspection in BASIC DIAGNOSTIC PROCEDURES article. This will assist in identifying improperly routed vacuum hoses which cause driveability and/or computer-indicated malfunctions.

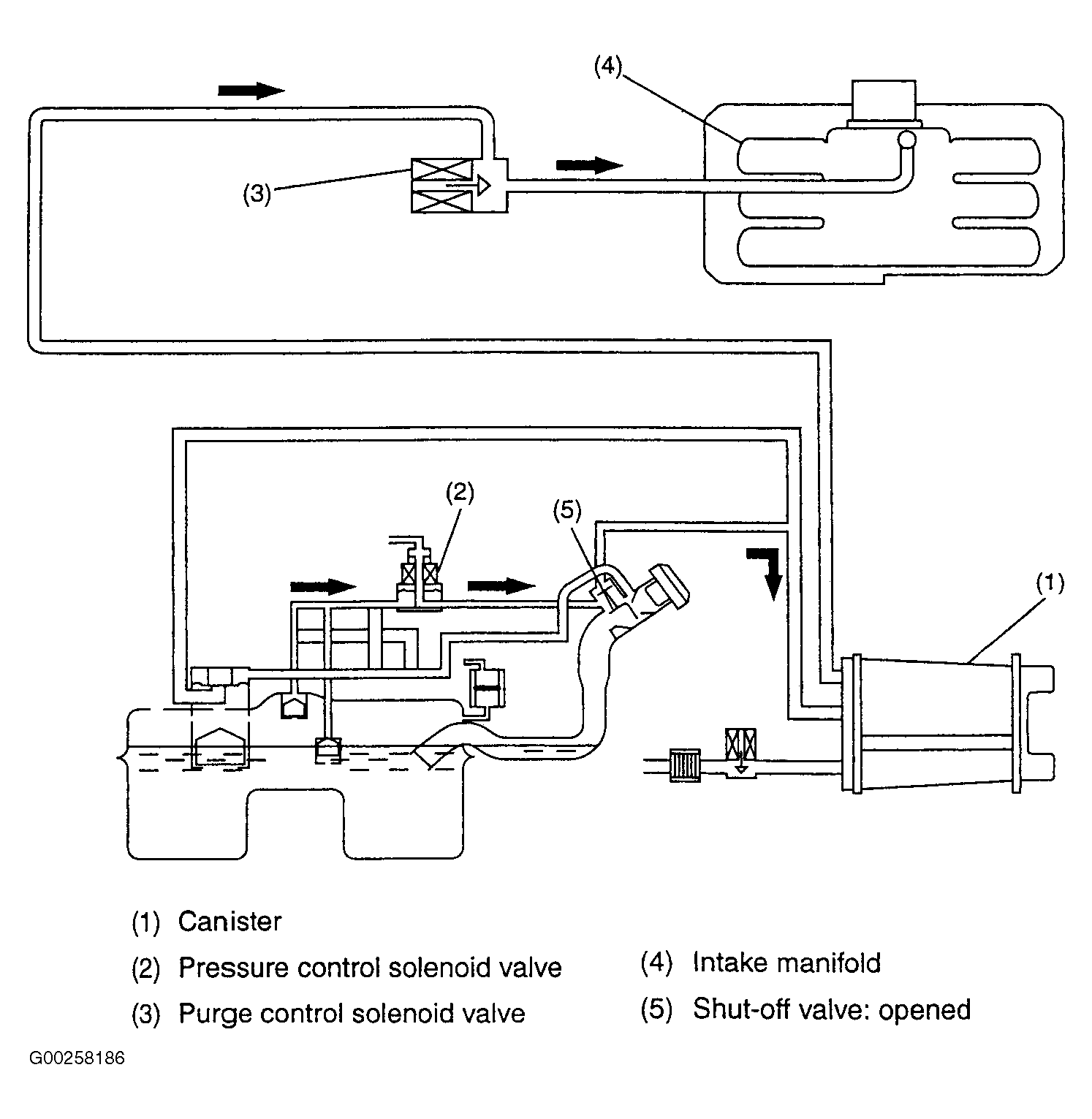

Fig 1: ORVR System (Forester - 1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

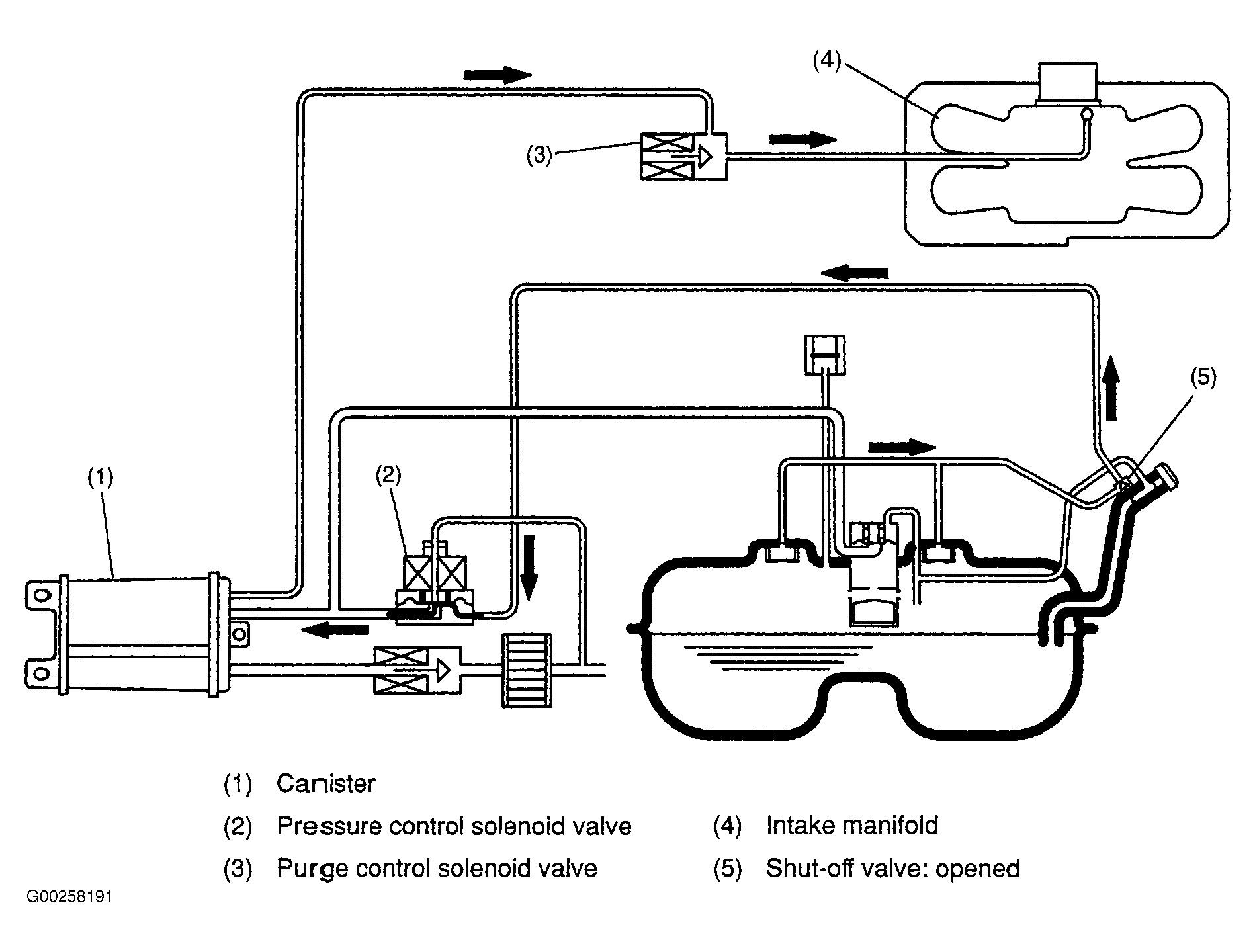

Fig 2: ORVR System (Forester - 2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

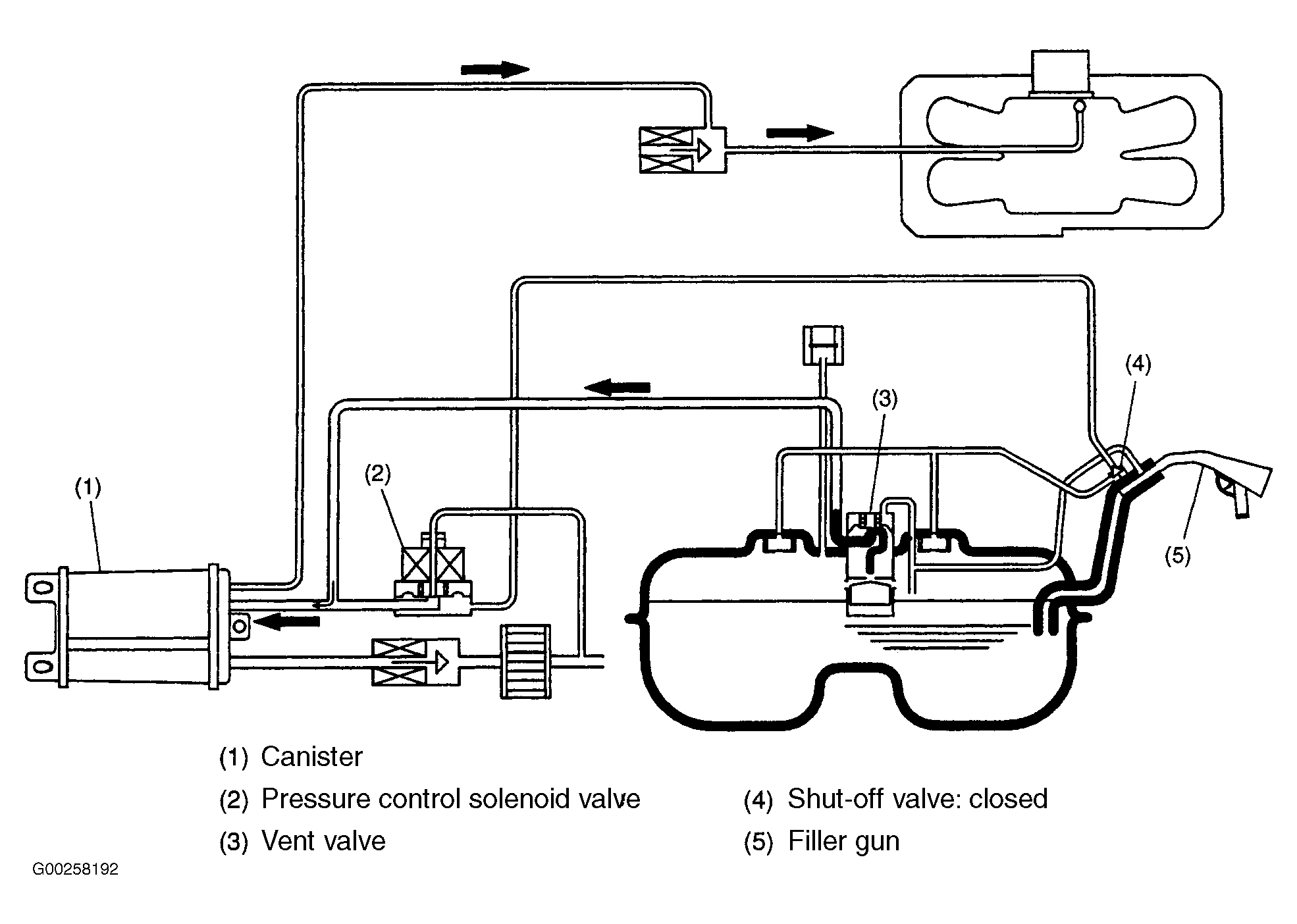

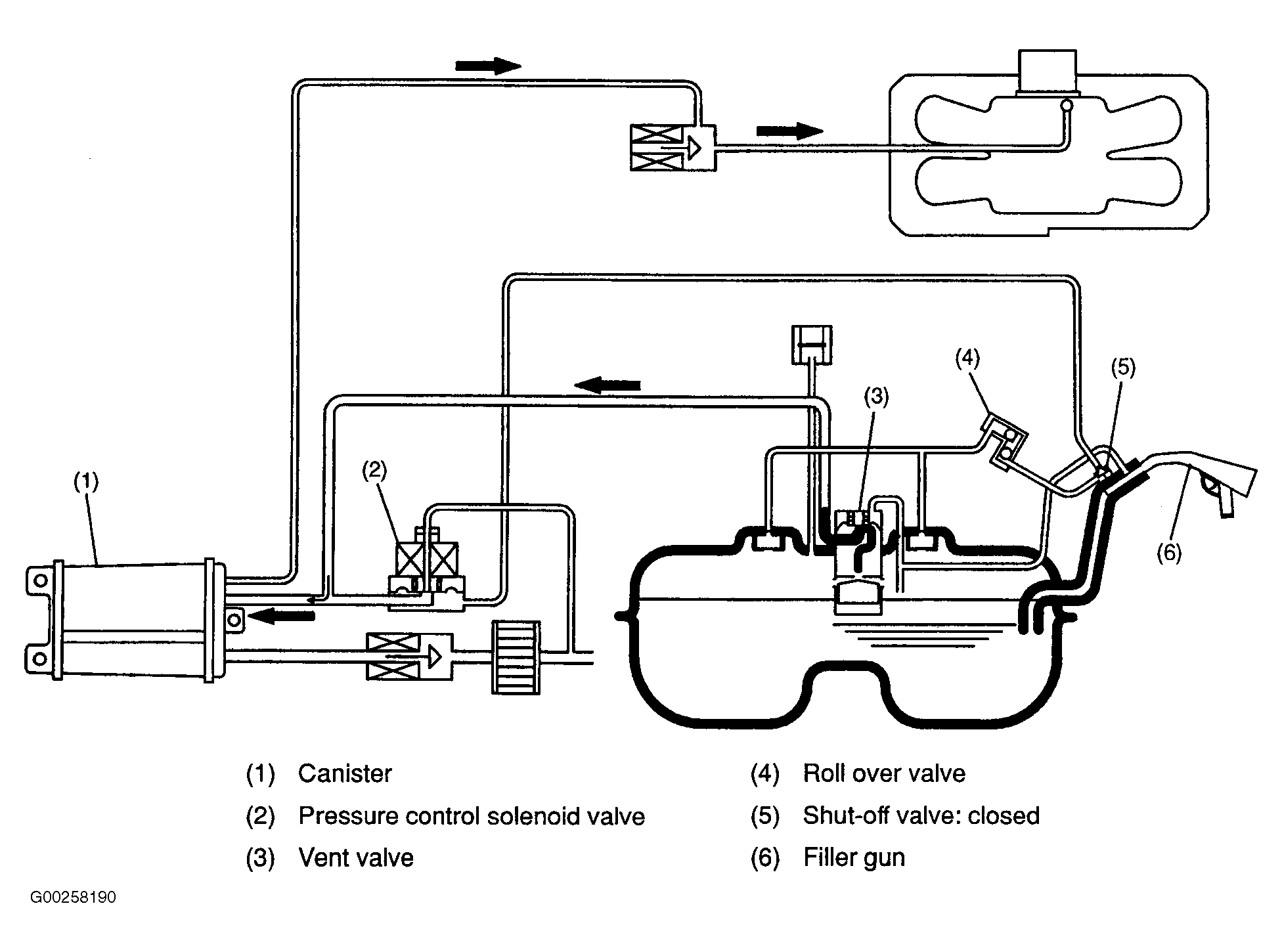

Fig 3: ORVR System (Impreza - 1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

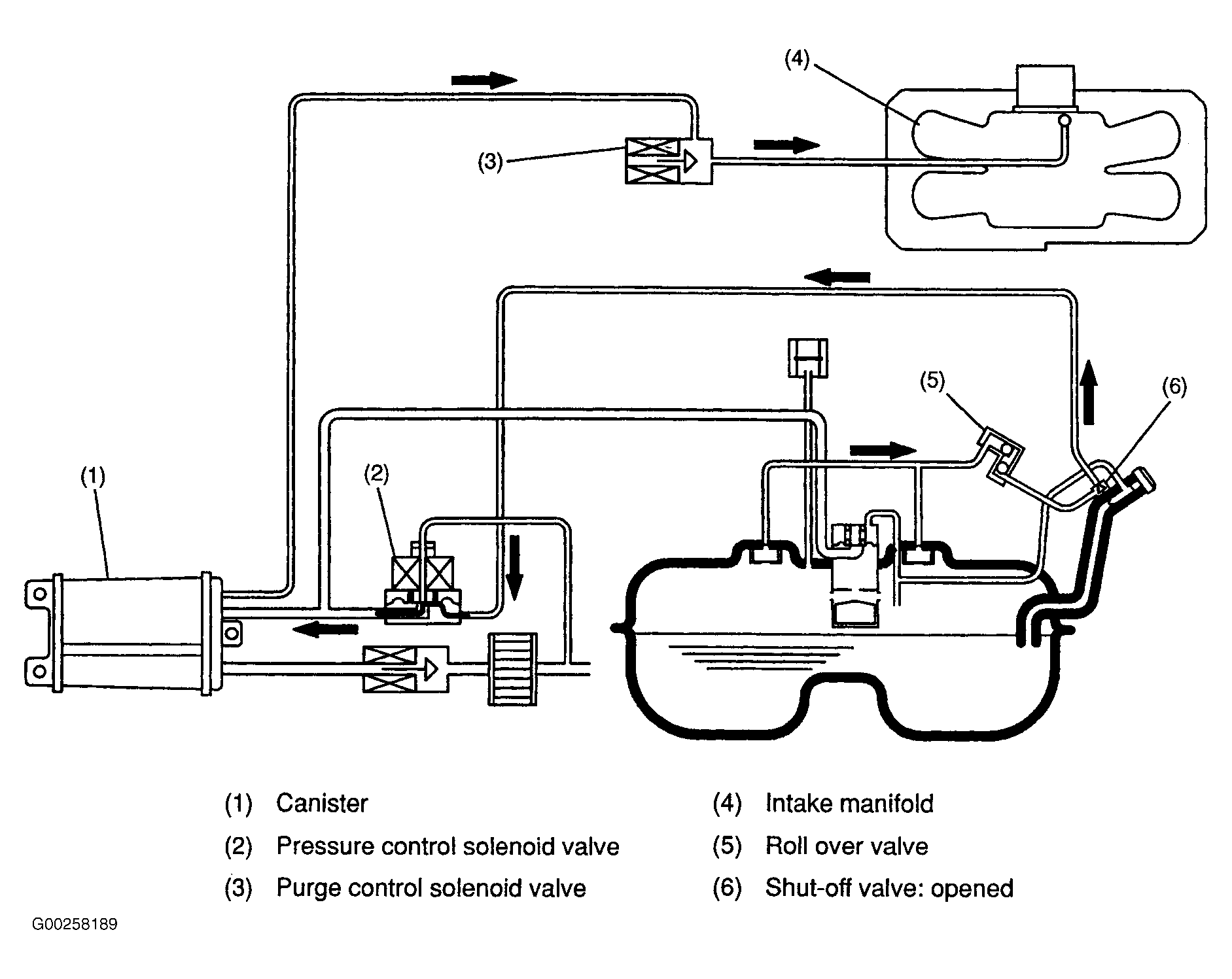

Fig 4: ORVR System (Impreza - 2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

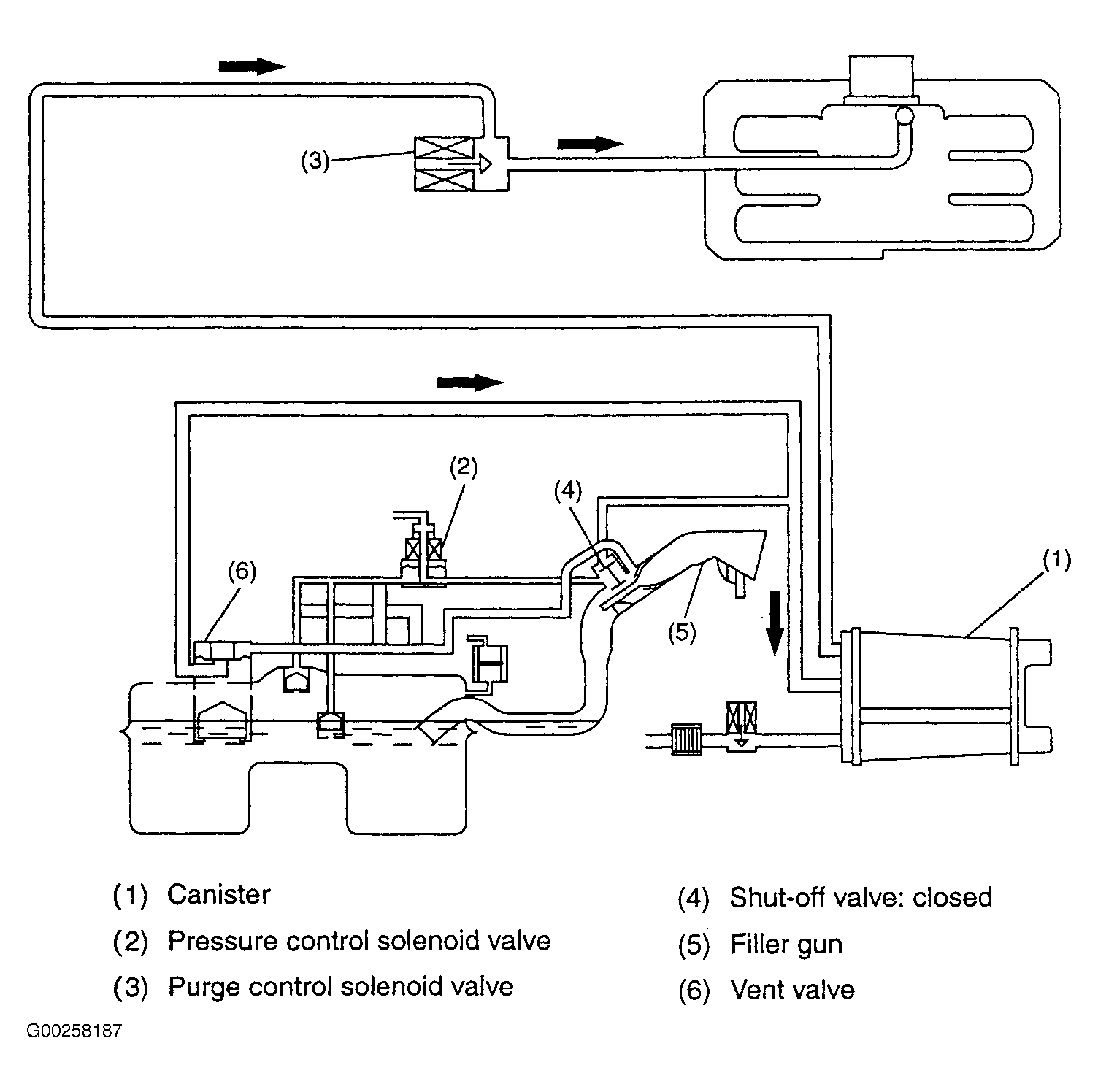

Fig 5: ORVR System (Legacy & Outback 2.5L - 1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

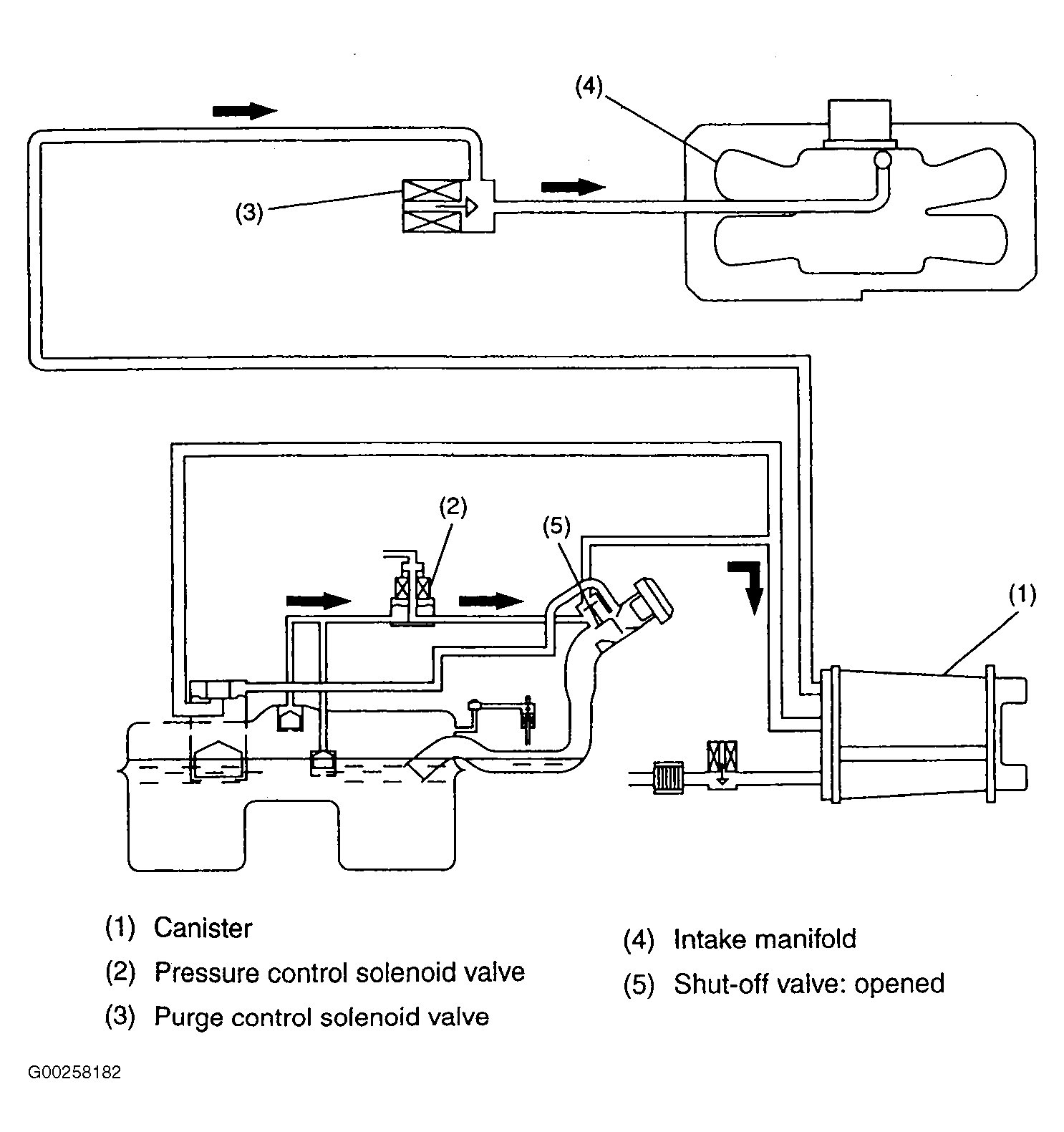

Fig 6: ORVR System (Legacy & Outback 2.5L - 2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

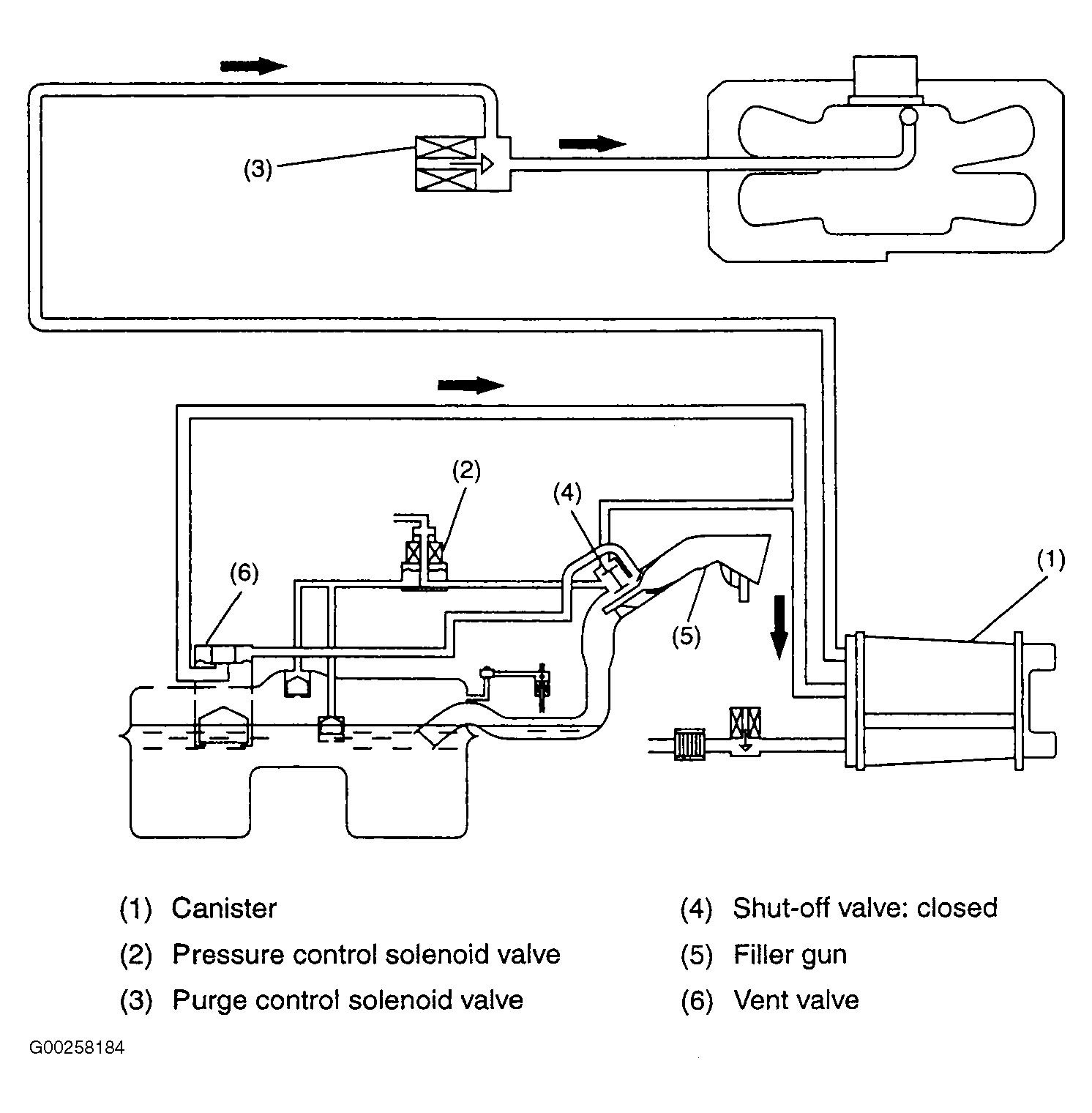

Fig 7: ORVR System (Outback 3.0L - 1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: ORVR System (Outback 3.0L - 2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

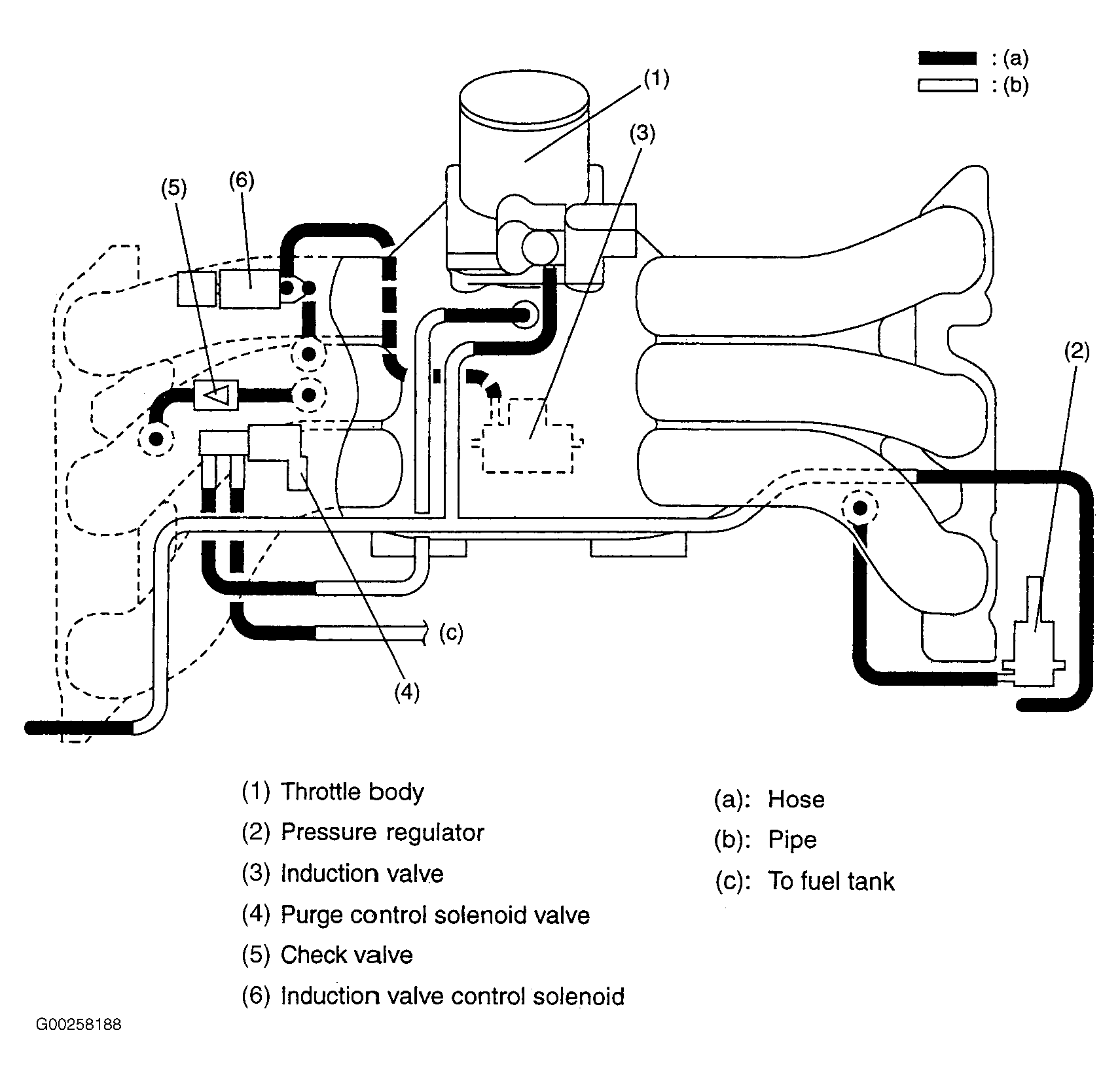

Fig 9: Vacuum Diagram (Forester, Legacy & Outback 2.5L)

Courtesy of SUBARU OF AMERICA, INC.

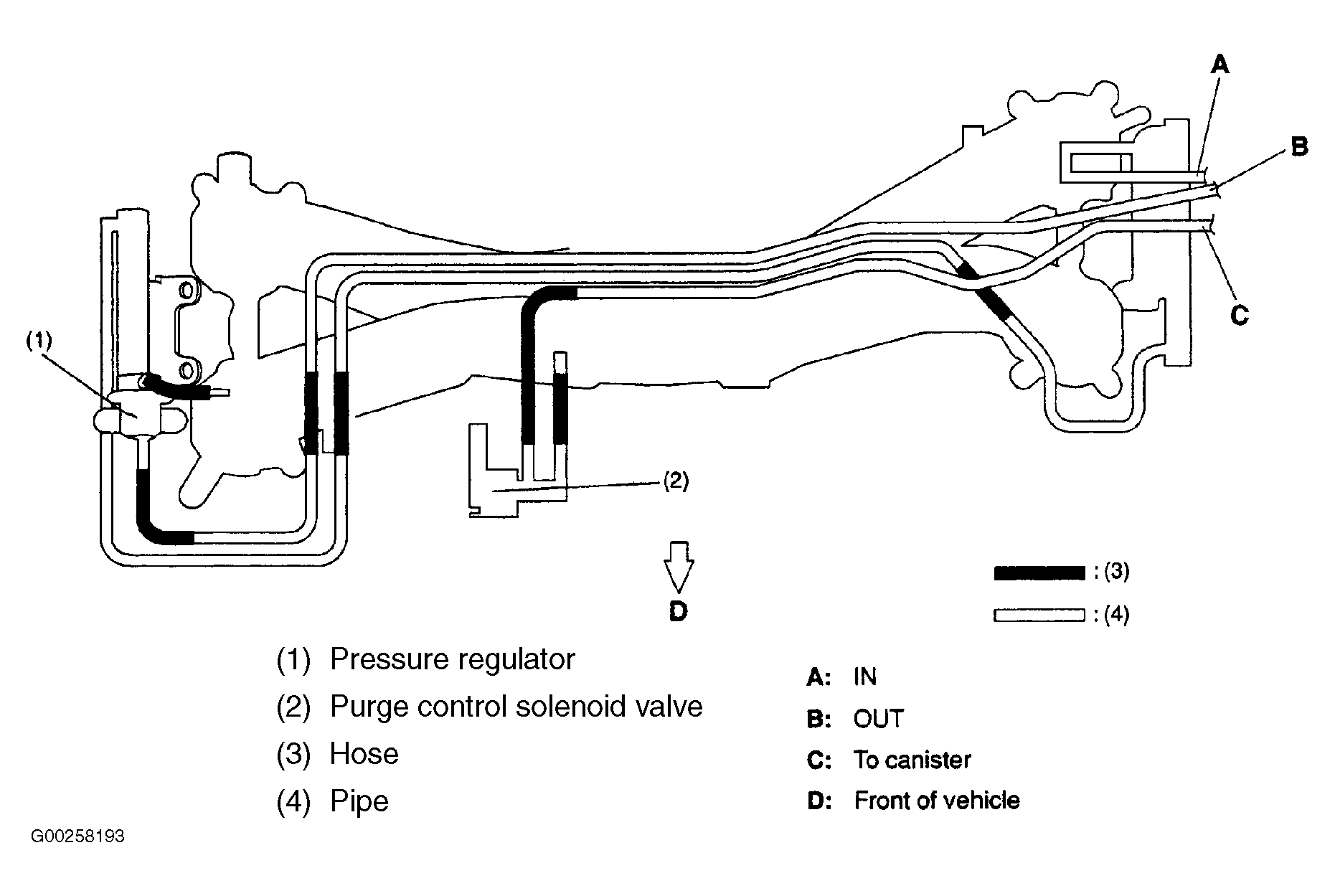

Fig 10: Vacuum Diagram (Impreza)

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Vacuum Diagram (Outback 3.0L)

Courtesy of SUBARU OF AMERICA, INC.
