Identification & Specifications: Specifications: Dimensions

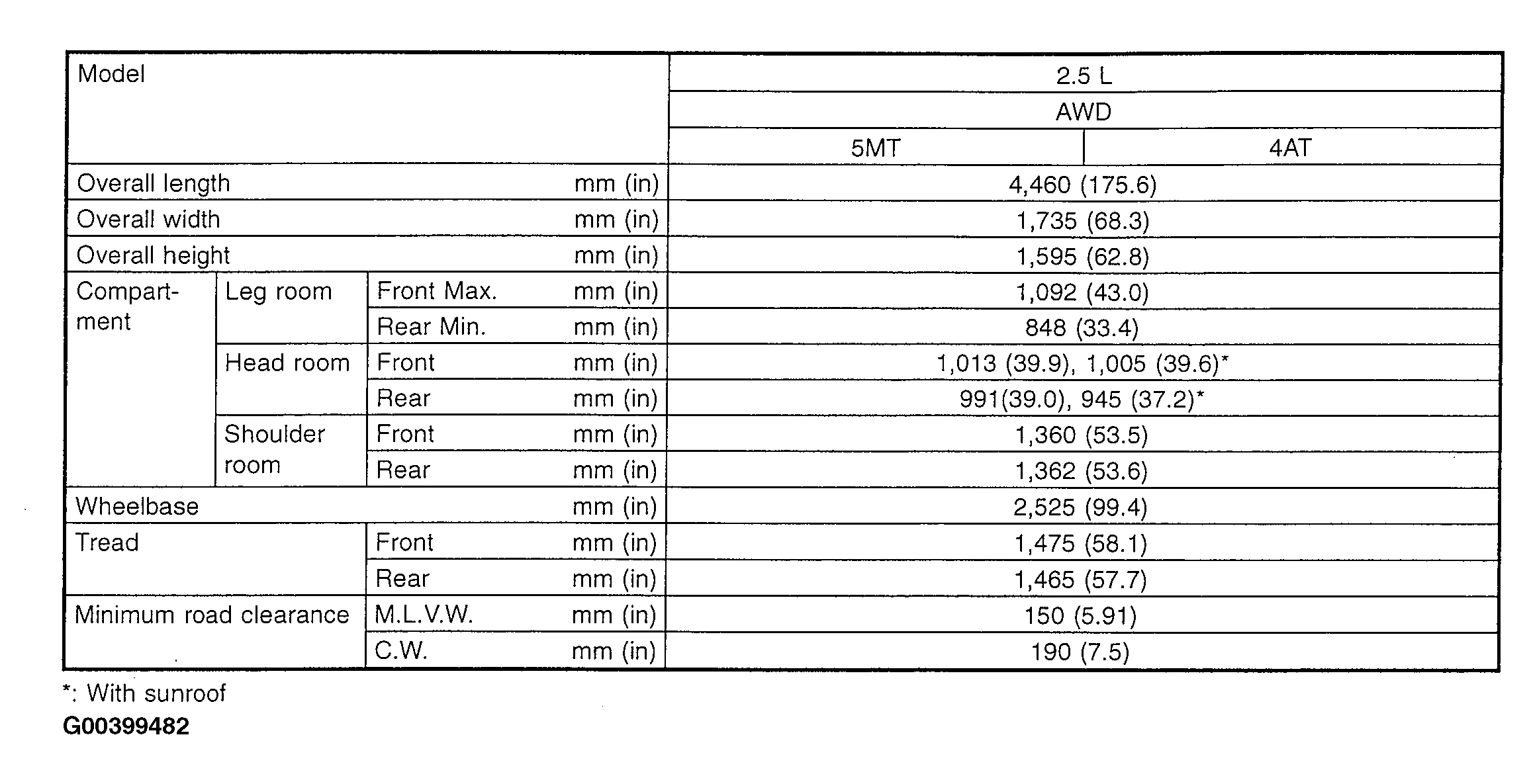

Fig 1: Dimension Specifications Chart

G00399482

Courtesy of SUBARU OF AMERICA, INC.
