Steering Wheel And Column

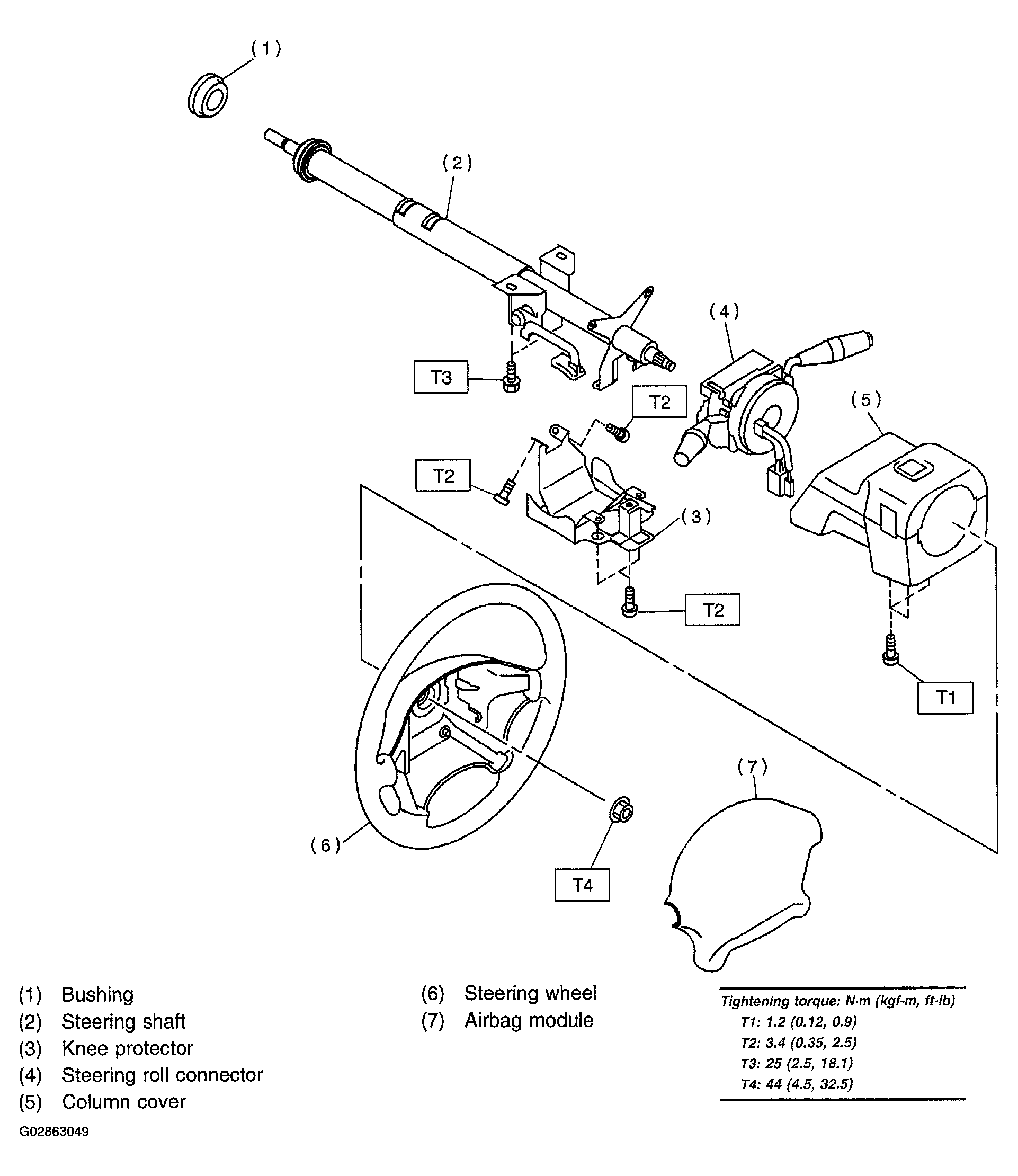

Fig 1: Identifying Steering Wheel & Column Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
