- Install bracket on engine.
- Tightening torque:
22 N.m (2.2 kgf-m, 15.9 ft-lb)
- Install oil pump on oil tank as follows outside the vehicle.
NOTE:
Prior to installation, make sure that all oil is removed from oil pump, oil tank and pipe.
- Place oil pump in a vise and install stay to oil pump.
CAUTION:
Do not place oil pump directly in vise; use soft pads and hold oil pump lightly to protect it.
- Tightening torque:
15.7 N.m (1.60 kgf-m, 11.6 ft-lb)

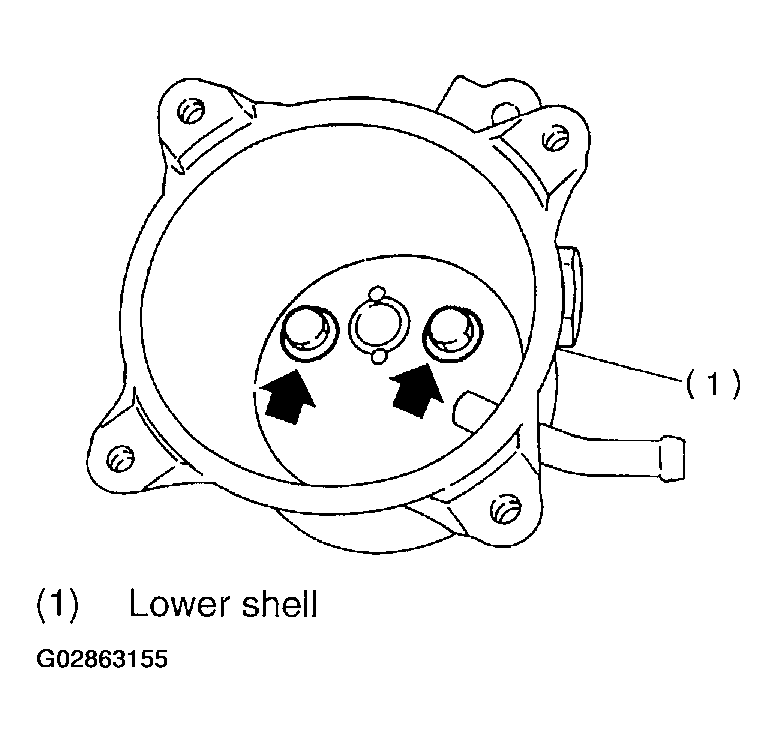

- Install lower shell to oil pump.
- Tightening torque:
18 N.m (1.8 kgf-m, 13.0 ft-lb)
CAUTION:
Be sure to use a new seal washer.
Courtesy of SUBARU OF AMERICA, INC.

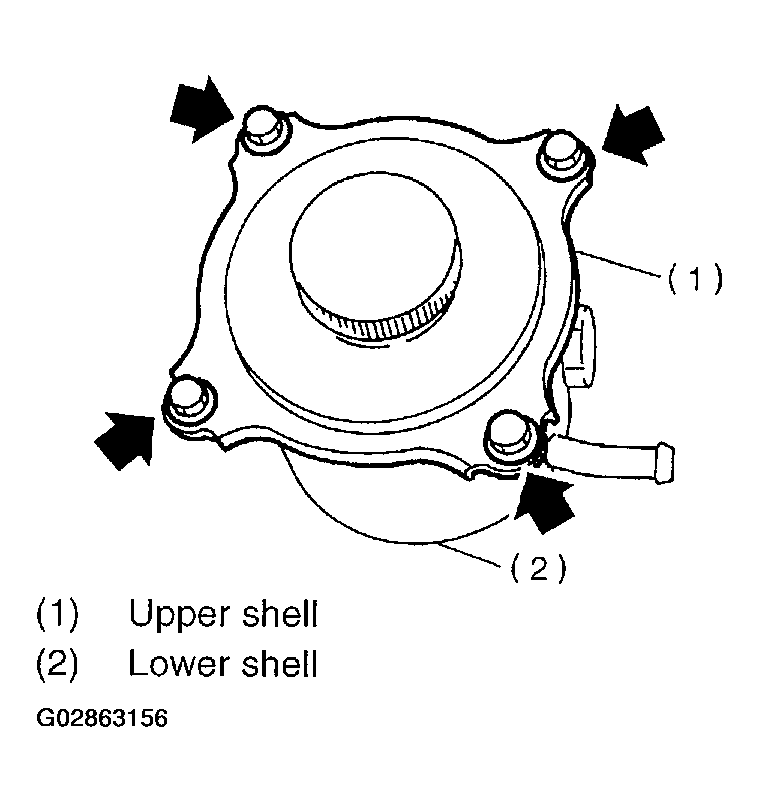

- Install upper shell and baffle to lower shell.
- Tightening torque:
13 N.m (1.3 kgf-m, 9.4 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.

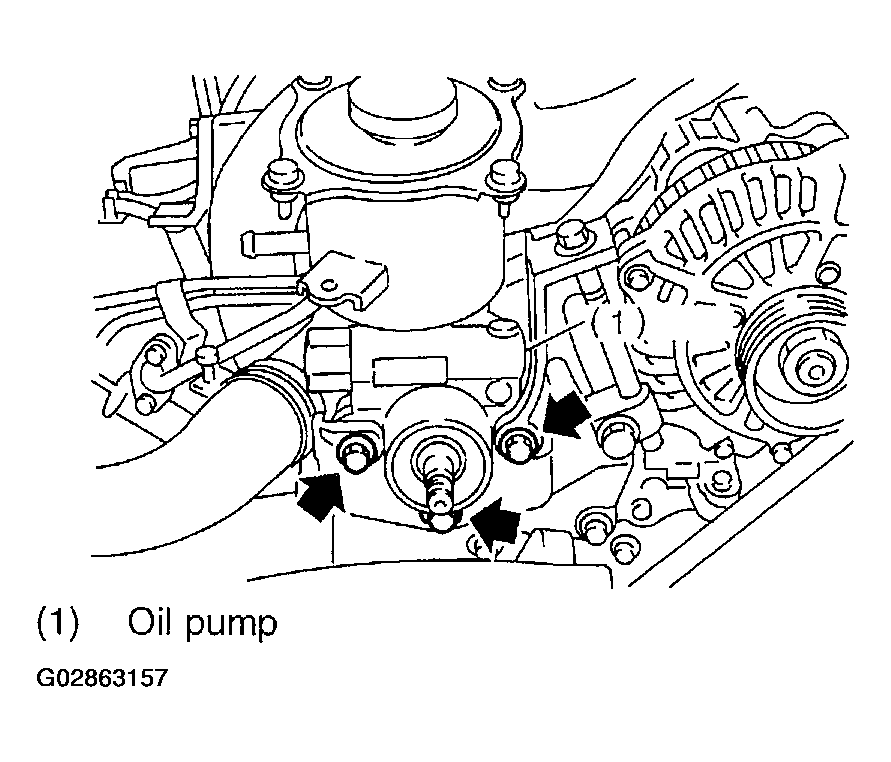

- Install oil pump, previously assembled to oil tank, on bracket.
- Tightening torque:
18 N.m (1.8 kgf-m, 13.0 ft-lb)
Courtesy of SUBARU OF AMERICA, INC.
- Install in the reverse order of removal.
- Inspect pulley belt tension. Refer to
INSPECTION
, V-belt.
- Feed the specified power steering fluid. Refer to
POWER STEERING FLUID
.
CAUTION:
Never start the engine before feeding the fluid; otherwise vane pump might be seized up.
