Steering Gearbox: Adjustment

  1. Adjust front toe.
    1. Standard of front toe:  IN 3 - OUT 3 mm (IN 0.12 - OUT 0.12 in)

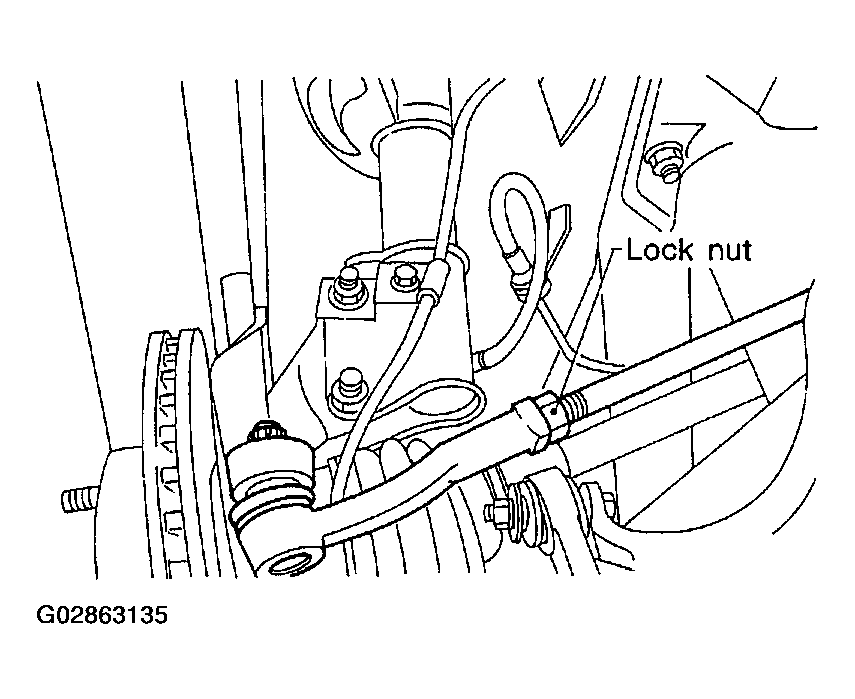

    Fig 1: Adjusting Front Toe
    G02863135Courtesy of SUBARU OF AMERICA, INC.
  2. Adjust steering angle of wheels.

    Standard of steering angle:

    1. Inner wheel:  34.4° +/- 1.5°
    2. Outer wheel:  30.2° +/- 1.5°
