Service Limit

Make a measurement as follows. If it exceeds the specified service limit, adjust or replace.

NOTE: When making a measurement, vise gearbox by using ST. Never vise gearbox by inserting aluminum plates, etc. between vise and gearbox.

ST 926200000 STAND

Sliding resistance of rack shaft:

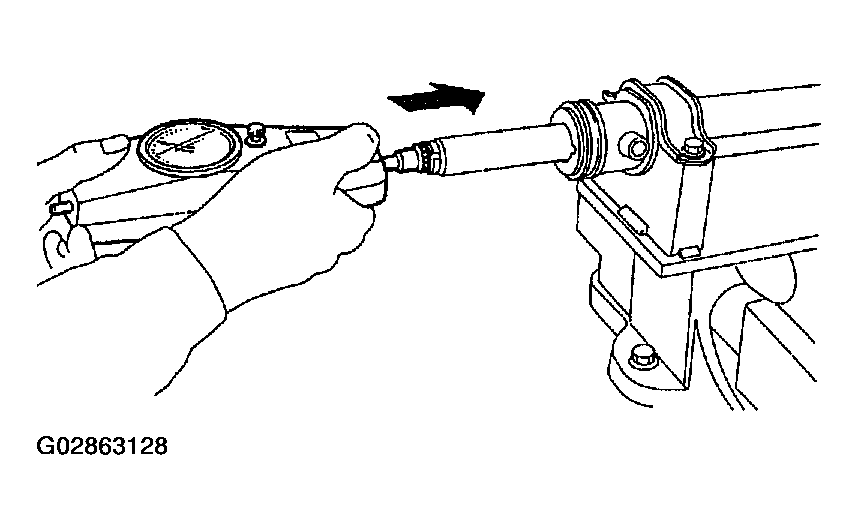

Fig 1: Sliding Resistance Of Rack Shaft (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

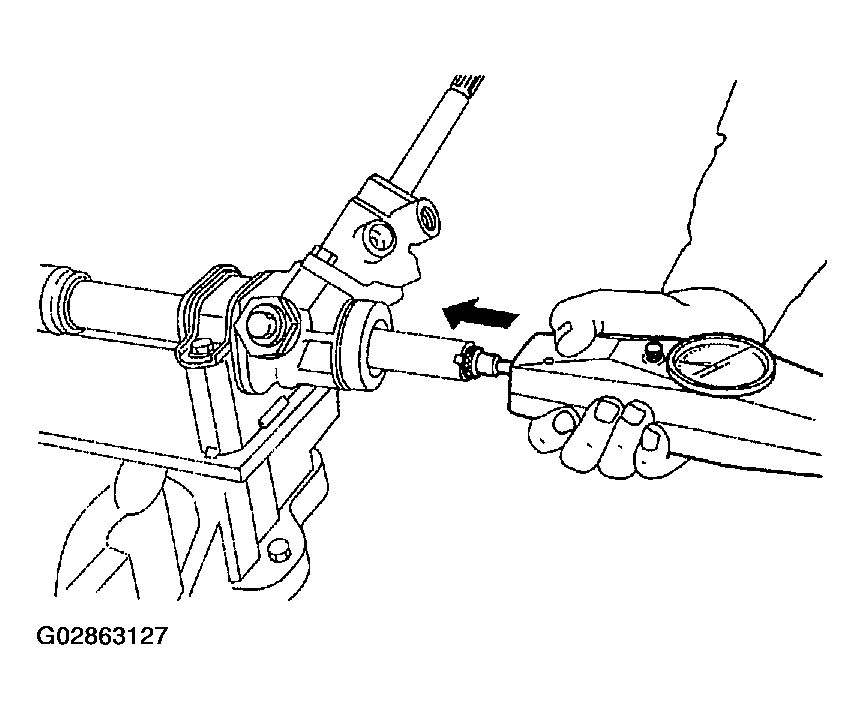

Fig 2: Sliding Resistance Of Rack Shaft (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
